Search › Model › KB9T
KB9T

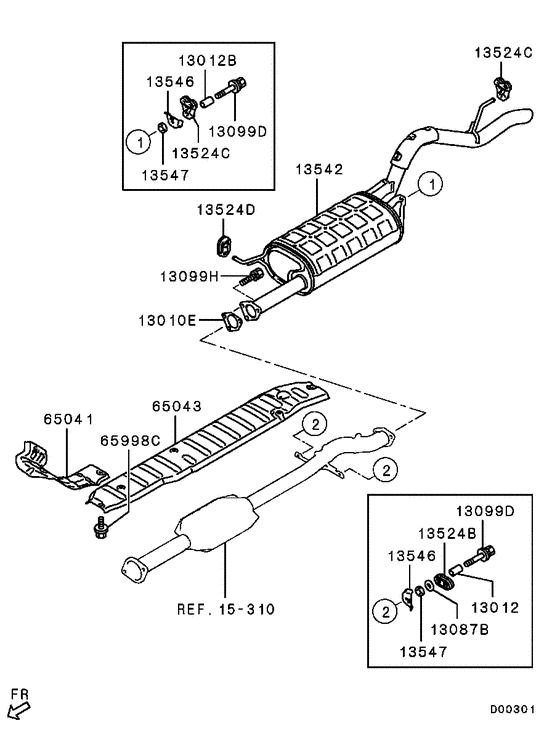

Exhaust pipe & muffler 12
| # | OEM | Part name |
|---|---|---|
| 13010 | MB687013 | GASKET, EXHAUST PIPE |
| 13012 | MB549177 | COLLAR, EXHAUST PIPE |
| 13087 | MF450154 | WASHER, ENG FR MOUNTING - Plain,8 |
| 13099 | MF243660 | BOLT, RADIATOR - Washer assembled,8x45 |
| 13099 | MF241286 | BOLT, COOLING FAN - Washer assembled,10x35 |
| 13524 | MR431633 | HANGER, EXHAUST MUFFLER |
| 13524 | MB906124 | HANGER, EXHAUST MUFFLER |
| 13546 | MB431942 | PROTECTOR, EXHAUST MUFFLER HANGER |
| 13547 | MB651931 | SEAT, EXHAUST MUFFLER HANGER |
| 65041 | MN146820 | PROTECTOR, UNDER FR FLOOR HEAT, FR |
| 65043 | MN146821 | PROTECTOR, UNDER FLOOR HEAT, CTR |
| 65998 | MS100221 | BOLT, RADIATOR SHROUD - Flange,6x12 |
| OEM | Part name | Category |
|---|---|---|
| MB431942 | PROTECTOR, EXHAUST MUFFLER HANGER | Exhaust pipe & muffler |
| MB549177 | COLLAR, EXHAUST PIPE | Exhaust pipe & muffler |
| MB651931 | SEAT, EXHAUST MUFFLER HANGER | Exhaust pipe & muffler |
| MB687013 | GASKET, EXHAUST PIPE | Exhaust pipe & muffler |
| MB906124 | HANGER, EXHAUST MUFFLER | Exhaust pipe & muffler |
| MF241286 | BOLT, COOLING FAN - Washer assembled,10x35 | Exhaust pipe & muffler |
| MF243660 | BOLT, RADIATOR - Washer assembled,8x45 | Exhaust pipe & muffler |
| MF450154 | WASHER, ENG FR MOUNTING - Plain,8 | Exhaust pipe & muffler |
| MN146820 | PROTECTOR, UNDER FR FLOOR HEAT, FR | Exhaust pipe & muffler |
| MN146821 | PROTECTOR, UNDER FLOOR HEAT, CTR | Exhaust pipe & muffler |
| MR431633 | HANGER, EXHAUST MUFFLER | Exhaust pipe & muffler |
| MS100221 | BOLT, RADIATOR SHROUD - Flange,6x12 | Exhaust pipe & muffler |
