Search › Model › KB9T
KB9T

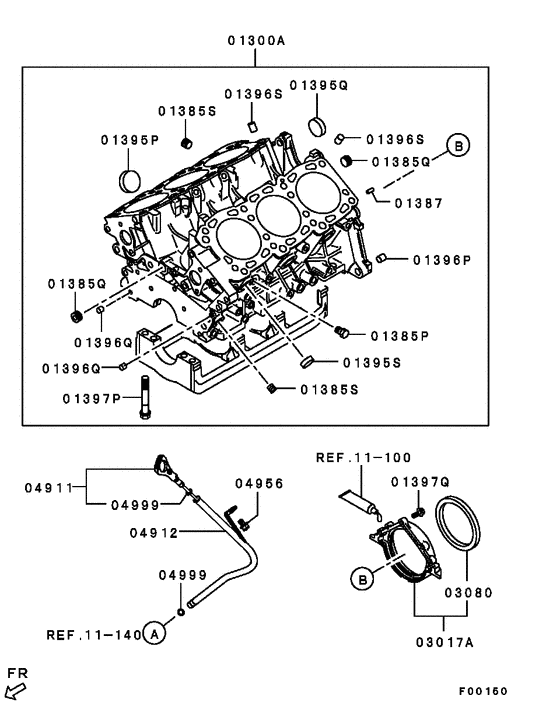

Cylinder block 18
| # | OEM | Part name |
|---|---|---|
| 1300 | MR984401 | BLOCK ASSY, CYLINDER |
| 1385 | MD000269 | PLUG, CYLINDER BLOCK - Taper,1/4 |
| 1385 | MD040338 | PLUG, CYLINDER BLOCK - Taper,3/8 |
| 1385 | MS661142 | PLUG, CYLINDER HEAD - Taper,3/8 |
| 1387 | MF472403 | PIN, CYLINDER BLOCK - Dowel,6x14 |
| 1395 | MN176781 | CAP, CYLINDER BLOCK - Sealing,41 |
| 1395 | MF665541 | CAP, CYLINDER BLOCK (HEAD) - Sealing,35 |
| 1395 | MF665538 | CAP, CYLINDER HEAD - Sealing,25 |
| 1396 | MS471111 | BUSHING, CYLINDER BLOCK - 12x13 |
| 1396 | MS471104 | BUSHING, CYLINDER HEAD - 8x9 |
| 1396 | MS471112 | BUSHING, CYLINDER BLOCK - 12x16 |
| 1397 | MD173367 | BOLT, CYLINDER BLOCK - 11x96 |
| 1397 | MF140207 | BOLT, ROCKER COVER - Flange,6x20 |
| 3017 | MN163322 | CASE ASSY, CRANKSHAFT RR OIL SEAL |
| 3080 | MD372251 | OIL SEAL, CRANKSHAFT, RR |
| 4956 | MF140021 | BOLT, ACCEL CABLE SUPPORT - Flange,8x12 |
| 4999 | MD075834 | O-RING, ENG OIL FILLER - 9 |
| 4999 | MD317089 | O-RING, ENG OIL FILLER |
| OEM | Part name | Category |
|---|---|---|
| MD000269 | PLUG, CYLINDER BLOCK - Taper,1/4 | Cylinder block |
| MD040338 | PLUG, CYLINDER BLOCK - Taper,3/8 | Cylinder block |
| MD075834 | O-RING, ENG OIL FILLER - 9 | Cylinder block |
| MD173367 | BOLT, CYLINDER BLOCK - 11x96 | Cylinder block |
| MD317089 | O-RING, ENG OIL FILLER | Cylinder block |
| MD372251 | OIL SEAL, CRANKSHAFT, RR | Cylinder block |
| MF140021 | BOLT, ACCEL CABLE SUPPORT - Flange,8x12 | Cylinder block |
| MF140207 | BOLT, ROCKER COVER - Flange,6x20 | Cylinder block |
| MF472403 | PIN, CYLINDER BLOCK - Dowel,6x14 | Cylinder block |
| MF665538 | CAP, CYLINDER HEAD - Sealing,25 | Cylinder block |
| MF665541 | CAP, CYLINDER BLOCK (HEAD) - Sealing,35 | Cylinder block |
| MN163322 | CASE ASSY, CRANKSHAFT RR OIL SEAL | Cylinder block |
| MN176781 | CAP, CYLINDER BLOCK - Sealing,41 | Cylinder block |
| MR984401 | BLOCK ASSY, CYLINDER | Cylinder block |
| MS471104 | BUSHING, CYLINDER HEAD - 8x9 | Cylinder block |
| MS471111 | BUSHING, CYLINDER BLOCK - 12x13 | Cylinder block |
| MS471112 | BUSHING, CYLINDER BLOCK - 12x16 | Cylinder block |
| MS661142 | PLUG, CYLINDER HEAD - Taper,3/8 | Cylinder block |
