KB9T

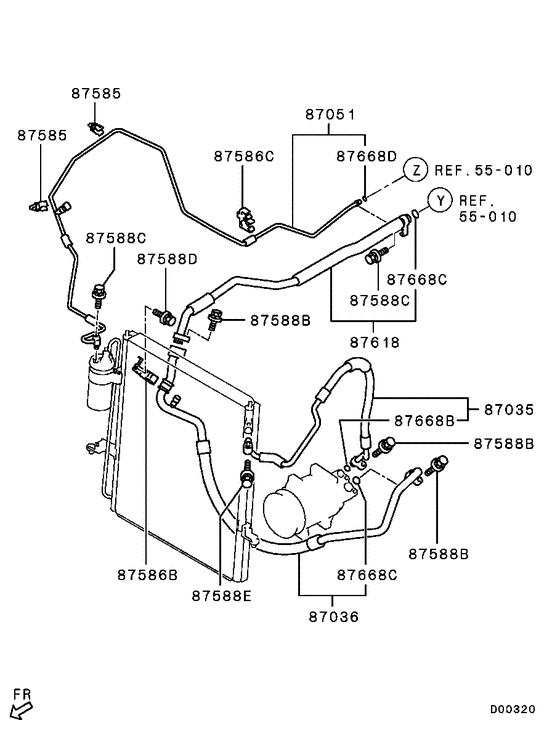

A/c condenser, piping (PIPING) 16
| # | OEM | Part name |
|---|---|---|
| 87035 | MN123617 | HOSE, A/C COMPRESSOR DISCHARGE |
| 87036 | MN123609 | HOSE, A/C COMPRESSOR SUCTION |
| 87051 | MN123621 | PIPE, A/C CONDENSER OUTLET |
| 87585 | MB580828 | CLIP, GEARSHIFT LINK - 9 |
| 87585 | MN134511 | CLIP, A/C PIPING |
| 87586 | MR958245 | CLAMP, A/C PIPING |
| 87586 | MR315094 | CLAMP, A/C PIPING |
| 87588 | MF140028 | BOLT, ENG MECHANICAL GOVERNOR - Flange,8x28 |
| 87588 | MF243655 | BOLT, ROCKER COVER - Washer assembled,8x30 |
| 87588 | MF243629 | BOLT, FUEL TANK - Washer assembled,6x28 |
| 87588 | MS240141 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 |
| 87588 | MF140226 | BOLT, ENG OIL PAN - Flange,8x22 |
| 87588 | MF243653 | BOLT, ENG OIL COOLER LINE - Washer assembled,8x25 |
| 87668 | MR360899 | O-RING, A/C PIPING |
| 87668 | MR460318 | O-RING, A/C PIPING |
| 87668 | MR360998 | O-RING, A/C PIPING |
| OEM | Part name | Category |
|---|---|---|
| MB580828 | CLIP, GEARSHIFT LINK - 9 | A/c condenser, piping (PIPING) |
| MF140028 | BOLT, ENG MECHANICAL GOVERNOR - Flange,8x28 | A/c condenser, piping (PIPING) |
| MF140226 | BOLT, ENG OIL PAN - Flange,8x22 | A/c condenser, piping (PIPING) |
| MF243629 | BOLT, FUEL TANK - Washer assembled,6x28 | A/c condenser, piping (PIPING) |
| MF243653 | BOLT, ENG OIL COOLER LINE - Washer assembled,8x25 | A/c condenser, piping (PIPING) |
| MF243655 | BOLT, ROCKER COVER - Washer assembled,8x30 | A/c condenser, piping (PIPING) |
| MN123609 | HOSE, A/C COMPRESSOR SUCTION | A/c condenser, piping (PIPING) |
| MN123617 | HOSE, A/C COMPRESSOR DISCHARGE | A/c condenser, piping (PIPING) |
| MN123621 | PIPE, A/C CONDENSER OUTLET | A/c condenser, piping (PIPING) |
| MN134511 | CLIP, A/C PIPING | A/c condenser, piping (PIPING) |
| MR315094 | CLAMP, A/C PIPING | A/c condenser, piping (PIPING) |
| MR360899 | O-RING, A/C PIPING | A/c condenser, piping (PIPING) |
| MR360998 | O-RING, A/C PIPING | A/c condenser, piping (PIPING) |
| MR460318 | O-RING, A/C PIPING | A/c condenser, piping (PIPING) |
| MR958245 | CLAMP, A/C PIPING | A/c condenser, piping (PIPING) |
| MS240141 | BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 | A/c condenser, piping (PIPING) |
