Search › Model › KB9T
KB9T

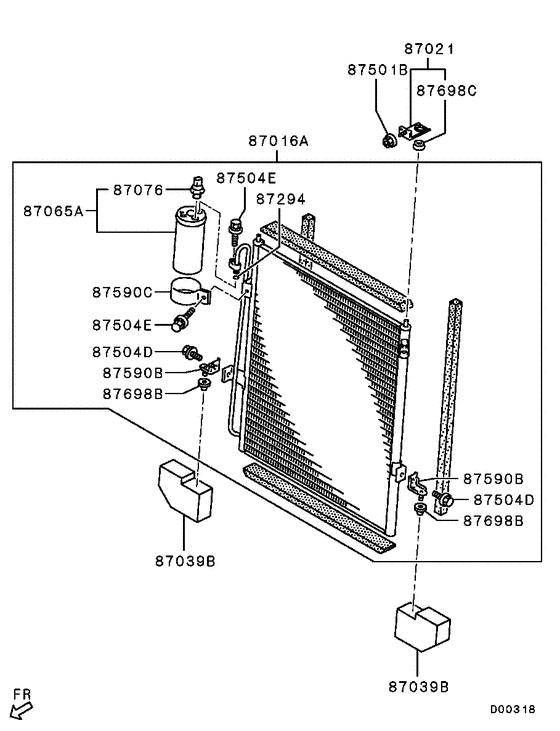

A/c condenser, piping (CONDENSER) 7
| # | OEM | Part name |
|---|---|---|
| 87016 | MN123642 | CONDENSER ASSY, A/C REFRIGERANT |
| 87021 | MN166943 | BRACKET, A/C CONDENSER |
| 87039 | MN123633 | INSULATOR, A/C CONDENSER |
| 87294 | MR360998 | O-RING, A/C PIPING |
| 87501 | MS440502 | NUT, FUEL TANK - Washer assembled,6 |
| 87504 | MF140421 | BOLT, A/C CONDENSER |
| 87504 | MS240023 | BOLT, PARKING BRAKE CABLE - Washer assembled,6x25 |
| OEM | Part name | Category |
|---|---|---|
| MF140421 | BOLT, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MN123633 | INSULATOR, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MN123642 | CONDENSER ASSY, A/C REFRIGERANT | A/c condenser, piping (CONDENSER) |
| MN166943 | BRACKET, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MR360998 | O-RING, A/C PIPING | A/c condenser, piping (CONDENSER) |
| MS240023 | BOLT, PARKING BRAKE CABLE - Washer assembled,6x25 | A/c condenser, piping (CONDENSER) |
| MS440502 | NUT, FUEL TANK - Washer assembled,6 | A/c condenser, piping (CONDENSER) |
