Search › Model › KB9T
KB9T

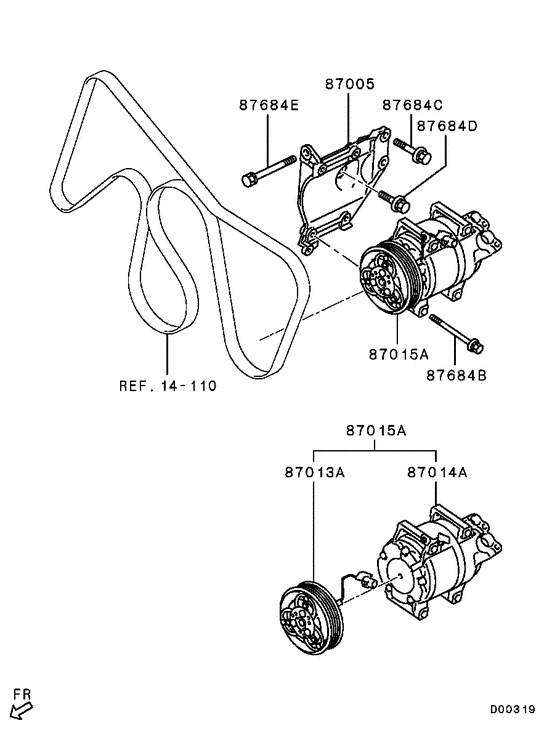

A/c condenser, piping (COMPRESSOR,BRACKET) 6
| # | OEM | Part name |
|---|---|---|
| 87005 | MN123628 | BRACKET, A/C COMPRESSOR |
| 87015 | MN123624 | COMPRESSOR & CLUTCH ASSY, A/C |
| 87684 | MF244870 | BOLT, A/C COMPRESSOR - Washer assembled,8x100 |
| 87684 | MF303372 | BOLT, ENG OIL COOLER - Washer assembled,10x55 |
| 87684 | MF303369 | BOLT, OIL FILTER - Washer assembled,10x40 |
| 87684 | MF300860 | BOLT, WATER PUMP - Washer assembled,10x100 |
| OEM | Part name | Category |
|---|---|---|
| MF244870 | BOLT, A/C COMPRESSOR - Washer assembled,8x100 | A/c condenser, piping (COMPRESSOR,BRACKET) |
| MF300860 | BOLT, WATER PUMP - Washer assembled,10x100 | A/c condenser, piping (COMPRESSOR,BRACKET) |
| MF303369 | BOLT, OIL FILTER - Washer assembled,10x40 | A/c condenser, piping (COMPRESSOR,BRACKET) |
| MF303372 | BOLT, ENG OIL COOLER - Washer assembled,10x55 | A/c condenser, piping (COMPRESSOR,BRACKET) |
| MN123624 | COMPRESSOR & CLUTCH ASSY, A/C | A/c condenser, piping (COMPRESSOR,BRACKET) |
| MN123628 | BRACKET, A/C COMPRESSOR | A/c condenser, piping (COMPRESSOR,BRACKET) |
