Search › Model › KB1
KB1

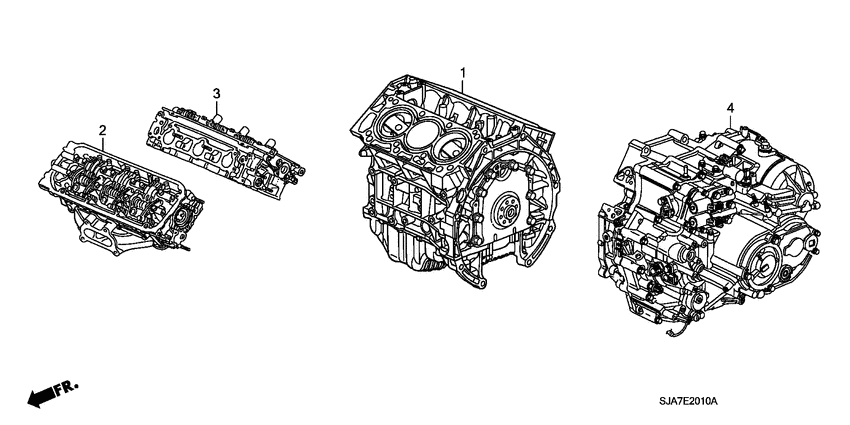

Engine assy./ transmission assy. 7
| # | OEM | Part name |
|---|---|---|
| 1 | 10002-RJA-A02 | General assy. - CYLINDER BLOCK |
| 1 | 10002-RJA-E01 | General assy. - CYLINDER BLOCK |
| 2 | 10004-RJA-A01 | General assy. - FR. CYLINDER HEAD |
| 2 | 10004-RJA-E00 | General assy. - FR. CYLINDER HEAD |
| 3 | 10005-RJA-X01 | General assy. - RR. CYLINDER HEAD |
| 3 | 10005-RJA-E00 | General assy. - RR. CYLINDER HEAD |
| 4 | 20021-RJB-E01 | Transmission assy. |
| OEM | Part name | Category |
|---|---|---|
| 10002-RJA-A02 | General assy. - CYLINDER BLOCK | Engine assy./ transmission assy. |
| 10002-RJA-E01 | General assy. - CYLINDER BLOCK | Engine assy./ transmission assy. |
| 10004-RJA-A01 | General assy. - FR. CYLINDER HEAD | Engine assy./ transmission assy. |
| 10004-RJA-E00 | General assy. - FR. CYLINDER HEAD | Engine assy./ transmission assy. |
| 10005-RJA-E00 | General assy. - RR. CYLINDER HEAD | Engine assy./ transmission assy. |
| 10005-RJA-X01 | General assy. - RR. CYLINDER HEAD | Engine assy./ transmission assy. |
| 20021-RJB-E01 | Transmission assy. | Engine assy./ transmission assy. |
