KA2

Honda LEGEND · 1986 · 3,064 parts · 152 categories
KA2 ×

← Back to categories

3,064 items

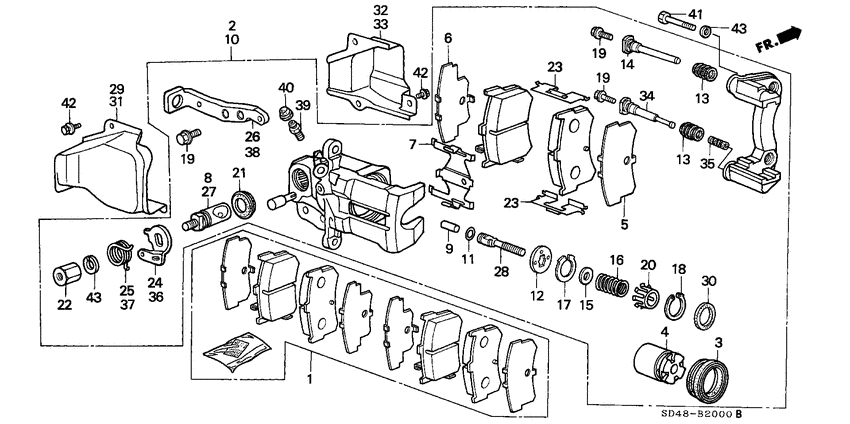

Rear brake caliper (1) 40
#OEMPart name
1 43022-SD4-010 Pad set - RR.
2 43210-SD4-015 Caliper assy - R. RR. (CL11H) (TOKICO)
3 43214-SD4-005 Boot - PISTON
4 43215-SD4-005 Piston comp
5 43224-SD4-005 Shim - BRAKE PAD OUTER
6 43225-SD4-005 Shim - BRAKE PAD INNER
7 43227-SD4-005 Spring - PAD
8 43228-SD4-005 Cam - R.
9 43229-SA5-951 Rod
10 43230-SD4-015 Caliper assy - L. RR. (CL11H) (TOKICO)
11 43232-SA5-951 O-ring
12 43233-SA5-951 Plate - KEY
13 43234-SD4-005 Boot - PIN
14 43235-SD4-005 Pin a
15 43236-SD4-005 Sheet
16 43237-SD4-005 Spring
17 43238-SA5-951 Ring b - RETAINING
18 43238-SD4-005 Ring a - RETAINING
19 43240-SA5-951 Bolt - FLANGE
20 43241-SD4-005 Cover - SPRING
21 43242-SD4-005 Boot - CAM
22 43243-SA5-981 Nut
23 43244-SD4-005 Guide
24 43245-SD4-005 Lever - R.
25 43246-SD4-005 Spring - R. RETURN
26 43247-SD4-005 Guide - R. LEVER
27 43248-SD4-005 Cam - L.
28 43249-SD4-005 Rod - PUSH
29 43256-SD4-010 Protector - R. RR. CALIPER OUTER
30 43257-SD4-005 Seal - PISTON
31 43257-SD4-010 Protector - L. RR. CALIPER OUTER
32 43258-SD4-010 Protector - R. RR. CALIPER INNER
33 43259-SD4-010 Protector - L. RR. CALIPER INNER
34 43262-SD4-005 Pin b
35 43263-SA5-952 Bush - RUBBER
36 43265-SD4-005 Lever - L.
37 43266-SD4-005 Spring - L. RETURN
38 43267-SD4-005 Guide - L. LEVER
39 45224-533-004 Screw - BLEEDER
40 45225-579-013 Cap
