K96W

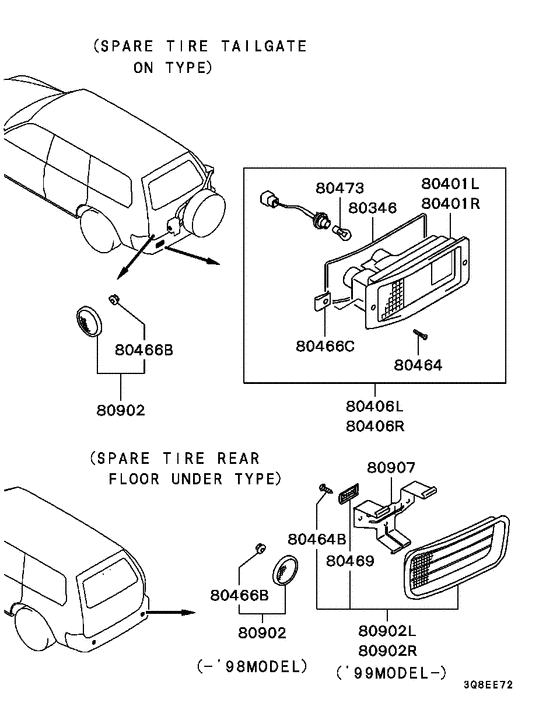

Rear exterior lamp (REFLECTOR) 9
| # | OEM | Part name |
|---|---|---|
| 80464 | MS200321 | SCREW, RADIATOR GRILLE - Machine flange,5x16 |
| 80464 | MF453031 | SCREW 5x12 - Tapping,5x12 |
| 80466 | MS440501 | NUT, FUEL TANK - Washer assembled,5 |
| 80466 | MU440015 | NUT, FR TURN SIGNAL LAMP - Spring,5 |
| 80469 | MB325299 | CLIP, FR BUMPER - 0.3 |
| 80902 | MR439715 | REFLECTOR KIT, RR LAMP, LH |
| 80902 | MR439716 | REFLECTOR KIT, RR LAMP, RH |
| 80907 | MR416757 | BRACKET, REFLECTOR |
| 80907 | MR416758 | BRACKET, REFLECTOR |
| OEM | Part name | Category |
|---|---|---|
| MB325299 | CLIP, FR BUMPER - 0.3 | Rear exterior lamp (REFLECTOR) |
| MF453031 | SCREW 5x12 - Tapping,5x12 | Rear exterior lamp (REFLECTOR) |
| MR416757 | BRACKET, REFLECTOR | Rear exterior lamp (REFLECTOR) |
| MR416758 | BRACKET, REFLECTOR | Rear exterior lamp (REFLECTOR) |
| MR439715 | REFLECTOR KIT, RR LAMP, LH | Rear exterior lamp (REFLECTOR) |
| MR439716 | REFLECTOR KIT, RR LAMP, RH | Rear exterior lamp (REFLECTOR) |
| MS200321 | SCREW, RADIATOR GRILLE - Machine flange,5x16 | Rear exterior lamp (REFLECTOR) |
| MS440501 | NUT, FUEL TANK - Washer assembled,5 | Rear exterior lamp (REFLECTOR) |
| MU440015 | NUT, FR TURN SIGNAL LAMP - Spring,5 | Rear exterior lamp (REFLECTOR) |
