K96W

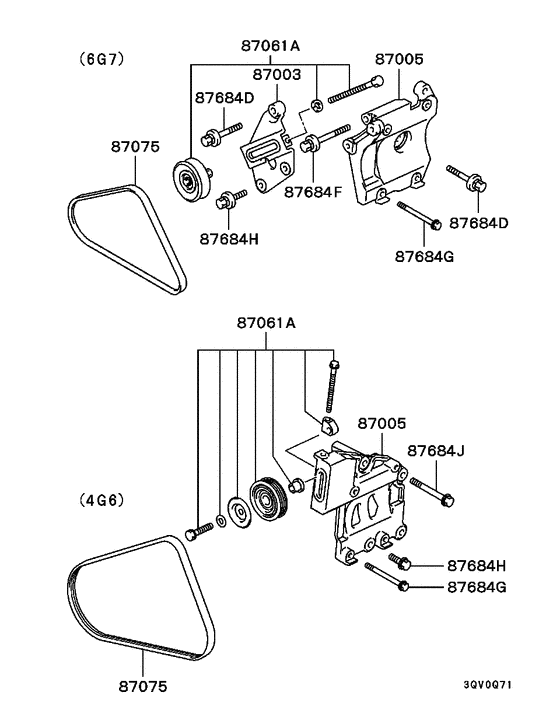

A/c condenser, piping (COMPRESSOR BRACKET) 10
| # | OEM | Part name |
|---|---|---|
| 87003 | MR240429 | BRACKET, A/C COMPRESSOR TENSION PULLEY |
| 87005 | MR240427 | BRACKET, A/C COMPRESSOR |
| 87005 | MR360332 | BRACKET, A/C COMPRESSOR |
| 87061 | MB609125 | PULLEY ASSY, A/C COMPRESSOR TENSION |
| 87061 | MR315634 | PULLEY ASSY,A/C COMPRESSOR TENSION |
| 87075 | MB272651 | BELT, A/C - 890 |
| 87684 | MF303369 | BOLT, OIL FILTER - Washer assembled,10x40 |
| 87684 | MF303380 | BOLT, INLET MANIFOLD - Washer assembled,10x100 |
| 87684 | MS241086 | BOLT, A/C COMPRESSOR - Washer assembled,8x95 |
| 87684 | MF244853 | BOLT, ENG RR MOUNTING - Washer assembled,8x25 |
| OEM | Part name | Category |
|---|---|---|
| MB272651 | BELT, A/C - 890 | A/c condenser, piping (COMPRESSOR BRACKET) |
| MB609125 | PULLEY ASSY, A/C COMPRESSOR TENSION | A/c condenser, piping (COMPRESSOR BRACKET) |
| MF244853 | BOLT, ENG RR MOUNTING - Washer assembled,8x25 | A/c condenser, piping (COMPRESSOR BRACKET) |
| MF303369 | BOLT, OIL FILTER - Washer assembled,10x40 | A/c condenser, piping (COMPRESSOR BRACKET) |
| MF303380 | BOLT, INLET MANIFOLD - Washer assembled,10x100 | A/c condenser, piping (COMPRESSOR BRACKET) |
| MR240427 | BRACKET, A/C COMPRESSOR | A/c condenser, piping (COMPRESSOR BRACKET) |
| MR240429 | BRACKET, A/C COMPRESSOR TENSION PULLEY | A/c condenser, piping (COMPRESSOR BRACKET) |
| MR315634 | PULLEY ASSY,A/C COMPRESSOR TENSION | A/c condenser, piping (COMPRESSOR BRACKET) |
| MR360332 | BRACKET, A/C COMPRESSOR | A/c condenser, piping (COMPRESSOR BRACKET) |
| MS241086 | BOLT, A/C COMPRESSOR - Washer assembled,8x95 | A/c condenser, piping (COMPRESSOR BRACKET) |
