Search › Model › K85W
K85W

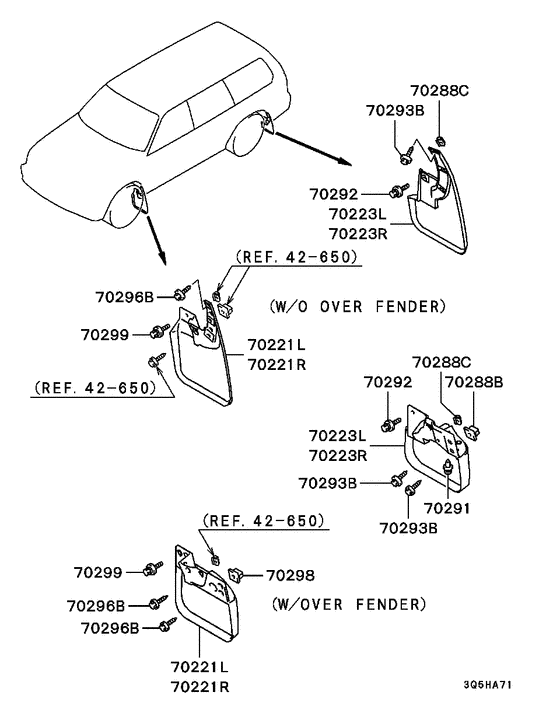

Mud guard,shield & stone guard (MUD GUARD) 8
| # | OEM | Part name |
|---|---|---|
| 70221 | MR109281 | MUD GUARD, FR LH |
| 70221 | MR109282 | MUD GUARD, FR RH |
| 70223 | MR230945 | MUD GUARD, RR LH |
| 70223 | MR230946 | MUD GUARD, RR RH |
| 70288 | MB481588 | GROMMET, FR BUMPER - Screw .,6 |
| 70292 | MS240602 | BOLT, FR BUMPER - Washer assembled,6x20 |
| 70293 | MS450979 | SCREW, RR MUD GUARD |
| 70299 | MS240155 | BOLT, WINDSHIELD - Washer assembled,6x16 |
| OEM | Part name | Category |
|---|---|---|
| MB481588 | GROMMET, FR BUMPER - Screw .,6 | Mud guard,shield & stone guard (MUD GUARD) |
| MR109281 | MUD GUARD, FR LH | Mud guard,shield & stone guard (MUD GUARD) |
| MR109282 | MUD GUARD, FR RH | Mud guard,shield & stone guard (MUD GUARD) |
| MR230945 | MUD GUARD, RR LH | Mud guard,shield & stone guard (MUD GUARD) |
| MR230946 | MUD GUARD, RR RH | Mud guard,shield & stone guard (MUD GUARD) |
| MS240155 | BOLT, WINDSHIELD - Washer assembled,6x16 | Mud guard,shield & stone guard (MUD GUARD) |
| MS240602 | BOLT, FR BUMPER - Washer assembled,6x20 | Mud guard,shield & stone guard (MUD GUARD) |
| MS450979 | SCREW, RR MUD GUARD | Mud guard,shield & stone guard (MUD GUARD) |
