Search › Model › K85W

K85W

Mitsubishi PAJERO-MONTERO-SPORT · 1996 · 3,761 parts · 216 categories

3,761 items

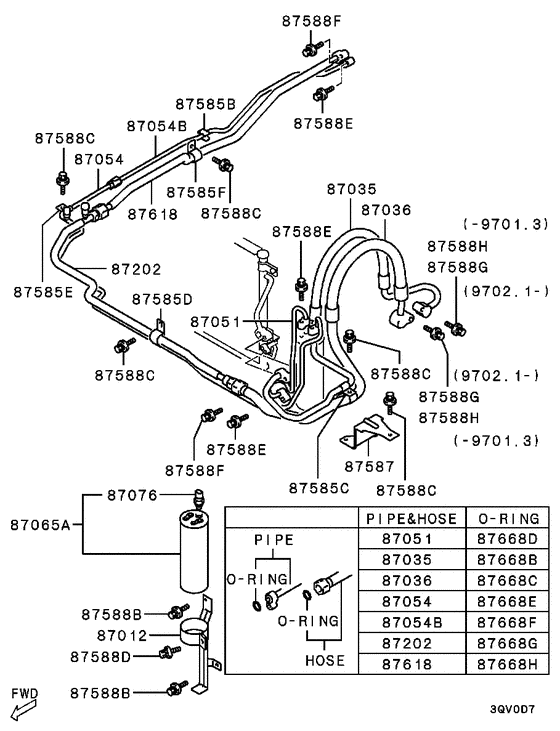

A/c condenser, piping (PIPING -9705.3) 43

#	OEM	Part name
87012	MB877485	BRACKET, A/C RECEIVER
87012	MR360437	BRACKET, A/C RECEIVER
87012	MR460579	BRACKET, A/C RECEIVER
87035	MR250596	HOSE,A/C COMPRESSOR DISCHARGE
87035	MR360554	HOSE,A/C COMPRESSOR DISCHARGE
87035	MR500902	HOSE,A/C COMPRESSOR DISCHARGE
87036	MR250598	HOSE,A/C COMPRESSOR SUCTION
87036	MR360419	HOSE,A/C COMPRESSOR SUCTION
87051	MR240784	PIPE, A/C CONDENSER OUTLET
87051	MR460580	PIPE, A/C CONDENSER OUTLET
87054	MR250600	PIPE,A/C RECEIVER OUTLET
87054	MR360417	PIPE,A/C RECEIVER OUTLET
87054	MR460583	PIPE,A/C RECEIVER OUTLET
87054	MR250601	PIPE,A/C RECEIVER OUTLET
87054	MR360418	PIPE,A/C RECEIVER OUTLET
87065	MR315071	RECEIVER ASSY, A/C
87065	MR360921	RECEIVER ASSY,A/C
87076	MR250683	SWITCH, A/C REFRIGERANT PRESSURE
87076	MR360872	SWITCH, A/C REFRIGERANT PRESSURE
87202	MR250602	PIPE,RR A/C SUCTION
87202	MR360421	PIPE,RR A/C SUCTION
87202	MR460420	PIPE,RR A/C SUCTION
87585	MU481044	CLIP, WINDSHIELD WASHER - 8
87585	MF477025	CLIP, FUEL LINE - D=12
87585	MF477027	CLIP, FUEL TANK - D=18
87585	MB657640	CLIP, A/C PIPING
87585	MF477023	CLIP, ENG RR MOUNTING - D=8
87585	MF477028	CLIP, FUEL LINE - D=20
87587	MR240786	BRACKET, A/C PIPING
87587	MR360425	BRACKET,A/C PIPING
87588	MF243622	BOLT, ROCKER COVER - Washer assembled,6x12
87588	MF243623	BOLT, FLYWHEEL HOUSING - Washer assembled,6x14
87588	MF243626	BOLT, ENG WIRING - Washer assembled,6x20
87588	MF243628	BOLT, CONNROD - Washer assembled,6x25
87588	MF244855	BOLT, COOLING FAN - Washer assembled,8x30
87588	MF244857	BOLT, A/C DRIVING - Washer assembled,8x35
87588	MF244859	BOLT, A/C COMPRESSOR - Washer assembled,8x40
87618	MR250603	PIPE,A/C COMPRESSOR SUCTION
87618	MR360424	PIPE,A/C COMPRESSOR SUCTION
87668	MB946605	O-RING, RR A/C - 1/2
87668	MR117263	O-RING, A/C PIPING - 3/4
87668	MB946604	O-RING, RR A/C
87668	MR146634	O-RING, A/C PIPING - 5/8

OEM	Part name	Category
MB657640	CLIP, A/C PIPING	A/c condenser, piping (PIPING -9705.3)
MB877485	BRACKET, A/C RECEIVER	A/c condenser, piping (PIPING -9705.3)
MB946604	O-RING, RR A/C	A/c condenser, piping (PIPING -9705.3)
MB946605	O-RING, RR A/C - 1/2	A/c condenser, piping (PIPING -9705.3)
MF243622	BOLT, ROCKER COVER - Washer assembled,6x12	A/c condenser, piping (PIPING -9705.3)
MF243623	BOLT, FLYWHEEL HOUSING - Washer assembled,6x14	A/c condenser, piping (PIPING -9705.3)
MF243626	BOLT, ENG WIRING - Washer assembled,6x20	A/c condenser, piping (PIPING -9705.3)
MF243628	BOLT, CONNROD - Washer assembled,6x25	A/c condenser, piping (PIPING -9705.3)
MF244855	BOLT, COOLING FAN - Washer assembled,8x30	A/c condenser, piping (PIPING -9705.3)
MF244857	BOLT, A/C DRIVING - Washer assembled,8x35	A/c condenser, piping (PIPING -9705.3)
MF244859	BOLT, A/C COMPRESSOR - Washer assembled,8x40	A/c condenser, piping (PIPING -9705.3)
MF477023	CLIP, ENG RR MOUNTING - D=8	A/c condenser, piping (PIPING -9705.3)
MF477025	CLIP, FUEL LINE - D=12	A/c condenser, piping (PIPING -9705.3)
MF477027	CLIP, FUEL TANK - D=18	A/c condenser, piping (PIPING -9705.3)
MF477028	CLIP, FUEL LINE - D=20	A/c condenser, piping (PIPING -9705.3)
MR117263	O-RING, A/C PIPING - 3/4	A/c condenser, piping (PIPING -9705.3)
MR146634	O-RING, A/C PIPING - 5/8	A/c condenser, piping (PIPING -9705.3)
MR240784	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (PIPING -9705.3)
MR240786	BRACKET, A/C PIPING	A/c condenser, piping (PIPING -9705.3)
MR250596	HOSE,A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING -9705.3)
MR250598	HOSE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING -9705.3)
MR250600	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING -9705.3)
MR250601	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING -9705.3)
MR250602	PIPE,RR A/C SUCTION	A/c condenser, piping (PIPING -9705.3)
MR250603	PIPE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING -9705.3)
MR250683	SWITCH, A/C REFRIGERANT PRESSURE	A/c condenser, piping (PIPING -9705.3)
MR315071	RECEIVER ASSY, A/C	A/c condenser, piping (PIPING -9705.3)
MR360417	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING -9705.3)
MR360418	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING -9705.3)
MR360419	HOSE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING -9705.3)
MR360421	PIPE,RR A/C SUCTION	A/c condenser, piping (PIPING -9705.3)
MR360424	PIPE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING -9705.3)
MR360425	BRACKET,A/C PIPING	A/c condenser, piping (PIPING -9705.3)
MR360437	BRACKET, A/C RECEIVER	A/c condenser, piping (PIPING -9705.3)
MR360554	HOSE,A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING -9705.3)
MR360872	SWITCH, A/C REFRIGERANT PRESSURE	A/c condenser, piping (PIPING -9705.3)
MR360921	RECEIVER ASSY,A/C	A/c condenser, piping (PIPING -9705.3)
MR460420	PIPE,RR A/C SUCTION	A/c condenser, piping (PIPING -9705.3)
MR460579	BRACKET, A/C RECEIVER	A/c condenser, piping (PIPING -9705.3)
MR460580	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (PIPING -9705.3)
MR460583	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING -9705.3)
MR500902	HOSE,A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING -9705.3)
MU481044	CLIP, WINDSHIELD WASHER - 8	A/c condenser, piping (PIPING -9705.3)
