K11

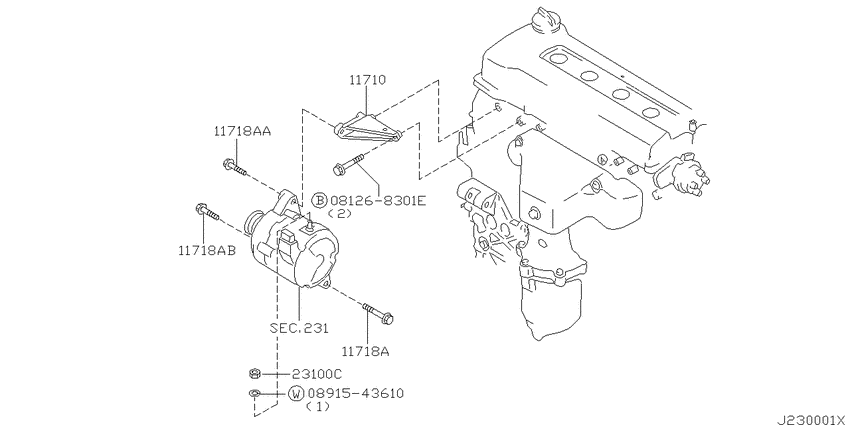

Alternator fitting (1999-05-01 ~ 1999-11-01; CG13DE) 6
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-41B02 | Bracket-Alternator |
| 11718 | 01121-05901 | BOLT |
| 11718 | 01121-05891 | BOLT |
| 23100 | 01221-00241 | NUT |
| 81268301 | 08126-8301E | Bolt-hexagon |
| 891543610 | 08915-43610 | ワツシヤ-,プレ-ン |
| OEM | Part name | Category |
|---|---|---|
| 01121-05891 | BOLT | Alternator fitting (1999-05-01 ~ 1999-11-01; CG13DE) |
| 01121-05901 | BOLT | Alternator fitting (1999-05-01 ~ 1999-11-01; CG13DE) |
| 01221-00241 | NUT | Alternator fitting (1999-05-01 ~ 1999-11-01; CG13DE) |
| 08126-8301E | Bolt-hexagon | Alternator fitting (1999-05-01 ~ 1999-11-01; CG13DE) |
| 08915-43610 | ワツシヤ-,プレ-ン | Alternator fitting (1999-05-01 ~ 1999-11-01; CG13DE) |
| 11710-41B02 | Bracket-Alternator | Alternator fitting (1999-05-01 ~ 1999-11-01; CG13DE) |
