JZZ31

Toyota SOARER · 1994 · 6,253 parts · 222 categories
JZZ31 ×

← Back to categories

6,253 items

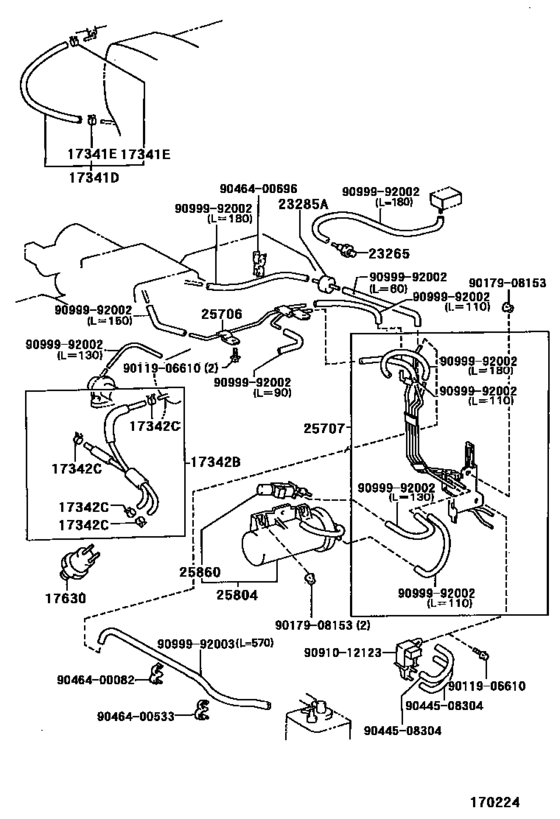

Vacuum Piping ([01.1994 - 09.1997] (9401-9709)2JZGE) 28
#OEMPart name
17341 90445-10065 Hose, No.1(For Idle-Up)
17341 90445-10016 Hose, No.2(For Idle-Up)
17341 90467-10106 Clip, No.1(For Idle-Up Hose)
17341 96132-51000 Clip Or Clamp(For Ventilation Hose)
17342 17302-46010 Hose, No.2(For Idle-Up)
17630 17630-70020 Valve Assy, Air Control
17630 17630-16040 Valve Assy, Air Control
23265 90917-11031 Filter, Gas, No.1
23285 90917-10080 Filter, Gas, No.1
25706 25706-46030 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-46060 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-46090 Pipe Sub-Assy, Vacuum Transmitting, No.1
25707 25707-46060 Pipe Sub-Assy, Vacuum Transmitting, No.2
25707 25707-46090 Pipe Sub-Assy, Vacuum Transmitting, No.2
25804 25804-46020 Valve Set, Vacuum Control
25804 25804-46060 Valve Set, Vacuum Control
25860 25860-46010 Valve Assy, Vacuum Switching, No.1
25860 90910-12124 Valve Assy, Vacuum Switching, No.1
9011906610 90119-06610 New Genuine Part
9011906610 90119-06493 BOLT WITH WASHER
9017908153 90179-08153 NUT
9044508304 90445-08304 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400533 90464-00533 New Genuine Part
9046400696 90464-00696 Clamp, No.2(For Vacuum Hose)
9091012123 90910-12123 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
