Search › Model › JZX91

JZX91

Toyota CHASER · 1992 · 5,428 parts · 196 categories

5,428 items

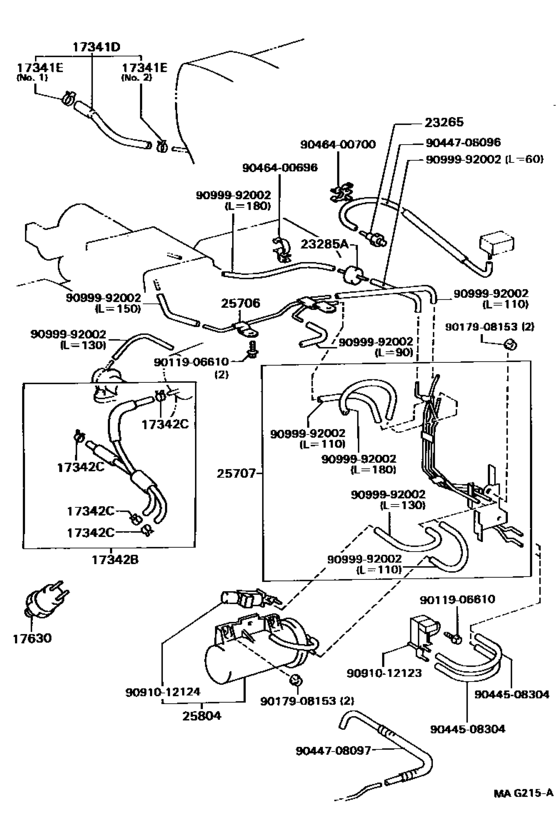

Vacuum Piping ([10.1992 - ] (9210- )2JZGE) 24

#	OEM	Part name
17341	17341-46130	Hose, No.1(For Idle-Up)
17341	96132-51000	Clip Or Clamp(For Ventilation Hose)
17341	96132-51100	Clip (For Hose)
17342	17342-46120	Hose, No.2(For Idle-Up)
17630	17630-70020	Valve Assy, Air Control
17630	17630-16040	Valve Assy, Air Control
23265	90917-11031	Filter, Gas, No.1
23285	90917-10080	Filter, Gas, No.1
25706	25706-46030	Pipe Sub-Assy, Vacuum Transmitting, No.1
25706	25706-46060	Pipe Sub-Assy, Vacuum Transmitting, No.1
25707	25707-46060	Pipe Sub-Assy, Vacuum Transmitting, No.2
25804	25804-46020	Valve Set, Vacuum Control
25804	25804-46060	Valve Set, Vacuum Control
9011906610	90119-06610	New Genuine Part
9011906610	90119-06493	BOLT WITH WASHER
9017908153	90179-08153	NUT
9044508304	90445-08304	New Genuine Part
9044708096	90447-08096	New Genuine Part
9044708097	90447-08097	New Genuine Part
9046400696	90464-00696	Clamp, No.2(For Vacuum Hose)
9046400700	90464-00700	New Genuine Part
9091012123	90910-12123	New Genuine Part
9091012124	90910-12124	Valve Assy, Vacuum Switching, No.1
9099992002	90999-92002	Air Hose (300 mm)

OEM	Part name	Category
17341-46130	Hose, No.1(For Idle-Up)	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
17342-46120	Hose, No.2(For Idle-Up)	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
17630-16040	Valve Assy, Air Control	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
17630-70020	Valve Assy, Air Control	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
25706-46030	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
25706-46060	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
25707-46060	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
25804-46020	Valve Set, Vacuum Control	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
25804-46060	Valve Set, Vacuum Control	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90119-06493	BOLT WITH WASHER	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90119-06610	New Genuine Part	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90179-08153	NUT	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90445-08304	New Genuine Part	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90447-08096	New Genuine Part	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90447-08097	New Genuine Part	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90464-00696	Clamp, No.2(For Vacuum Hose)	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90464-00700	New Genuine Part	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90910-12123	New Genuine Part	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90910-12124	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90917-10080	Filter, Gas, No.1	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90917-11031	Filter, Gas, No.1	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)
96132-51100	Clip (For Hose)	Vacuum Piping ([10.1992 - ] (9210- )2JZGE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 196
Collected: 2026-08-02
