Search › Model › JZX115

JZX115

Toyota MARK-2 · 2000 · 5,409 parts · 242 categories

5,409 items

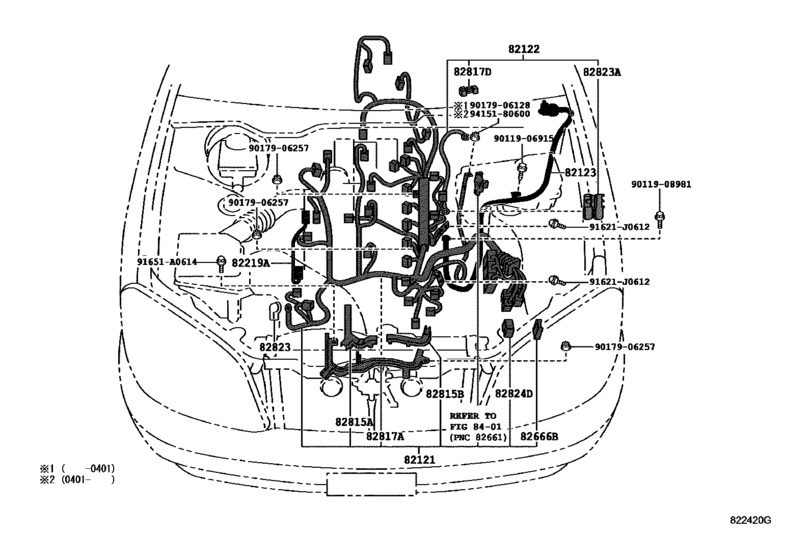

Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115) 23

#	OEM	Part name
82121	82121-2A690	Wire, Engine
82122	82122-22520	Wire, Engine, No.2
82122	82122-22550	Wire, Engine, No.2
82123	82123-22320	Wire, Engine, No.3
82123	82123-22330	Wire, Engine, No.3
82219	82219-22130	Wire, Sensor
82219	82219-22140	Wire, Sensor
82666	82666-30670	Holder, Connector No.2
82815	82815-22010	Cover, Wiring Harness Protector
82815	82815-51010	Cover, Wiring Harness Protector
82817	82817-2A570	Protector, Wiring Harness, No.2
82817	82817-3K670	Protector, Wiring Harness, No.5
82823	82823-24030	Cap, Terminal, No.1
82823	82823-20080	Cap, Terminal, No.1
82824	82824-50110	Connector, Wiring Harness
91621	91621-J0612	BOLT W-WASHER
91651	91651-A0614	BOLT WWASHER
91651	91653-A0614	BOLT WWASHER
9011906915	90119-06915	BOLT W-WASHER
9011908981	90119-08981	New Genuine Part
9017906128	90179-06128	NUT
9017906257	90179-06257	NUT
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82121-2A690	Wire, Engine	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82122-22520	Wire, Engine, No.2	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82122-22550	Wire, Engine, No.2	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82123-22320	Wire, Engine, No.3	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82123-22330	Wire, Engine, No.3	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82219-22130	Wire, Sensor	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82219-22140	Wire, Sensor	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82666-30670	Holder, Connector No.2	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82815-22010	Cover, Wiring Harness Protector	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82815-51010	Cover, Wiring Harness Protector	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82817-2A570	Protector, Wiring Harness, No.2	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82817-3K670	Protector, Wiring Harness, No.5	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82823-20080	Cap, Terminal, No.1	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82823-24030	Cap, Terminal, No.1	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
82824-50110	Connector, Wiring Harness	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
90119-08981	New Genuine Part	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
90179-06128	NUT	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
90179-06257	NUT	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
91621-J0612	BOLT W-WASHER	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
91651-A0614	BOLT WWASHER	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
91653-A0614	BOLT WWASHER	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([10.2000 - ] ｴﾝｼﾞﾝ (0010- )JZX115)
