Search › Model › JZX115
JZX115

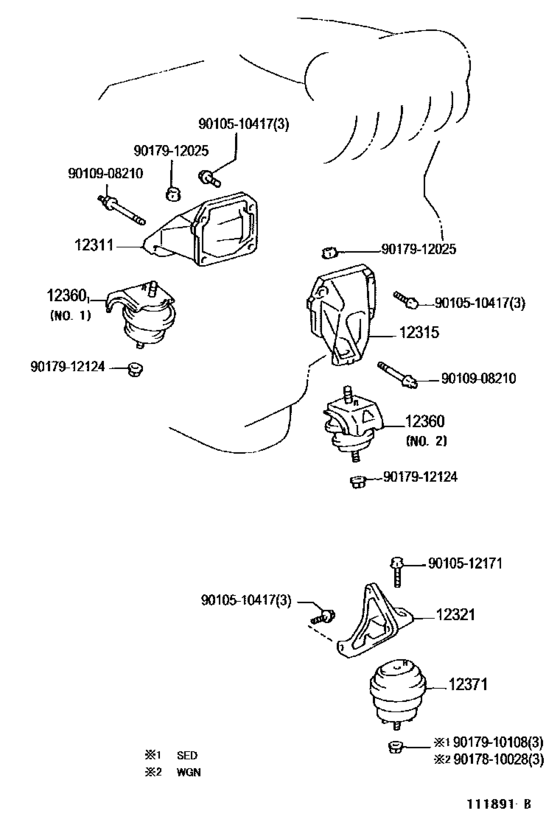

Mounting ([10.2000 - ] (0010- )1JZGE) 14
| # | OEM | Part name |
|---|---|---|
| 12311 | 12311-46100 | Bracket, Engine Mounting, Front No.1 Rh |
| 12315 | 12315-46100 | Bracket, Engine Mounting, Front No.1 Lh |
| 12321 | 12321-50010 | Bracket, Engine Mounting, Rear, No.1 |
| 12360 | 12360-46080 | Insulator Assy, Engine Mounting, Front - Right |
| 12360 | 12380-46030 | Insulator Assy, Engine Mounting, Front - Left |
| 12371 | 12371-46240 | Insulator, Engine Mounting, Rear No.1 |
| 12371 | 12371-46130 | Insulator, Engine Mounting, Rear No.1 |
| 9010510417 | 90105-10417 | Bolt (For Front Differential Carrier Cover Setting) |
| 9010512171 | 90105-12171 | Bolt, Lift Arm Body Bracket |
| 9010908210 | 90109-08210 | New Genuine Part |
| 9017810028 | 90178-10028 | New Genuine Part |
| 9017910108 | 90179-10108 | NUT |
| 9017912025 | 90179-12025 | Nut (For Rear Axle Carrier) |
| 9017912124 | 90179-12124 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 12311-46100 | Bracket, Engine Mounting, Front No.1 Rh | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 12315-46100 | Bracket, Engine Mounting, Front No.1 Lh | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 12321-50010 | Bracket, Engine Mounting, Rear, No.1 | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 12360-46080 | Insulator Assy, Engine Mounting, Front - Right | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 12371-46130 | Insulator, Engine Mounting, Rear No.1 | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 12371-46240 | Insulator, Engine Mounting, Rear No.1 | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 12380-46030 | Insulator Assy, Engine Mounting, Front - Left | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 90105-10417 | Bolt (For Front Differential Carrier Cover Setting) | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 90105-12171 | Bolt, Lift Arm Body Bracket | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 90109-08210 | New Genuine Part | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 90178-10028 | New Genuine Part | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 90179-10108 | NUT | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 90179-12025 | Nut (For Rear Axle Carrier) | Mounting ([10.2000 - ] (0010- )1JZGE) |
| 90179-12124 | New Genuine Part | Mounting ([10.2000 - ] (0010- )1JZGE) |
