JZX105

Toyota CHASER · 1996 · 5,123 parts · 213 categories
JZX105 ×

← Back to categories

5,123 items

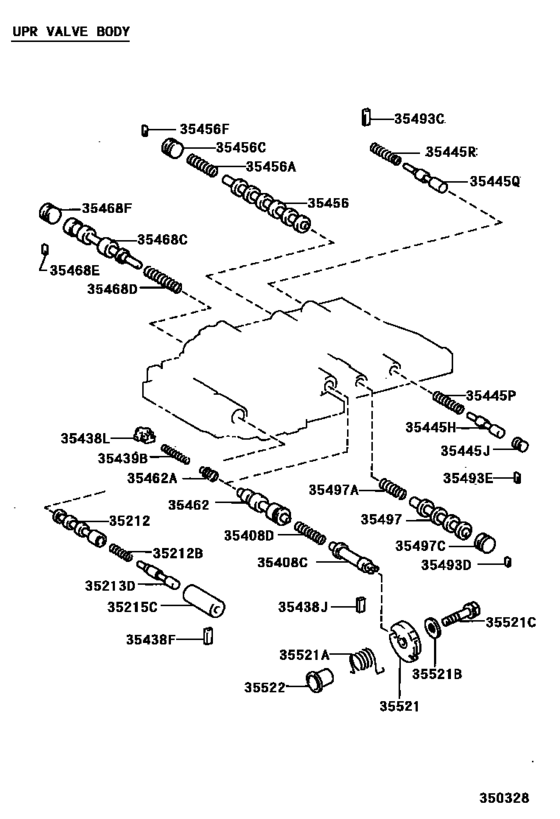

Valve Body & Oil Strainer (Atm) ([09.1996 - 08.1998] A340E,A340H (9609-9808)JZX100,105..AVT,AVTG,TOUS ; (9808- )JZX100,105..AVT,AVTG) 31
#OEMPart name
35212 35212-24010 Valve, Lock Up Relay
35212 90501-06057 Spring, Compression (For Lock Up Relay Valve)
35213 35213-24010 Valve, Lock Up Relay Control
35215 35215-24010 Sleeve, Lock Up Relay Valve, No.1
35408 35408-22050 Plug Sub-Assy, Throttle Valve
35408 90501-10119 Spring, Compression (For Throttle Valve Plug)
35438 35493-22020 Seat, Plug (For Lock Up Relay Valve)
35438 35493-50050 Seat, Throttle Valve Spring
35438 35438-50010 Seat, Detent Spring
35439 35439-50010 Screw, Throttle Valve
35445 35445-50010 Valve, Low Modulator
35445 90339-04002 Plug(For Low-High Shift Valve)
35445 90501-10140 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-08066 Spring, Compression (For Low Coast Modulator Valve)
35456 35456-30060 Valve, 2-3 Shift
35456 90501-09053 Spring, Compression (For 2-3 Shift Valve)
35456 90339-05014 Plug, Low-High Signal Valve
35462 35462-50010 Valve, Throttle
35462 90504-06002 Spring, Compression (For Throttle Valve)
35468 35468-24010 Valve, Secondary Regulator
35468 90501-12170 Spring, Compression (For Secondary Regulator Valve)
35468 35493-30030 Seat(For Center Differential Clutch Control Valve Plug)
35468 90339-05020 Plug (For Reverse Control Valve)
35493 35493-24010 Seat, Shift Valve Plug(For Low Modulator Valve)
35493 35493-30090 Seat, Shift Valve Plug, No.3
35497 35497-30040 Valve, 3-4 Shift
35521 35521-30060 Cam, Throttle Valve
35521 90508-11007 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35521 90105-06018 Bolt (For Throttle Valve Cam Set)
35522 35522-22020 Pin, Throttle Valve Cam
