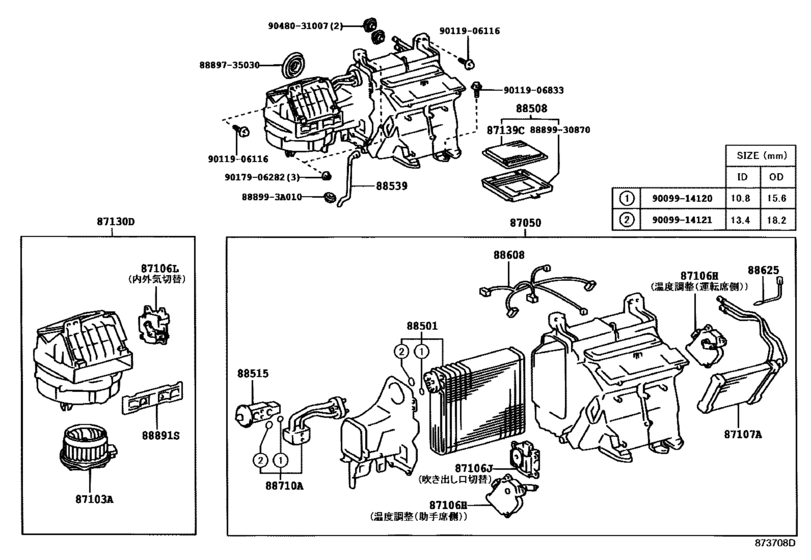

| 87050-30050 |
Radiator Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87103-30410 |
Motor Sub-Assy, Cooling Unit, W/fan |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87103-30430 |
Motor Sub-Assy, Cooling Unit, W/fan |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87103-30440 |
Motor Sub-Assy, Cooling Unit, W/fan |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87106-30340 |
Servo Sub-Assy, Damper(For Cooling Unit) |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87106-30341 |
Servo Sub-Assy, Damper(For Cooling Unit) |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87106-30350 |
Servo Sub-Assy, Damper, No.1 |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87106-30351 |
Servo Sub-Assy, Damper, No.1 |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87106-30361 |
Servo Sub-Assy, Damper(For Mode) |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87106-30380 |
Servo Sub-Assy, Damper |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87107-30540 |
Unit Sub-Assy, Heater Radiator |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87130-30710 |
Blower Assy |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87130-30760 |
Blower Assy |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 87139-48030 |
Filter, Clean Air |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88501-3A020 |
Evaporator Sub-Assy, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88501-3A050 |
Evaporator Sub-Assy, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88508-48020 |
Filter Sub-Assy, Clean Air |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88515-22260 |
Valve, Cooler Expansion |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88515-30690 |
Valve, Cooler Expansion |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88539-30840 |
Hose, Cooler Unit Drain, No.1 |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88608-3A060 |
Harness Sub-Assy, Wiring Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88608-3A061 |
Harness Sub-Assy, Wiring Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88625-3A120 |
Thermistor, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88710-3A220 |
Tube Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88891-30680 |
Cover, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88897-35030 |
Grommet, (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88899-30870 |
Plate, Cover(For Air Filter) |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 88899-3A010 |
Grommet (For Drain Hose) |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 90119-06116 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 90119-06833 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 90179-06282 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
| 90480-31007 |
Grommet, Heater Hose |
Heating & Air Conditioning - Cooler Unit ([09.1999 - 08.2001] ﾌﾛﾝﾄ (9909-0108)GS171,JZS171,173,175,179) |
