JZS179

Toyota CROWN-MAJESTA · 1999 · 5,383 parts · 225 categories

← Back to categories

5,383 items

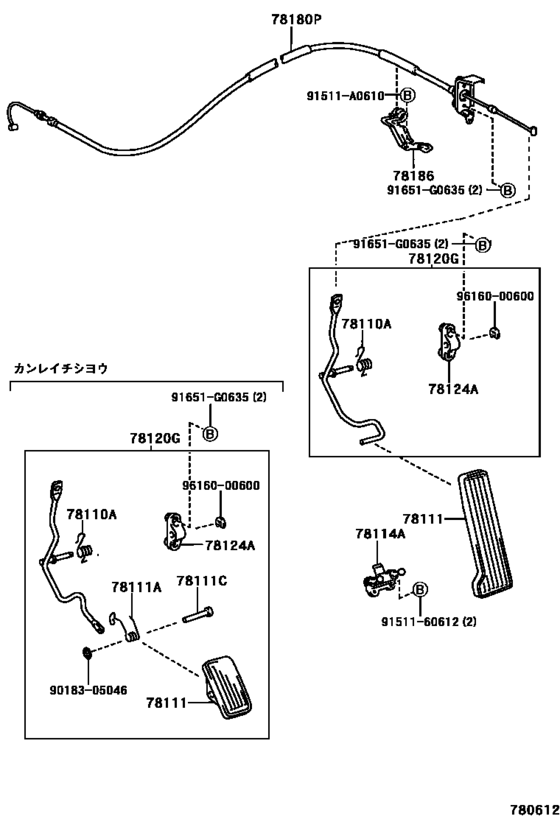

Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179) 19

#	OEM	Part name
78110	78214-50010	Spring (For Accelerator Pedal Rod)
78110	90959-03204	Spring, Torsion (For Accelerator Link)
78111	78111-22020	Pedal, Accelerator
78111	78111-30081	Pedal, Accelerator
78111	90905-08002	Spring (For Accelerator Pedal)
78111	90241-05022	Pin (For Accelerator Pedal)
78114	78114-30070	Bracket, Accelerator Pedal Support
78120	78120-3A170	Rod Assy, Accelerator Pedal
78120	78120-3A200	Rod Assy, Accelerator Pedal
78120	78120-3A201	Rod Assy, Accelerator Pedal
78124	78124-50020	Bracket, Accelerator Pedal Rod
78180	78180-3A740	Cable Assy, Accelerator Control
78186	78186-30160	Support, Accelerator Control Cable, No.1
91511	91511-A0610	Bolt (For Propeller Shaft Heat Insulator)
91511	91531-A0610	Bolt (For Propeller Shaft Heat Insulator)
91651	91651-G0635	New Genuine Part
9018305046	90183-05046	New Genuine Part
9151160612	91511-60612	BOLT
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
78111-22020	Pedal, Accelerator	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78111-30081	Pedal, Accelerator	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78114-30070	Bracket, Accelerator Pedal Support	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78120-3A170	Rod Assy, Accelerator Pedal	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78120-3A200	Rod Assy, Accelerator Pedal	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78120-3A201	Rod Assy, Accelerator Pedal	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78124-50020	Bracket, Accelerator Pedal Rod	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78180-3A740	Cable Assy, Accelerator Control	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78186-30160	Support, Accelerator Control Cable, No.1	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
78214-50010	Spring (For Accelerator Pedal Rod)	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
90183-05046	New Genuine Part	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
90241-05022	Pin (For Accelerator Pedal)	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
90905-08002	Spring (For Accelerator Pedal)	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
90959-03204	Spring, Torsion (For Accelerator Link)	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
91511-60612	BOLT	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
91511-A0610	Bolt (For Propeller Shaft Heat Insulator)	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
91531-A0610	Bolt (For Propeller Shaft Heat Insulator)	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
91651-G0635	New Genuine Part	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Accelerator Link ([08.2001 - ] (9909-0108)TWC ; (0108- )JZS173,179)
