Search › Model › JZS175
JZS175

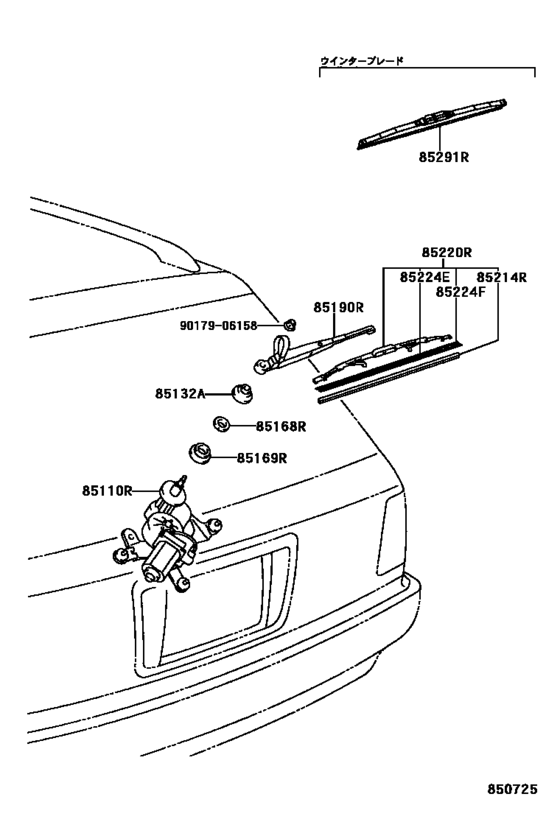

Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) 10
| # | OEM | Part name |
|---|---|---|
| 85110 | 85130-31020 | Motor Assy, Rear Wiper |
| 85132 | 85132-31020 | Cover, Rear Wiper Shaft |
| 85168 | 90099-05157 | Nut, Windshield Wiper Link Pivot |
| 85169 | 85134-21030 | Washer, Rear Wiper Link Pivot, No.1 |
| 85190 | 85241-31020 | Arm Assy, Rear Wiper |
| 85214 | 85214-31010 | Rubber, Rear Wiper |
| 85220 | 85242-31011 | Blade Assy, Rear Wiper |
| 85224 | 85224-31020 | Plate, Rear Wiper Rubber Backing, No.1 |
| 85291 | 85291-33020 | Blade Assy, Rear Wiper |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 85130-31020 | Motor Assy, Rear Wiper | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 85132-31020 | Cover, Rear Wiper Shaft | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 85134-21030 | Washer, Rear Wiper Link Pivot, No.1 | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 85214-31010 | Rubber, Rear Wiper | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 85224-31020 | Plate, Rear Wiper Rubber Backing, No.1 | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 85241-31020 | Arm Assy, Rear Wiper | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 85242-31011 | Blade Assy, Rear Wiper | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 85291-33020 | Blade Assy, Rear Wiper | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 90099-05157 | Nut, Windshield Wiper Link Pivot | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Rear Wiper ([12.1999 - 08.2001] (9912-0108)WG) |
