JZS161

Toyota ARISTO · 1997 · 6,089 parts · 179 categories

6,089 items

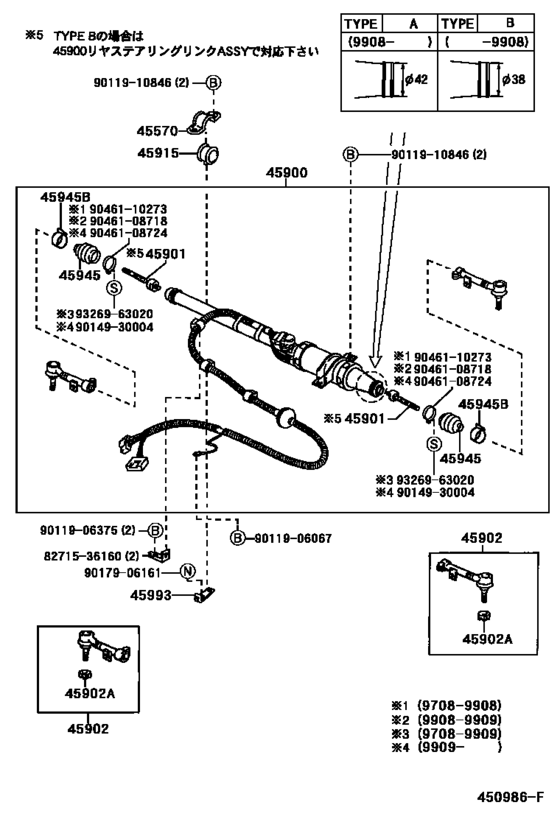

Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161) 25

#	OEM	Part name
45570	45568-30010	Bracket, Steering Rear Control Housing
45900	45900-30030	Link Assy, Rear Steering
45900	45900-30031	Link Assy, Rear Steering
45900	45900-30050	Link Assy, Rear Steering
45901	45901-30030	End Sub-Assy, Rear Steering Rack
45902	45520-39015	End Sub-Assy, Rear Steering Tie Rod, Rh
45902	45530-39015	End Sub-Assy, Rear Steering Tie Rod, Lh
45902	90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)
45915	45915-30010	Grommet, Rear Steering Housing
45915	45915-30011	Grommet, Rear Steering Housing
45945	45945-30010	Boot, Rear Steering Relay Rod
45945	45945-30020	Boot, Rear Steering Relay Rod
45945	90467-18006	Clip(For Rear Steering Relay Rod Boot)
45993	45993-30010	Bracket, Rear Sttering Wiring Hrns Clamp
45993	45993-30020	Bracket, Rear Sttering Wiring Hrns Clamp
8271536160	82715-36160	Bracket,wiring Harness Clamp
9011906067	90119-06067	BOLT
9011906375	90119-06375	Bolt (For Transmission Housing & Case Setting)
9011910846	90119-10846	New Genuine Part
9014930004	90149-30004	Screw(For Steering Rack Boot Clamp)
9017906161	90179-06161	Bolt, Union(For Clutch Accumulator)
9046108718	90461-08718	Clamp(For Power Steering Rack Boot)
9046108724	90461-08724	New Genuine Part
9046110273	90461-10273	Clamp(For Steering Rack Boot)
9326963020	93269-63020	Screw(For Steering Rack Boot Clamp)

OEM	Part name	Category
45520-39015	End Sub-Assy, Rear Steering Tie Rod, Rh	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45530-39015	End Sub-Assy, Rear Steering Tie Rod, Lh	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45568-30010	Bracket, Steering Rear Control Housing	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45900-30030	Link Assy, Rear Steering	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45900-30031	Link Assy, Rear Steering	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45900-30050	Link Assy, Rear Steering	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45901-30030	End Sub-Assy, Rear Steering Rack	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45915-30010	Grommet, Rear Steering Housing	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45915-30011	Grommet, Rear Steering Housing	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45945-30010	Boot, Rear Steering Relay Rod	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45945-30020	Boot, Rear Steering Relay Rod	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45993-30010	Bracket, Rear Sttering Wiring Hrns Clamp	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
45993-30020	Bracket, Rear Sttering Wiring Hrns Clamp	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
82715-36160	Bracket,wiring Harness Clamp	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90119-06067	BOLT	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90119-06375	Bolt (For Transmission Housing & Case Setting)	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90119-10846	New Genuine Part	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90149-30004	Screw(For Steering Rack Boot Clamp)	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90179-06161	Bolt, Union(For Clutch Accumulator)	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90461-08718	Clamp(For Power Steering Rack Boot)	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90461-08724	New Genuine Part	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90461-10273	Clamp(For Steering Rack Boot)	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
90467-18006	Clip(For Rear Steering Relay Rod Boot)	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
93269-63020	Screw(For Steering Rack Boot Clamp)	Rear Steering Gear (4Ws) ([08.1997 - ] (9708- )JZS161)
