Search › Model › JZS157

JZS157

Toyota CROWN-MAJESTA · 1998 · 4,756 parts · 214 categories

4,756 items

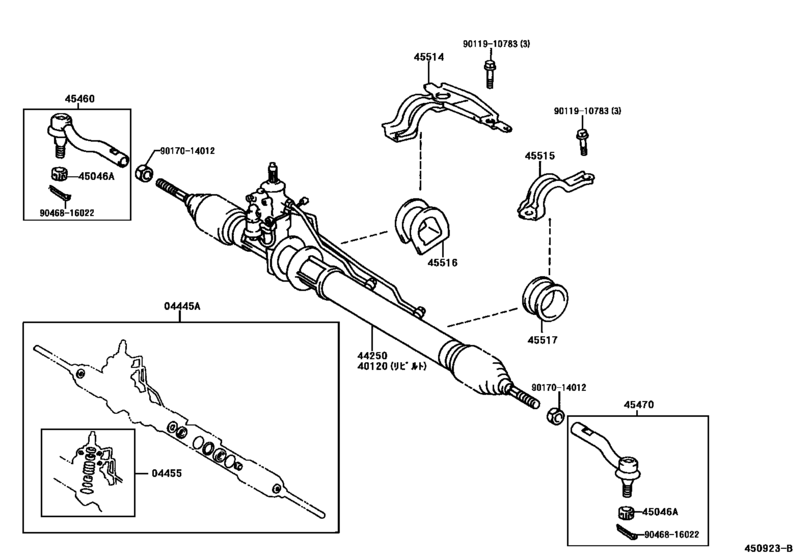

Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157) 59

#	OEM	Part name
4445	04445-30220	Gasket Kit, Power Steering Gear(For Rack & Pinion)
40120	40120-30151	Gear Assy,power Steering,rebuilt
44015	44015-22030	Nut Sub-Assy, Bearing Guide
44015	90301-53181	Ring, O(For Bearing Guide Nut)
44015	90311-30016	Seal, Oil(For Bearing Guide Nut)
44020	44020-22062	Valve Assy, Pressure Control W/solenoid Valve
44020	96711-19014	O-Ring
44201	44201-22220	Valve Sub-Assy, Power Steering Control
44201	90562-33007	Ring(For Power Steering Control Valve)
44201	90364-13005	Bearing(For Power Steering Control Valve Lower)
44201	90562-49002	Ring(For Power Steering Control Valve)
44203	44203-30110	Housing Sub-Assy, Power Steering Rack
44204	44204-30080	Rack Sub-Assy, Power Steering
44204	90301-37007	Ring(For Rack Steering Piston)
44204	90562-41001	Ring(For Rack Steering Piston)
44206	90561-28005	Spacer, No.1(For Power Steering Cylinder Tube)
44210	44210-22261	Valve Assy, Power Steering Control
44210	90301-62005	Ring, O(For Power Steering Control Valve)
44210	90311-19013	Seal, Oil(For Power Steering Control Valve)
44210	90363-19003	Bearing(For Rear Steering Control Valve Housing)
44211	44211-22130	Housing, Control Valve
44250	44250-30151	Gear Assy, Power Steering(For Rack & Pinion)
44253	90310-26023	Seal, Oil(For Power Steering Rack Housing)
44267	44267-22030	Guide, Rack End
44275	44275-22020	Stopper, Cylinder End
44275	90301-40004	Ring, O(For Rack End Guide)
44277	44277-22020	Seat, Rack Guide
44418	44418-22161	Tube, Steering Right Turn Pressure
44418	90401-10021	Bolt, Union(For Steering Turn Pressure Tube)
44418	90430-10008	Gasket(For Steering Turn Pressure Tube)
44419	44419-22160	Tube, Steering Left Turn Pressure
45046	90171-12002	Nut, Castle(For Tie Rod End)
45222	45222-22040	Cover, Steering Gear Dust
45222	45222-51010	Cover, Dust(For Power Steering Gear)
45460	45460-39455	End Sub-Assy, Tie Rod, Rh
45470	45470-39165	End Sub-Assy, Tie Rod, Lh
45503	45503-29535	End Sub-Assy, Steering Rack
45503	90214-14007	Washer, Claw(For Power Steering Rack End)
45514	45514-22130	Bracket, Steering Rack Housing, No.1
45515	45515-22130	Bracket, Steering Rack Housing, No.2
45516	45516-22050	Grommet, Steering Rack Housing, No.1
45517	45517-22080	Grommet, Steering Rack Housing, No.2
45523	45523-22040	Guide, Rack(For Steering Gear)
45523	90501-26063	Spring(For Power Steering Rack Guide)
45524	45524-20040	Cap, Rack Guide Spring(For Power Steering)
45524	90179-36002	Nut(For Power Steering Pinion Cap)
45535	45535-30010	Boot, Steering Rack, No.1
45535	90467-19012	Clip
45535	90467-19019	Clip
45535	90460-49004	Clamp(For Steering Rack Boot No.1)
9011910783	90119-10783	New Genuine Part
9017014012	90170-14012	Nut, Rack End Lock
9020822002	90208-22002	LEXWASHERCONE SPRG
9046106223	90461-06223	New Genuine Part
9046816022	90468-16022	CLIP
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9161260825	91612-60825	Bolt(For Clutch Release Cylinder Setting)
9161260825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)

OEM	Part name	Category
04445-30220	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
40120-30151	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44015-22030	Nut Sub-Assy, Bearing Guide	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44020-22062	Valve Assy, Pressure Control W/solenoid Valve	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44201-22220	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44203-30110	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44204-30080	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44210-22261	Valve Assy, Power Steering Control	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44211-22130	Housing, Control Valve	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44250-30151	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44267-22030	Guide, Rack End	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44275-22020	Stopper, Cylinder End	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44277-22020	Seat, Rack Guide	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44418-22161	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
44419-22160	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45222-22040	Cover, Steering Gear Dust	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45222-51010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45460-39455	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45470-39165	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45503-29535	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45514-22130	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45515-22130	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45516-22050	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45517-22080	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45523-22040	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45524-20040	Cap, Rack Guide Spring(For Power Steering)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
45535-30010	Boot, Steering Rack, No.1	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90119-10783	New Genuine Part	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90171-12002	Nut, Castle(For Tie Rod End)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90208-22002	LEXWASHERCONE SPRG	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90214-14007	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90301-37007	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90301-40004	Ring, O(For Rack End Guide)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90301-53181	Ring, O(For Bearing Guide Nut)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90301-62005	Ring, O(For Power Steering Control Valve)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90310-26023	Seal, Oil(For Power Steering Rack Housing)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90311-19013	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90311-30016	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90363-19003	Bearing(For Rear Steering Control Valve Housing)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90364-13005	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90401-10021	Bolt, Union(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90430-10008	Gasket(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90460-49004	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90461-06223	New Genuine Part	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90467-19012	Clip	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90467-19019	Clip	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90468-16022	CLIP	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90501-26063	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90561-28005	Spacer, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90562-33007	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90562-41001	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
90562-49002	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
91511-60825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
91612-60825	Bolt(For Clutch Release Cylinder Setting)	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
96711-19014	O-Ring	Front Steering Gear & Link ([12.1995 - ] (9512- )JZS153,157)
