Search › Model › JZS153

JZS153

Toyota CROWN-MAJESTA · 1995 · 5,937 parts · 248 categories
JZS153 ×

← Back to categories

5,937 items

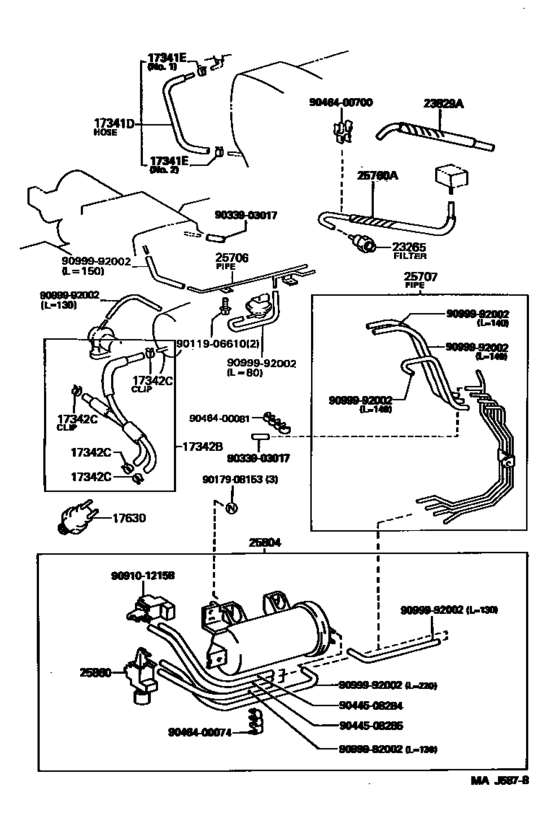

Vacuum Piping ([08.1995 - 09.1996] (9508-9609)1JZGE) 32
#OEMPart name
17341 17341-46170 Hose, No.1(For Idle-Up)
17341 96132-51100 Clip (For Hose)
17341 96132-51300 Clip(For Ventilation Hose No.2)
17342 17342-46120 Hose, No.2(For Idle-Up)
17342 96132-51000 Clip Or Clamp(For Ventilation Hose)
17630 17630-46080 Valve Assy, Air Control
17630 17630-70020 Valve Assy, Air Control
17630 17630-16040 Valve Assy, Air Control
23265 90917-11031 Filter, Gas, No.1
23829 23829-46100 Hose, Fuel Vapor Feed
23829 23829-46150 Hose, Fuel Vapor Feed
25706 25706-46010 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-46080 Pipe Sub-Assy, Vacuum Transmitting, No.1
25707 25707-46021 Pipe Sub-Assy, Vacuum Transmitting, No.2
25707 25707-46090 Pipe Sub-Assy, Vacuum Transmitting, No.2
25707 25707-46052 Pipe Sub-Assy, Vacuum Transmitting, No.2
25760 25760-46050 Hose Assy, Vacuum Transmitting
25804 25804-46050 Valve Set, Vacuum Control
25804 25804-46060 Valve Set, Vacuum Control
25860 25860-46010 Valve Assy, Vacuum Switching, No.1
25860 90910-12124 Valve Assy, Vacuum Switching, No.1
9011906610 90119-06610 New Genuine Part
9011906610 90119-06493 BOLT WITH WASHER
9017908153 90179-08153 NUT
9033903017 90339-03017 Plug
9044508284 90445-08284 New Genuine Part
9044508285 90445-08285 New Genuine Part
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9046400081 90464-00081 Clamp (For Idle Up Divice), No.1
9046400700 90464-00700 New Genuine Part
9091012158 90910-12158 Valve, Duty Vacuum Switching
9099992002 90999-92002 Air Hose (300 mm)
