JZS153

Toyota CROWN-MAJESTA · 1995 · 5,937 parts · 248 categories

← Back to categories

5,937 items

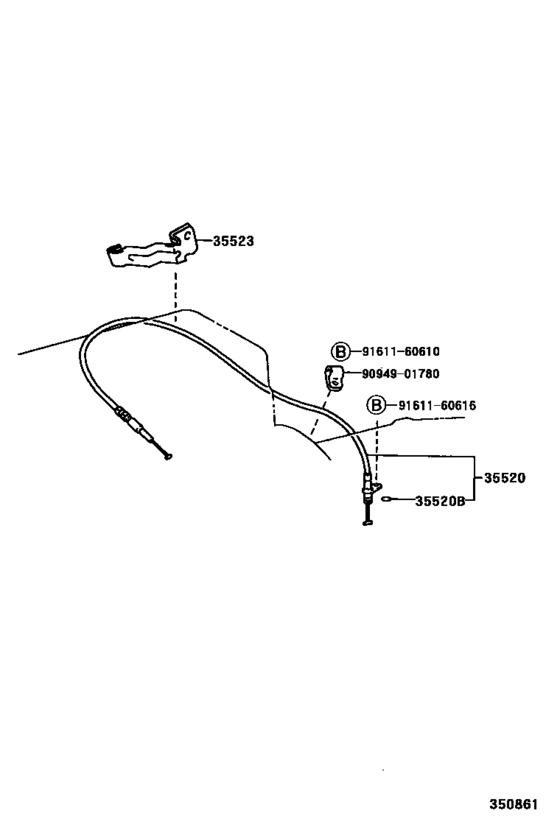

Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153) 9

#	OEM	Part name
35520	35520-22290	Cable Assy, Throttle
35520	90301-09012	Ring, O (For Automatic Transmission Case Plug)
35520	35520-22251	Cable Assy, Throttle
35523	35523-22100	Clamp, Throttle Cable
9094901780	90949-01780	New Genuine Part
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)

OEM	Part name	Category
35520-22251	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
35520-22290	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
35523-22100	Clamp, Throttle Cable	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
90301-09012	Ring, O (For Automatic Transmission Case Plug)	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
90949-01780	New Genuine Part	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
91611-60616	Bolt(For Transaxle Case Receiver)	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
91611-B0616	Bolt(For Transaxle Case Receiver)	Throttle Link & Valve Lever (Atm) ([08.1995 - ] A340E,A340H (9508- )JZS151,153)
