JZS153

Toyota CROWN-MAJESTA · 1995 · 5,937 parts · 248 categories

5,937 items

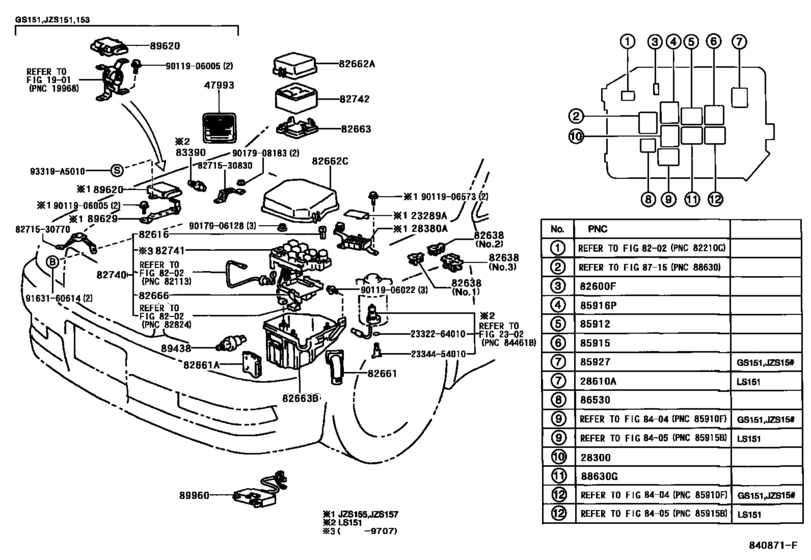

Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) 47

#	OEM	Part name
28300	28300-46010	Relay Assy, Starter
82600	90982-07011	Fuse, Fuse Block
82600	90982-09007	Fusible Link
82600	90982-09008	Fusible Link
82600	90982-09009	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09011	Fusible Link
82600	90982-09013	Fusible Link
82616	82616-20010	Puller, Fuse
82638	82638-30010	Retainer, Relay Block
82638	82638-30020	Retainer, Relay Block
82661	82661-30420	Cover, Relay Block, No.1
82661	82661-30410	Cover, Relay Block, No.2
82662	82662-30400	Cover, Relay Block, Upper, No.1
82662	82662-30370	Cover, Relay Block, Upper, No.3
82662	82662-30371	Cover, Relay Block, Upper, No.3
82662	82662-24032	Cover, Relay Block, Upper, No.1
82662	82662-30320	Cover, Relay Block, Upper, No.3
82663	82663-30110	Cover, Relay Block, Lower
82663	82663-30100	Cover, Relay Block, Lower, No.3
82666	82666-30410	Holder, Connector
82740	82740-30061	Block Assy, Engine Room Relay
82740	82740-30062	Block Assy, Engine Room Relay
82740	82740-30060	Block Assy, Engine Room Relay
82741	82741-30010	Block, Engine Room Relay
82742	82742-30020	Block, Engine Room Relay, No.2
82742	82742-30010	Block, Engine Room Relay, No.2
85912	90987-02012	Relay, Ignition, No.1
85916	85916-30060	Relay, Light Control
85916	90987-02006	Relay
86530	86530-20070	Relay Assy, Horn
89620	89621-30030	Igniter Assy
89620	89621-26010	Igniter Assy
89629	89629-30200	Bracket, Igniter Assy
93319	93319-A5010	New Genuine Part
2332264010	23322-64010	Drain Plug (For a Level Warning Switch)
2334454010	23344-54010	O-Ring (For Drain Plug)
8271530770	82715-30770	Bracket,wiring Harness Clamp
8271530830	82715-30830	Bracket,wiring Harness Clamp
9011906005	90119-06005	New Genuine Part
9011906022	90119-06022	BOLT
9011906022	90080-11127	New Genuine Part
9011906573	90119-06573	New Genuine Part
9017906128	90179-06128	NUT
9017908183	90179-08183	NUT
9163160614	91631-60614	BOLT
9163160614	91661-60616	BOLT

OEM	Part name	Category
23322-64010	Drain Plug (For a Level Warning Switch)	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
23344-54010	O-Ring (For Drain Plug)	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
28300-46010	Relay Assy, Starter	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82616-20010	Puller, Fuse	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82638-30010	Retainer, Relay Block	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82638-30020	Retainer, Relay Block	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82661-30410	Cover, Relay Block, No.2	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82661-30420	Cover, Relay Block, No.1	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82662-24032	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82662-30320	Cover, Relay Block, Upper, No.3	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82662-30370	Cover, Relay Block, Upper, No.3	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82662-30371	Cover, Relay Block, Upper, No.3	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82662-30400	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82663-30100	Cover, Relay Block, Lower, No.3	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82663-30110	Cover, Relay Block, Lower	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82666-30410	Holder, Connector	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82715-30770	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82715-30830	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82740-30060	Block Assy, Engine Room Relay	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82740-30061	Block Assy, Engine Room Relay	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82740-30062	Block Assy, Engine Room Relay	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82741-30010	Block, Engine Room Relay	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82742-30010	Block, Engine Room Relay, No.2	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
82742-30020	Block, Engine Room Relay, No.2	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
85916-30060	Relay, Light Control	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
86530-20070	Relay Assy, Horn	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
89621-26010	Igniter Assy	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
89621-30030	Igniter Assy	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
89629-30200	Bracket, Igniter Assy	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90080-11127	New Genuine Part	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90119-06005	New Genuine Part	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90119-06022	BOLT	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90119-06573	New Genuine Part	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90179-06128	NUT	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90179-08183	NUT	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90982-07011	Fuse, Fuse Block	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90982-09007	Fusible Link	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90982-09008	Fusible Link	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90982-09009	Fusible Link	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90982-09010	Fusible Link	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90982-09011	Fusible Link	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90982-09013	Fusible Link	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90987-02006	Relay	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
90987-02012	Relay, Ignition, No.1	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
91631-60614	BOLT	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
91661-60616	BOLT	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
93319-A5010	New Genuine Part	Switch & Relay & Computer ([08.1995 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)
