Search › Model › JZS153

JZS153

Toyota CROWN-MAJESTA · 1995 · 5,937 parts · 248 categories
JZS153 ×

← Back to categories

5,937 items

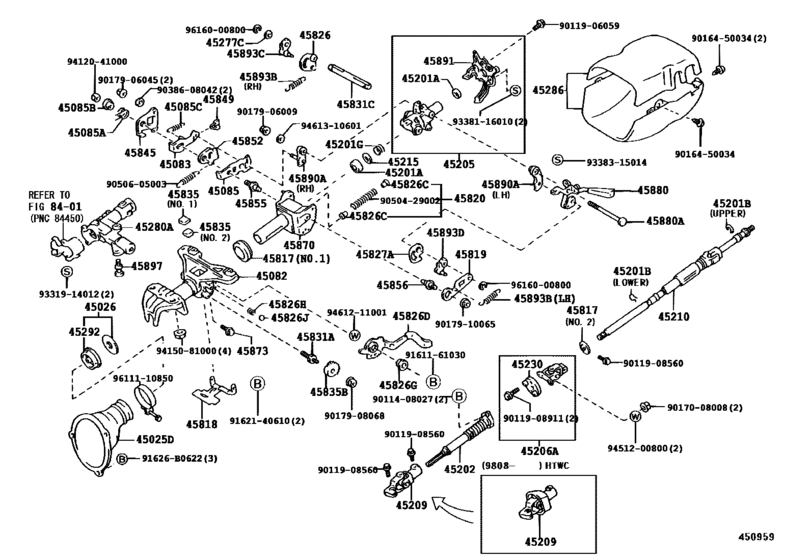

Steering Column & Shaft ([07.1997 - ] (9707- )ROY,ROYEX,ROYT,SALEX,SPDLX) 109
#OEMPart name
45025 45025-30270 Cover Sub-Assy, Steering Column Hole, No.1
45026 45026-30030 Cover Sub-Assy, Steering Column, Lower
45082 45082-30190 Bracket Sub-Assy, Break Away W/capsule
45083 45083-22010 Plate Sub-Assy, Tilt Release Memory
45085 45085-22010 Plate Sub-Assy, Tilt Memory, No.1
45085 90508-12087 Spring, Torsion(For Tilt Steering Return)
45085 90561-10007 Spacer(For Tilt Memory Plate Sub-Assy No.1)
45085 90506-06012 Spring, Tension(For Tilt Memory Plate Sub-Assy No.1)
45201 90363-18005 Bearing(For Steering Main Shaft)
45201 90520-16002 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45202 45202-30020 Shaft Sub-Assy, Steering Intermediate
45205 45205-30310 Tube Sub-Assy, Steering Column
45206 45206-30040 Yoke Sub-Assy, Steering Sliding W/coupling
45209 45209-22020 Yoke Sub-Assy, Steering Sliding
45210 45210-22150 Shaft Assy, Steering Main
45210 45210-30191 Shaft Assy, Steering Main
45210 45210-30190 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45230 45230-32010 Coupling Assy, Flexible
45277 90560-10059 Spacer(For Tilt Steering Support)
45280 45280-22360 Bracket Assy, Steering Column, Upper
45286 45286-30992-B0 Cover, Steering Column
45286 45286-30992-E0 Cover, Steering Column
45292 45292-30060 Seal, Main Shaft Lower Dust
45817 45817-22030 Stopper, Steering Shaft Thrust
45817 45817-30030 Stopper, Steering Shaft Thrust
45818 45818-22070 Bracket, Connector
45819 45819-22060 Retainer, Tilt Lever
45820 45820-32020 Spring Assy, Tilt Steering Support
45826 45826-22050 Lever, Steering Tilt
45826 90386-06043 Bush(For Steering Column Tube)
45826 45826-30130 Lever, Steering Telescopic
45826 90389-10022 Collar(For Steering Telescopic Lever)
45826 90501-12014 Spring, Compression(For Steering Telescopic Lever)
45826 90360-06001 Ball (For Hoist Cylinder)
45827 45827-22030 Lever, Steering Tilt Sub
45831 45831-22010 Bolt, Telescope Lever Lock
45831 45831-22020 Bolt, Tilt Lever Lock, No.1
45835 45835-22030 Wedge, Lock
45835 45835-22040 Wedge, Lock
45835 45835-22010 Attachment, Tilt Lever Serration
45845 45845-22010 Support, Tilt Memory
45849 45849-22010 Retainer, Tilt Adjuster Memory Spring
45852 45852-22010 Plate, Tilt Memory, No.2
45852 45852-22020 Plate, Tilt Memory, No.2
45852 45852-22030 Plate, Tilt Memory, No.2
45855 45855-22010 Bolt, Tilt Steering, No.1
45855 45855-22020 Bolt, Tilt Steering, No.1
45856 45856-22010 Bolt, Tilt Steering, No.1
45870 45870-30270 Tube Assy, Steering Column
45873 45873-50020 Stopper, Steering Column Tube
45880 45880-30010 Lever Assy, Steering Tilt
45880 90109-06162 Bolt(For Steering Tilt Lever)
45890 45890-20110 Pawl Assy, Tilt Steering
45890 45890-22090 Pawl Assy, Tilt Steering
45891 45891-30030 Bracket, Turn Signal
45893 90507-08010 Spring, Tension(For Steering Tilt Lever)
45893 90507-10019 Spring, Tension(For Tilt Steering Pawl Stopper)
45893 90507-12035 Spring, Tension(For Steering Tilt Lever)
45893 45893-24010 Stopper, Tilt Steering Pawl
45893 45893-24020 Stopper, Tilt Steering Pawl
45893 45893-24030 Stopper, Tilt Steering Pawl
45893 45893-24040 Stopper, Tilt Steering Pawl
45893 45893-24050 Stopper, Tilt Steering Pawl
45893 45893-24060 Stopper, Tilt Steering Pawl
45893 45893-24070 Stopper, Tilt Steering Pawl
45893 45893-20260 Stopper, Tilt Steering Pawl
45893 45893-20270 Stopper, Tilt Steering Pawl
45893 45893-20280 Stopper, Tilt Steering Pawl
45893 45893-20290 Stopper, Tilt Steering Pawl
45893 45893-20300 Stopper, Tilt Steering Pawl
45893 45893-20310 Stopper, Tilt Steering Pawl
45893 45893-20320 Stopper, Tilt Steering Pawl
45897 45897-12020 Bolt, Steering Lock Set
91626 91626-B0622 New Genuine Part
91626 91651-B0620 New Genuine Part
9011408027 90114-08027 Bolt, Flexible Attaching(For Steering Main Shaft)
9011906059 90119-06059 New Genuine Part
9011906059 91621-B0625 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9011908911 90119-08911 New Genuine Part
9016450034 90164-50034 Direct
9016450034 93568-55014 Screw
9017008008 90170-08008 New Genuine Part
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
9017906045 90179-06045 New Genuine Part
9017908068 90179-08068 NUT
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9038608042 90386-08042 Collar(For Tilt Memory Plate No.2)
9050429002 90504-29002 Spring(For Steering Column Tube)
9050605003 90506-05003 Spring, Tension(For Tilt Memory Plate Sub-Assy No.1)
9161161030 91611-61030 Bolt (For Transmission Control Cable Bracket)
9161161030 91612-61030 Bolt (For Transmission Control Cable Bracket)
9162140610 91621-40610 BOLT
9331914012 93319-14012 New Genuine Part
9338116010 93381-16010 New Genuine Part
9338315014 93383-15014 Screw(For Steering Tilt Lever)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9415081000 94150-81000 NUT FLANGE
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
9461310601 94613-10601 Washer (For Primary Regulator Valve)
9611110850 96111-10850 Clamp, Hose(For Air Connector)
9616000800 96160-00800 Ring, E(For Counter Weight)
