Search › Model › JZS153

JZS153

Toyota CROWN-MAJESTA · 1995 · 5,937 parts · 248 categories
JZS153 ×

← Back to categories

5,937 items

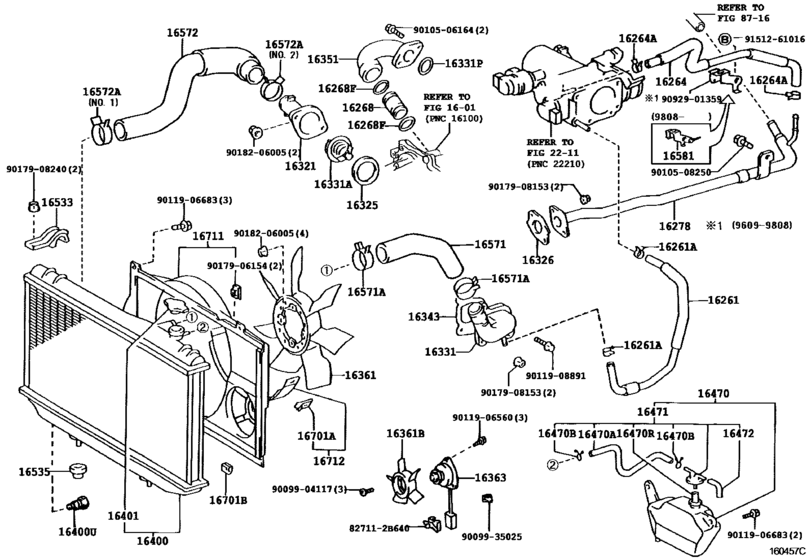

Radiator & Water Outlet ([08.1995 - ] (9508- )1JZGE,2JZGE..ROY,ROYEX,ROYG,ROYT,SALE X) 74
#OEMPart name
16261 16261-46020 Hose, Water By-Pass
16261 90467-13050 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51300 Clamp, Hose
16264 16264-46041 Hose, Water By-Pass, No.2
16264 16264-46040 Hose, Water By-Pass, No.2
16268 16268-46011 Pipe, Water By-Pass, No.1
16268 96761-24022 Ring, O(For Water By-Pass Pipe)
16278 16278-46040 Pipe, Water By-Pass, No.2
16278 16278-46010 Pipe, Water By-Pass, No.2
16321 16321-46040 Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16326 16325-46010 Gasket, Water Inlet Housing, No.2
16331 16331-46022 Outlet, Water
16331 90916-03093 Thermostat
16331 96761-24028 Ring,o(For Water Outlet)
16331 16331-46021 Outlet, Water
16343 16343-46020 Gasket, Water Outlet Housing
16351 16351-46050 Outlet, Water By-Pass
16351 16351-46010 Outlet, Water By-Pass
16361 16361-46040 Fan
16400 16400-46361 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16400 16400-46360 Radiator Assy
16400 90341-16016 Plug, Straight Screw W/head(For Radiator)
16401 16401-72090 Cap Sub-Assy, Radiator
16401 16401-20353 Cap Sub-Assy, Radiator
16401 16401-36030 Cap Sub-Assy, Radiator
16403 16403-46360 Core Sub-Assy, Radiator
16406 16406-62060 Support(For Oil Cooler)
16442 16442-74760 Ring, O(For Radiator Upper Tank)
16462 16462-46040 Ring, O(For Radiator Upper Tank)
16470 16470-46060 Tank Assy, Radiator Reserve
16470 16472-46060 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-46060 Cap Sub-Assy, Reserve Tank
16472 85338-74040 Hose(For Radiator Drain Cock)
16491 16491-46360 Cooler, Oil(For Atm)
16491 16492-50020 Ring, O(For Atm Oil Cooler)
16491 16493-62060 Washer, Plate(For Atm Oil Cooler)
16495 16495-50010 Nut, Flare(For Atm Oil Cooler)
16495 16495-74760 Nut, Flare(For Atm Oil Cooler)
16533 16505-46050 Support, Radiator, Upper
16535 90480-40010 Support, Radiator, Lower
16535 90480-40022 Support, Radiator, Lower
16571 16571-46160 Hose, Radiator, Inlet
16571 90467-37006 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-46180 Hose, Radiator, Outlet
16572 90466-41003 Clip, Radiator Hose, No.1
16572 90467-41007 Clamp Or Clip, Hose(For Radiator Inlet)
16572 90466-41008 Clamp, Hose(For Radiator Hose)
16581 16581-46040 Clamp, Hose(For Water Hose)
16701 90468-06073 Clip(For Fan Shroud)
16701 90541-11002 Cushion, Fan Shroud
16711 16711-46120 Shroud, Fan
16712 16702-46040 Shroud, Fan, No.2
827112 82711-2B640 Wire, Fuse To Fuse(for Combustion Heater)
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009935025 90099-35025 New Genuine Part
9010506164 90105-06164 New Genuine Part
9010508250 90105-08250 Bolt, Flange
9011906560 90119-06560 Bolt
9011906683 90119-06683 New Genuine Part
9011908891 90119-08891 BOLT
9017906154 90179-06154 New Genuine Part
9017908153 90179-08153 NUT
9017908240 90179-08240 New Genuine Part
9018206005 90182-06005 NUT W-WASHER
9092901359 90929-01359 New Genuine Part
9151261016 91512-61016 New Genuine Part
9151261016 91512-B1016 New Genuine Part
