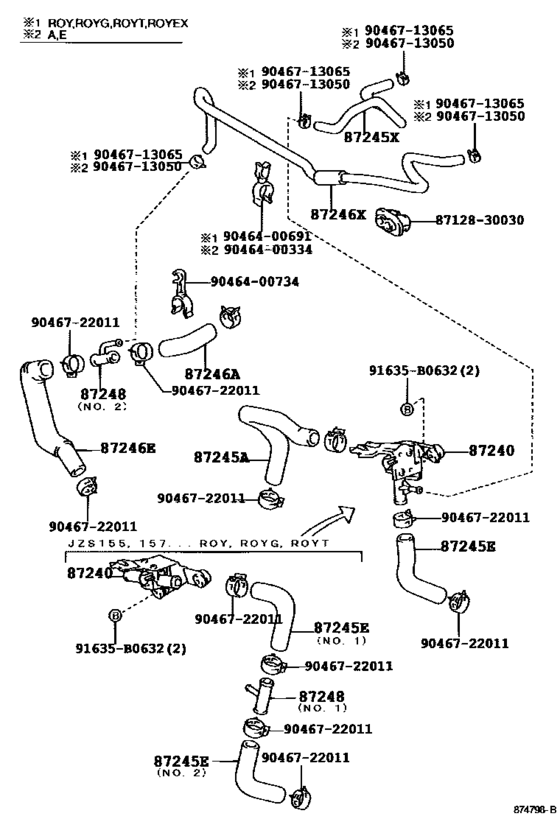

| 87128-30030 |
Grommet, Heater |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87240-30650 |
Valve Assy, Heater Water |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87240-30660 |
Valve Assy, Heater Water |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87242-30050 |
Hose, Heater Water |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87245-3A730 |
Hose, Heater Water, Inlet A |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87245-3F020 |
Hose, Heater Water, Outlet A |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87245-3F100 |
Hose, Heater Water, Inlet E |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87245-3F110 |
Hose, Heater Water, Inlet E |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87245-3F150 |
Hose, Heater Water, Outlet A |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87245-3F160 |
Hose, Heater Water, Outlet E |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87246-30260 |
Hose, Heater Water |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 87248-30390 |
Pipe Sub-Assy, Water |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 90464-00334 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 90464-00691 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 90464-00734 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 90467-13050 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 90467-13065 |
Clip(For Fuel Pipe Support) |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 90467-22011 |
Clip(For Water By-Pass Hose No.1) |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 91631-B0630 |
BOLT WWASHER |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 91635-B0632 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
| 96135-51300 |
Clamp, Hose |
Heating & Air Conditioning - Water Piping ([08.1995 - ] ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ) (9508- )JZS15#) |
