Search › Model › JZS153

JZS153

Toyota CROWN-MAJESTA · 1995 · 5,937 parts · 248 categories

5,937 items

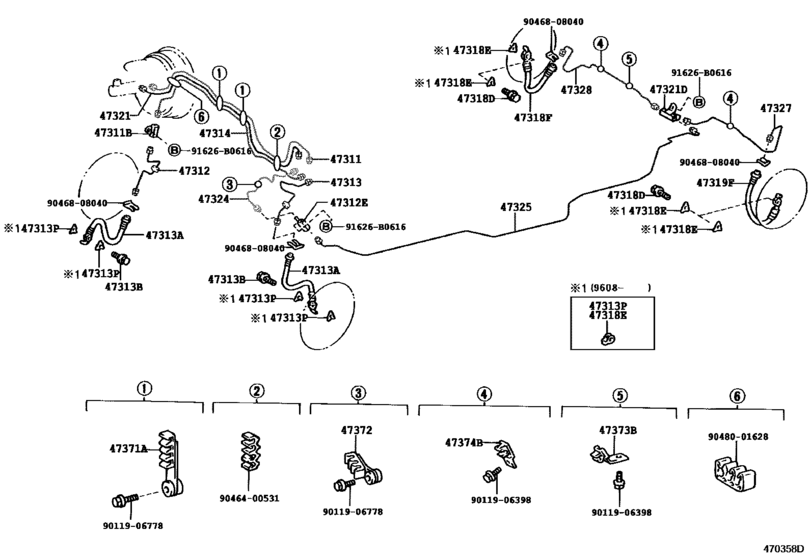

Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157) 36

#	OEM	Part name
47311	47311-30590	Tube, Front Brake, No.1
47311	90412-10213	Way(For Front Brake Tube)
47311	47311-30551	Tube, Front Brake, No.1
47312	47312-30420	Tube, Front Brake, No.2
47312	47312-30431	Tube, Front Brake, No.2
47313	47313-30350	Tube, Front Brake, No.3
47313	90947-02841	Hose, Flexible, No.1(For Front)
47313	90947-02C45	Hose, Flexible, No.1(For Front)
47313	90401-10042	Bolt, Union(For Front Flexible Hose)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47313	47313-30310	Tube, Front Brake, No.3
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314	47314-30380	Tube, Front Brake, No.4
47318	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47318	90947-02840	Hose, Flexible(For Rear Rh)
47321	47321-30310	Tube, Rear Brake, No.1
47321	90413-10281	Way, 3(For Rear Brake Tube)
47321	47321-30181	Tube, Rear Brake, No.1
47324	47324-30200	Tube, Rear Brake, No.4
47324	47324-30190	Tube, Rear Brake, No.4
47325	47325-30030	Tube, Rear Brake, No.5
47327	47327-30050	Tube, Rear Brake, No.7
47328	47328-30020	Tube, Rear Brake, No.8
47371	47371-30420	Clamp, Brake Tube, No.1
47372	47371-30390	Clamp, Brake Tube, No.1
47373	47371-22420	Clamp, Brake Tube, No.1
47374	47371-22530	Clamp, Brake Tube, No.2
91626	91626-B0616	BOLT WWASHER
91626	91621-J0612	BOLT W-WASHER
9011906398	90119-06398	BOLT WWASHER
9011906778	90119-06778	New Genuine Part
9011906778	90119-06330	Bolt
9046400531	90464-00531	Clamp, Brake Tube, No.4
9046808040	90468-08040	CLIP
9048001628	90480-01628	Grommet(For Brake Tube)

OEM	Part name	Category
47311-30551	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47311-30590	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47312-30420	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47312-30431	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47313-30310	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47313-30350	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47314-30380	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47321-30181	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47321-30310	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47324-30190	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47324-30200	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47325-30030	Tube, Rear Brake, No.5	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47327-30050	Tube, Rear Brake, No.7	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47328-30020	Tube, Rear Brake, No.8	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47371-22420	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47371-22530	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47371-30390	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47371-30420	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90119-06330	Bolt	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90119-06398	BOLT WWASHER	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90119-06778	New Genuine Part	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90401-10042	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90412-10213	Way(For Front Brake Tube)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90413-10281	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90464-00531	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90468-08040	CLIP	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90480-01628	Grommet(For Brake Tube)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90947-02840	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90947-02841	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
90947-02C45	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
91621-J0612	BOLT W-WASHER	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)
91626-B0616	BOLT WWASHER	Brake Tube & Clamp ([09.1996 - ] (9609- )JZS153,157)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 248
Collected: 2026-08-03
