Search › Model › JZS151

JZS151

Toyota CROWN-MAJESTA · 1995 · 6,037 parts · 252 categories
JZS151 ×

← Back to categories

6,037 items

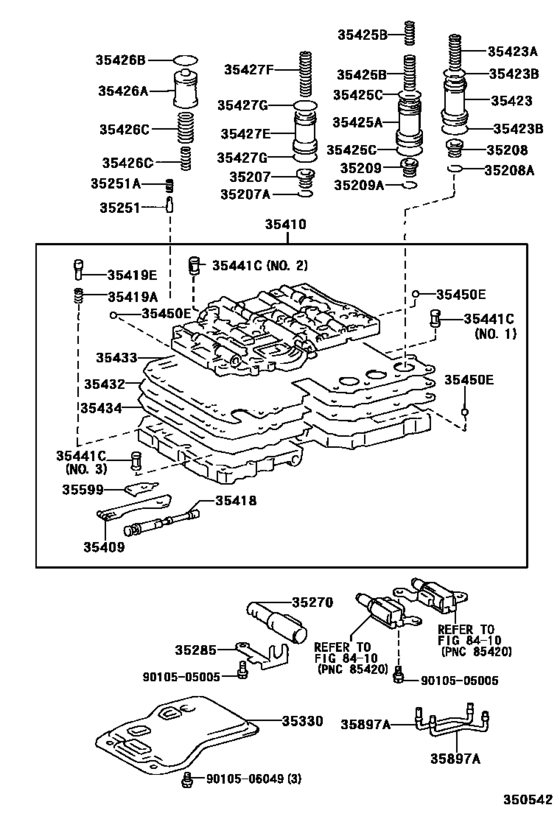

Valve Body & Oil Strainer (Atm) ([09.1996 - ] A340E (9609- )JZS151) 113
#OEMPart name
35207 35207-22010 Spring Sub-Assy, B-0 Accumulator
35207 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35208 35208-30010 Spring Sub-Assy, B-2 Accumulator
35209 35209-22020 Spring Sub-Assy, C-2 Accumulator
35209 35209-24010 Spring Sub-Assy, C-2 Accumulator
35211 35211-50010 Sleeve, Lock Up Control Valve
35214 35214-50010 Valve, Lock Up Control
35214 90501-07111 Spring, Compression (For Lock Up Control Valve)
35219 35219-50010 Plunger, Lock Up Control Valve
35251 35251-30020 Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body)
35270 35270-14010 Solenoid Assy, Shift Control
35285 35285-24010 Plate, Solenoid Lock
35330 35330-30011 Strainer Assy, Valve Body Oil
35330 35330-30020 Strainer Assy, Valve Body Oil
35409 35409-22020 Spring Sub-Assy, Manual Detent
35410 35410-22631 Body Assy, Transmission Valve
35410 35410-30770 Body Assy, Transmission Valve
35415 35415-30030 Valve, Primary Regulator
35415 35415-30050 Valve, Primary Regulator
35415 90501-14117 Spring, Compression (For Primary Regulator Valve)
35415 90501-16077 Spring, Compression (For Lock Up Relay Valve)
35415 90201-08021 Washer, Plate (For Pressure Regulator Valve)
35415 90201-08067 Washer (For Primary Regulator Valve)
35416 35416-30050 Plunger, Primary Regulator Valve, No.1
35416 35416-50010 Plunger, Primary Regulator Valve, No.1
35417 35417-30070 Sleeve, Primary Regulator Valve
35417 35417-50010 Sleeve, Primary Regulator Valve
35418 35418-24010 Valve, Manual
35418 35418-30070 Valve, Manual
35419 90501-09093 Spring, Compression (For Check Valve)
35419 90501-10079 Spring, Compression (For Check Valve)
35419 35419-50010 Valve, Check, No.1
35420 90360-08003 Ball (For Lower Valve Body)
35420 90501-12142 Spring (For Lower Valve Body)
35422 35422-50010 Plunger, Primary Regulator Valve, No.2
35423 35423-30030 Piston, B-2 Accumulator
35423 90501-24015 Spring, Compression (For B-2 Accumulator Piston)
35423 90501-25028 Spring, Compression (For B-2 Accumulator Piston)
35423 90301-23010 Ring (For Accumulator Piston No.1)
35423 90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)
35423 90301-31002 Ring, O (For Low Speed Brake Accumulator Cover)
35423 90301-31010 Ring, O (For B-2 Accumulator Piston)
35425 35425-30020 Piston, C-2 Accumulator
35425 90501-21008 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-22016 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-25027 Spring, Compression (For C-2 Accumulator Piston)
35425 90301-25003 Ring, O (For C-2 Accumulator Piston)
35425 90301-25010 Ring, O(For Oil Pump Suction Pipe)
35426 35426-40010 Piston, C-0 Accumulator
35426 90301-24001 Ring, O (For C-0 Accumulator Piston)
35426 90301-24010 Ring, O (For C-0 Accumulator Piston)
35426 90501-22008 Spring, Compression (For C-2 Accumulator Piston)
35426 90501-23073 Spring, Compression (For C-0 Accumulator Piston)
35427 35427-30040 Piston, B-0 Accumulator
35427 90501-21006 Spring, Compression (For B-0 Accumulator Piston)
35427 90301-20002 Ring, O (For C-3 Accumulator Piston)
35427 90301-20008 Ring, O (For C-2 Accumulator Piston)
35427 90301-26002 Ring, O (For B-0 Accumulator Piston)
35427 90301-26011 Ring, O (For C-3 Accumulator Piston)
35432 35432-22281 Plate, Valve Body, No.1
35432 35432-30460 Plate, Valve Body, No.1
35433 35433-24011 Gasket, Valve Body, No.1
35433 35433-24012 Gasket, Valve Body, No.1
35433 35433-30064 Gasket, Valve Body, No.1
35434 35434-24011 Gasket, Valve Body, No.2
35434 35434-24012 Gasket, Valve Body, No.2
35434 35434-30076 Gasket, Valve Body, No.2
35441 35441-24010 Strainer, Solenoid Oil
35441 35441-24020 Strainer, Solenoid Oil
35441 35441-30020 Strainer, Solenoid Oil
35441 35441-30031 Strainer, Solenoid Oil
35441 35441-50030 Strainer, Solenoid Oil
35445 35445-50010 Valve, Low Modulator
35445 90501-12158 Spring, Compression (For Low Modulator Valve)
35450 35495-22020 Ball (For Transfer Upper Valve Body)
35450 35496-22030 Ball (For Lower Valve Body)
35458 35458-24010 Valve, Cut Back
35458 35458-30030 Valve, Cut Back
35458 90339-04002 Plug(For Low-High Shift Valve)
35458 90339-04056 Plug (For Cut Back Valve)
35458 90501-06026 Spring, Compression (For Cut Back Valve)
35458 90501-07113 Spring, Compression (For Cut Back Valve)
35464 35464-12030 Valve, 1-2 Shift
35464 90501-09053 Spring, Compression (For 2-3 Shift Valve)
35464 90339-05014 Plug, Low-High Signal Valve
35486 35486-30020 Seat, Pressure Relief Valve Spring
35491 35491-24010 Valve, Accumulator Control, No.1
35491 35491-30020 Valve, Accumulator Control, No.1
35491 90501-08096 Spring, Compression (For Accumulator Control Valve No.1)
35491 90501-08166 Spring, Compression (For Accumulator Control Valve No.1)
35491 90282-03016 Key, Straight (For Lock Up Relay Valve Plug)
35493 35493-30020 Seat, Valve (For Overdrive Clutch Exhaust Valve)
35493 35493-50010 Seat, Primary Regulator Valve Plug
35493 35493-30090 Seat, Shift Valve Plug, No.3
35493 35493-24010 Seat, Shift Valve Plug(For Low Modulator Valve)
35493 35493-30080 Seat, 1-2 Shift Valve Plug
35493 35493-30100 Key, Straight (For Solenoid Relay Valve)
35493 90339-05028 Plug (For Accumulator Control Valve No.1)
35599 35599-22020 Cover, Manual Detent Spring
35897 35897-30020 Tube, 1St & Reverse Brake
9010505003 90105-05003 Bolt (For Pressure Regulator Valve No.2)
9010505003 90119-05035 Bolt (For Pressure Regulator Valve No.2)
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505009 90105-05009 New Genuine Part
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506025 90105-06025 New Genuine Part
9010506025 91511-C0635 BOLT, FLANGE
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter)
9010506075 90105-06075 New Genuine Part
9010506075 91511-C0622 Strainer Bolt
9011905023 90119-05023 New Genuine Part
