JZS145

Toyota CROWN-MAJESTA · 1991 · 6,001 parts · 213 categories

6,001 items

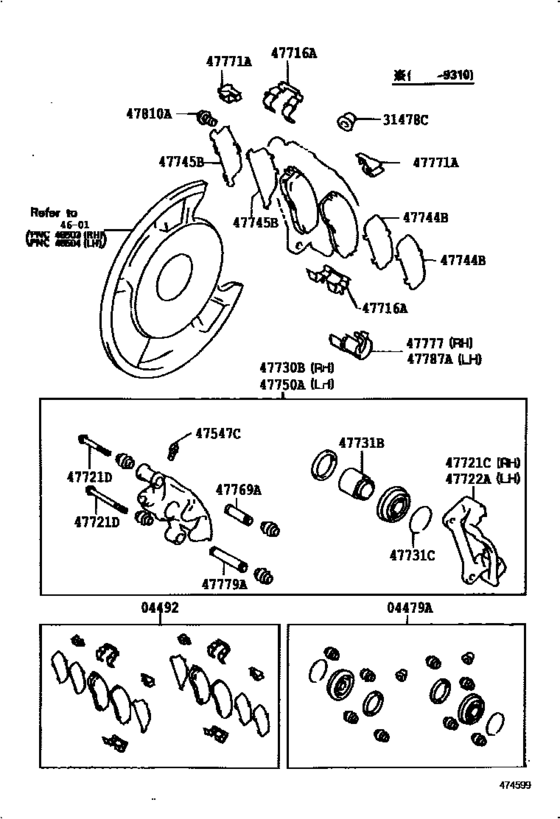

Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141) 22

#	OEM	Part name
4479	04479-30110	Cylinder Kit, Disc Brake, Rear
4479	04479-30111	Cylinder Kit, Disc Brake, Rear
4492	04492-30130	Pad Kit, Disc Brake, Rear
4492	04466-30010	Pad Kit, Disc Brake, Rear
31478	31478-30010	Bleeder Plug Cap
47547	47547-27040	Plug, Bleeder(For Front Disc Brake)
47716	47716-30050	Plate, Pad Support, No.1(For Rear Disc Brake)
47721	47721-30190	Mounting, Rear Disc Brake Cylinder, Rh
47721	90119-09013	Bolt(For Rear Disc Brake Cylinder Mouting)
47721	90119-09014	Bolt(For Rear Disc Brake Cylinder Mouting)
47730	47730-30290	Cylinder Assy, Rear Disc Brake, Rh
47731	47731-30090	Piston, Rear Disc Brake
47731	90522-49001	Ring, Set(For Disc Brake Piston, Rear)
47744	47744-22091	Shim, Anti-Squeal(For Rear Disc Brake)
47745	47745-22051	Shim, Anti-Squeal, No.2(For Rear Disc Brake)
47750	47750-30290	Cylinder Assy, Disc Brake, Rear Lh
47769	47769-30030	Bush, Cylinder Slide, No.1(For Rear Disc Brake)
47771	47771-22040	Plate, Pad Wear Indicator, No.1
47777	47777-30020	Protector, Dust Boot, Rh
47779	47779-20010	Bush, Cylinder Slide, No.2(For Front Disc Brake)
47787	47787-30010	Protector, Dust Boot, Lh
47810	90119-10379	Bolt, Hexagon(For Rear Caliper)

OEM	Part name	Category
04466-30010	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
04479-30110	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
04479-30111	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
04492-30130	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
31478-30010	Bleeder Plug Cap	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47547-27040	Plug, Bleeder(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47716-30050	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47721-30190	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47730-30290	Cylinder Assy, Rear Disc Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47731-30090	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47744-22091	Shim, Anti-Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47745-22051	Shim, Anti-Squeal, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47750-30290	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47769-30030	Bush, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47771-22040	Plate, Pad Wear Indicator, No.1	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47777-30020	Protector, Dust Boot, Rh	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47779-20010	Bush, Cylinder Slide, No.2(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
47787-30010	Protector, Dust Boot, Lh	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90119-09013	Bolt(For Rear Disc Brake Cylinder Mouting)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90119-09014	Bolt(For Rear Disc Brake Cylinder Mouting)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90119-10379	Bolt, Hexagon(For Rear Caliper)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
90522-49001	Ring, Set(For Disc Brake Piston, Rear)	Rear Disc Brake Caliper & Dust Cover ([10.1991 - ] (9110- )GS141,JZS141,143,145,LS141)
