Search › Model › JZS145

JZS145

Toyota CROWN-MAJESTA · 1991 · 6,001 parts · 213 categories
JZS145 ×

← Back to categories

6,001 items

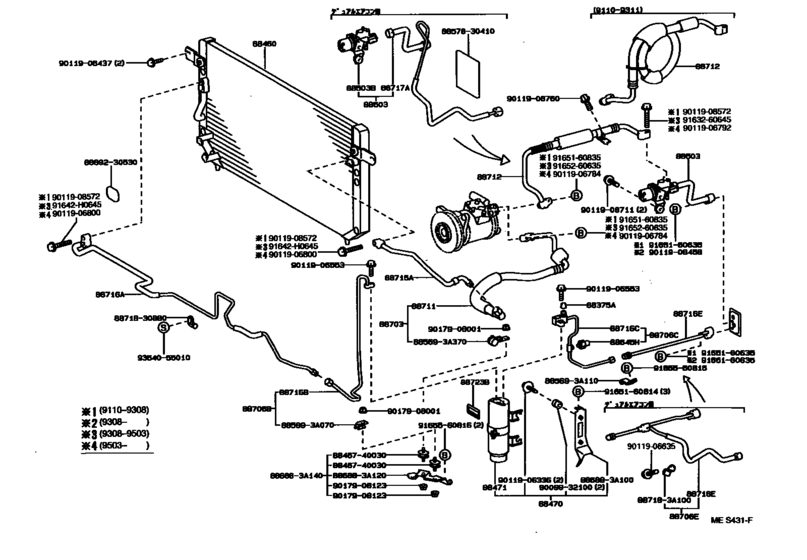

Heating & Air Conditioning - Cooler Piping ([10.1991 - 08.1995] ﾌﾛﾝﾄ (9110-9508)JZS141,143,145) 87
#OEMPart name
88375 88375-24010 Cap, Service Valve (For Cooler Pipe)
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88460 88460-30610 Condenser Assy, Cooler
88460 88460-30650 Condenser Assy, Cooler
88470 88470-30490 Receiver & Dryer Assy, Cooler
88470 88470-30520 Receiver & Dryer Assy, Cooler
88471 88471-30350 Receiver & Dryer Assy, Cooler
88471 88471-30380 Receiver & Dryer Assy, Cooler
88471 88471-30370 Tank, Receiver Air Conditioner
88503 88503-30540 Regulator Assy, Pressure
88503 88503-30471 Regulator Assy, Pressure
88503 88727-3A260 Pipe, Cooler Refrigerant Suction, A
88503 88503-30640 Regulator Assy, Pressure
88503 88503-30650 Regulator Assy, Pressure
88645 88645-22070 Switch, Pressure No.1
88645 88645-30340 Switch, Pressure No.1
88645 88645-50010 Switch, Pressure No.1
88703 88703-30490 Hose Sub-Assy, Discharge
88703 88703-30580 Hose Sub-Assy, Discharge
88703 88569-3A370 Clamp (for Cooler Relay)
88703 88711-3A090 Hose, Cooler Refrigerant Discharge, No.1
88703 93315-54010 SCREW WWASHER
88706 88706-30250 Tube Sub-Assy, Liquid, A
88706 88706-30670 Tube Sub-Assy, Liquid, B
88706 88706-30440 Tube Sub-Assy, Liquid, A
88706 88706-30450 Tube Sub-Assy, Liquid, A
88706 88706-30680 Tube Sub-Assy, Liquid, C
88706 88706-30320 Tube Sub-Assy, Liquid, A
88706 88706-30620 Tube Sub-Assy, Liquid, E
88711 88711-30860 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-3A260 Hose, Cooler Refrigerant Suction, No.1
88712 88712-3A460 Hose, Cooler Refrigerant Suction, No.1
88712 88712-3A461 Hose, Cooler Refrigerant Suction, No.1
88715 88715-30430 Pipe, Cooler Refrigerant Discharge, A
88715 88715-30540 Pipe, Cooler Refrigerant Discharge, A
88716 88726-3A430 Pipe, Cooler Refrigerant Liquid, A
88716 88726-3A790 Pipe, Cooler Refrigerant Liquid, A
88716 88726-3A100 Pipe, Cooler Refrigerant Liquid, B
88716 88726-3A110 Pipe, Cooler Refrigerant Liquid, C
88716 88726-3A250 Pipe, Cooler Refrigerant Liquid, C
88716 88726-3A050 Pipe, Cooler Refrigerant Liquid, E
88717 88727-3A430 Pipe, Cooler Refrigerant Suction, A
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88723 88723-28120 Label, Cooler Service Caution
88723 88723-50140 Label, Cooler Service Caution
91642 91642-H0645 New Genuine Part
91642 91641-H0645 New Genuine Part
91651 91651-G0635 New Genuine Part
885693 88569-3A070 Clamp (for Cooler Relay)
885693 88569-3A110 Clamp (for Cooler Relay)
886883 88688-3A100 Bracket Assy, Windshield Washer
886883 88688-3A120 Bracket, Cooler Diaphragm
886883 88688-3A140 Bracket, Cooler Diaphragm
887183 88718-3A100 Pipe, Cooler Refrigerant Suction, No.2
8846740030 88467-40030 Cushion, Cooler Condenser, No.1
8857830410 88578-30410 Packing, Cooler Pipe, No.1
8871830880 88718-30880 Pipe, Cooler Refrigerant Suction, No.2
8889230530 88892-30530 Bracket, Cooler Evaporator Mounting
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9011906336 90119-06336 SCREW
9011906437 90119-06437 New Genuine Part
9011906437 90119-06423 BOLT WWASHER
9011906458 90119-06458 New Genuine Part
9011906553 90119-06553 New Genuine Part
9011906553 91651-F0625 BOLT WWASHER
9011906635 90119-06635 New Genuine Part
9011906784 90119-06784 New Genuine Part
9011906792 90119-06792 New Genuine Part
9011906792 91631-B0645 New Genuine Part
9011906800 90119-06800 New Genuine Part
9011908572 90119-08572 New Genuine Part
9011908572 91651-G0845 New Genuine Part
9011908711 90119-08711 New Genuine Part
9011908711 91661-40825 New Genuine Part
9011908760 90119-08760 Bolt
9017908001 90179-08001 New Genuine Part
9017908001 90179-08233 NUT
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9163260645 91632-60645 New Genuine Part
9165160635 91651-60635 BOLT
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814 91651-B0814 Bolt with washer
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165260635 91652-60635 New Genuine Part
9165560816 91655-60816 New Genuine Part
9354055010 93540-55010 SCREW
