JZS143

Toyota CROWN-MAJESTA · 1991 · 6,447 parts · 224 categories
JZS143 ×

← Back to categories

6,447 items

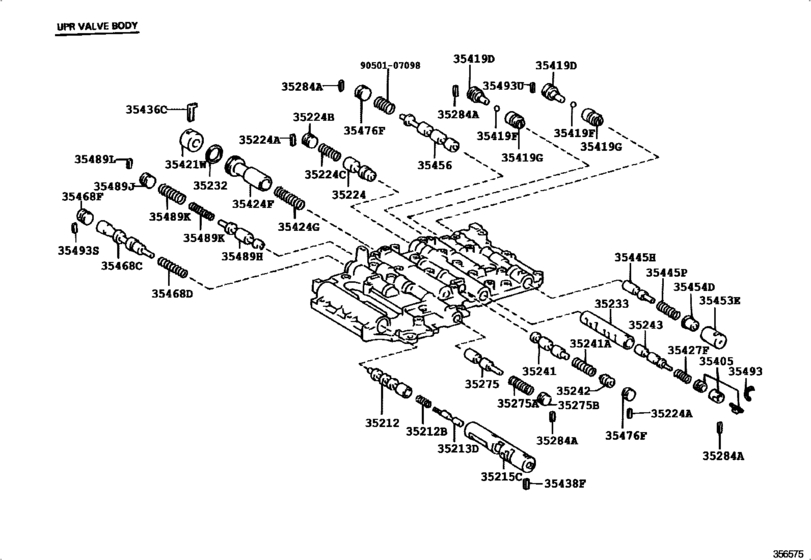

Valve Body & Oil Strainer (Atm) ([10.1991 - ] A350E (9110- )JZS143..ROYT) 143
#OEMPart name
35148 35148-16010 Gasket (For Automatic Transfer Case)
35207 35207-30030 Spring Sub-Assy, B-0 Accumulator
35207 90521-20004 Ring, Hole Snap (For B-0 Accumulator Spring)
35207 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35208 35208-30010 Spring Sub-Assy, B-2 Accumulator
35209 35209-50010 Spring Sub-Assy, C-2 Accumulator
35211 35211-50010 Sleeve, Lock Up Control Valve
35212 35212-30050 Valve, Lock Up Relay
35212 90501-06057 Spring, Compression (For Lock Up Relay Valve)
35213 35213-50010 Plunger, Lock Up Relay Valve
35214 35214-50010 Valve, Lock Up Control
35214 90501-07078 Spring, Compression (For Lock Up Control Valve)
35215 35215-50010 Sleeve, Lock Up Relay Valve
35219 35219-50010 Plunger, Lock Up Control Valve
35224 35224-50010 Valve, Reverse Control
35224 90282-03003 Key, Straight (For Lock Up Signal Valve)
35224 90339-05020 Plug (For Reverse Control Valve)
35224 90501-06056 Spring, Compression (For Reverse Control Valve)
35232 35232-30010 Ring, C-1 Accumulator Seal
35233 35233-30010 Sleeve, B-0 Control Valve
35241 35241-30010 Valve, B-0 Relay
35241 90501-06073 Spring, B-0 Relay Valve
35242 35242-30010 Plunger, B-0 Relay Valve
35243 35243-30010 Valve, B-0 Control
35251 35251-30020 Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body)
35270 35270-50010 Solenoid Assy, Shift Control
35275 35275-30010 Valve, Solenoid Modulator
35275 90501-12143 Spring, Compression(For Low-High Shift Valve)
35275 90339-04030 Plug (For Solenoid Modulator Valve)
35280 35280-30010 Solenoid Assy, Lock Up Control
35284 35493-30100 Key, Straight (For Solenoid Relay Valve)
35284 90282-03016 Key, Straight (For Lock Up Relay Valve Plug)
35284 35284-50010 Valve, Solenoid Relay
35284 90501-06055 Spring, Compression (For Solenoid Relay Valve)
35284 90339-04040 Plug (For Solenoid Relay Valve)
35290 35290-30010 Solenoid Assy, Line Pressure Control
35330 35330-30040 Strainer Assy, Valve Body Oil
35405 35405-30010 Plug Sub-Assy, Secondary Down Shift
35406 35406-30030 Plate Sub-Assy, Valve Body
35406 35406-30070 Plate Sub-Assy, Valve Body
35408 35408-30050 Plug Sub-Assy, Accumulator Control Valve
35409 35409-22020 Spring Sub-Assy, Manual Detent
35410 35410-30560 Body Assy, Transmission Valve
35410 35410-30640 Body Assy, Transmission Valve
35415 35415-30050 Valve, Primary Regulator
35415 90501-14117 Spring, Compression (For Primary Regulator Valve)
35415 90201-08067 Washer (For Primary Regulator Valve)
35416 35416-50010 Plunger, Primary Regulator Valve, No.1
35417 35417-50011 Sleeve, Primary Regulator Valve
35418 35418-30080 Valve, Manual
35419 35419-50020 Valve, Check, No.1
35419 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35419 90080-36191 Ball, Check Valve
35419 35419-50030 Valve, Check, No.2
35419 90501-09093 Spring, Compression (For Check Valve)
35419 35419-50010 Valve, Check, No.1
35420 35420-30270 Body Assy, Lower Valve
35420 90360-08003 Ball (For Lower Valve Body)
35421 35421-30030 Plug, C-1 Accumulator Valve
35422 35422-50011 Plunger, Primary Regulator Valve, No.2
35423 35423-30030 Piston, B-2 Accumulator
35423 90501-25026 Spring, Compression (For B-2 Accumulator Piston)
35423 90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)
35423 90301-31002 Ring, O (For Low Speed Brake Accumulator Cover)
35423 90301-31010 Ring, O (For B-2 Accumulator Piston)
35424 35424-30020 Valve, C-1 Accumulator
35424 90501-19020 Spring, Compression (For C-1 Accumulator Valve)
35425 35425-30020 Piston, C-2 Accumulator
35425 90501-23093 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-25027 Spring, Compression (For C-2 Accumulator Piston)
35425 90301-25003 Ring, O (For C-2 Accumulator Piston)
35425 90301-25010 Ring, O(For Oil Pump Suction Pipe)
35426 35426-50010 Piston, C-0 Accumulator
35426 90301-24001 Ring, O (For C-0 Accumulator Piston)
35426 90301-24010 Ring, O (For C-0 Accumulator Piston)
35426 90501-20112 Spring, Compression (For C-0 Accumulator Piston)
35426 90501-20113 Spring, Compression (For C-0 Accumulator Piston)
35427 90501-10184 Spring, Compression (For B-0 Accumulator Piston)
35427 90501-25041 Spring, Compression (For B-0 Accumulator Piston)
35427 35427-30050 Piston, B-0 Accumulator
35427 90903-01001 Ring, O (For C-2 Accumulator Piston)
35427 90903-01002 Ring, O (For B-0 Accumulator Piston)
35436 35436-30060 Retainer, C-1 Accumulator Valve
35438 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35438 35404-30010 Plate, Valve Body, No.2
35441 35441-50010 Strainer, Solenoid Oil
35441 35441-50030 Strainer, Solenoid Oil
35443 35443-50010 Sleeve, Low Coast Shift Control Valve
35445 35445-50010 Valve, Low Modulator
35445 90501-10165 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-10166 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-10167 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-07100 Spring, Compression (For Low Coast Modulator Valve)
35446 35446-50010 Plunger, Low Coast Modulator Valve
35447 35447-50010 Plunger, Accumulator Control Valve
35450 35450-30050 Body Assy, Upper Valve
35453 35453-50010 Sleeve, 2Nd Coast Modulator Valve
35454 35454-50021 Plunger, 2Nd Coast Modulator Valve
35456 35456-30070 Valve, 2-3 Shift
35456 90501-08135 Spring, Compression (For Shift Valve Plug Seat)
35456 35493-30110 Seat (For Transfer Solenoid Modulator Valve Plug)
35458 35458-50010 Valve, Cut Back
35464 35464-30040 Valve, 1-2 Shift
35468 35468-30020 Valve, Secondary Regulator
35468 90501-12150 Spring, Compression (For Secondary Regulator Valve)
35469 90361-02051 Seat, Shift Valve Plug
35472 35472-30020 Cover, Lower Valve Body
35476 90339-05019 Plug
35476 35476-50010 Valve, Cut Off
35476 90501-06062 Spring, Compression (For Cut Off Valve)
35486 35486-30020 Seat, Pressure Relief Valve Spring
35486 90501-12142 Spring (For Lower Valve Body)
35489 35489-30020 Valve, C-1 Orifice Control
35489 90339-05025 Plug (For C-1 Orifice Control Valve)
35489 90501-08121 Spring, Compression (For C-1 Orifice Control Valve)
35489 90501-08123 Spring, Compression (For C-1 Orifice Control Valve)
35491 35491-50010 Valve, Accumulator Control, No.1
35491 90501-11049 Spring, Compression (For Accumulator Control Valve No.1)
35492 35492-30040 Sleeve, Accumulator Control Valve
35493 35493-30120 Seat, Shift Valve Spring
35493 35493-30030 Seat(For Center Differential Clutch Control Valve Plug)
35493 35493-50010 Seat, Primary Regulator Valve Plug
35493 90282-03010 Key, Straight (For Lock Up Signal Valve)
35493 35493-30040 Seat(For Low-High Shift Timing Valve Plug)
35493 35436-50010 Retainer, C-1 Accumulator Valve
35493 35493-50030 Seat, Accumulator Control Valve Plug, No.1
35493 35493-50040 Seat, Valve Body
35497 35497-30050 Valve, 3-4 Shift
35497 90282-03002 Key, Straight (For Lock Up Signal Valve)
35599 35599-22020 Cover, Manual Detent Spring
3547450010 35474-50010 Pin, Straight (For B-2 Accumulator Piston)
3547450010 35474-30010 Cover, Accumulator
9010505002 90105-05002 New Genuine Part
9010505003 90105-05003 Bolt (For Pressure Regulator Valve No.2)
9010505003 90119-05035 Bolt (For Pressure Regulator Valve No.2)
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505008 90105-05008 New Genuine Part
9010505009 90105-05009 New Genuine Part
9010505014 90105-05014 Bolt (For Pressure Regulator Valve No.2)
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter)
9050107098 90501-07098 New Genuine Part
