Search › Model › JZS143

JZS143

Toyota CROWN-MAJESTA · 1991 · 6,447 parts · 224 categories

6,447 items

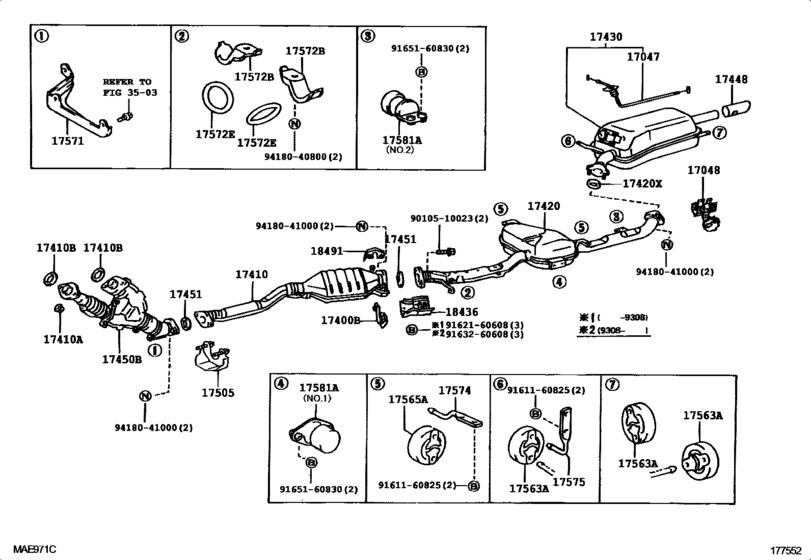

Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145) 43

#	OEM	Part name
17047	17047-50010	Cable Sub-Assy, Exhaust Pipe Gas Control
17048	17048-50010	Clamp Sub-Assy, Exhaust Pipe Gas Control Cable
17400	18495-46010	Retainer, Exhaust Pipe
17410	17410-46080	Pipe Assy, Exhaust, Front
17410	17410-46250	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06045	Gasket, Exhaust Pipe
17410	90080-43028	Gasket, Exhaust Pipe
17420	17420-46080	Pipe Assy, Exhaust, Center
17420	17420-46081	Pipe Assy, Exhaust, Center
17420	90917-06049	Gasket, Exhaust Pipe, Center
17420	90917-06073	Gasket, Exhaust Pipe, Center
17430	17430-46080	Pipe Assy, Exhaust, Tail
17430	17430-46081	Pipe Assy, Exhaust, Tail
17430	17575-42021	Bracket, Exhaust Pipe Support, No.5
17448	17448-46030	Baffle, Tail Pipe
17450	17450-46050	Pipe Assy, Exhaust, Front No.2
17451	90917-06054	Gasket, Exhaust Pipe
17451	90917-06070	Gasket, Exhaust Pipe
17505	17505-46010	Insulator Sub-Assy, Exhaust Pipe Heat No.1
17563	17565-63071	Bolt Or Ring, Exhaust Pipe Front (For Front)
17565	17565-63060	Bolt Or Ring, Exhaust Pipe Front (For Front)
17571	17506-46020	Bracket, Exhaust Pipe Support, No.1
17572	17572-54100	Bracket, Exhaust Pipe Front (For Center)
17572	90301-34207	Bolt Or Ring, Exhaust Pipe Front (For Center)
17574	17574-42020	Bracket, Exhaust Tail Pipe (For Rear)
17575	17575-42020	Bracket, Exhaust Tail Pipe (For Rear)
17581	17581-46030	Damper, Exhaust Pipe
17581	17581-46040	Damper, Exhaust Pipe
18436	18436-46040	Protector, Monolithic Converter, No.1
18491	18491-63010	Flange, Thermosenser Inlet
9010510023	90105-10023	Bolt
9010510023	91512-81035	BOLT
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9162160608	91621-60608	New Genuine Part
9162160608	91651-B0610	BOLTWWASHER
9163260608	91632-60608	New Genuine Part
9163260608	91631-60608	New Genuine Part
9165160830	91651-60830	Bolt (For Transfer Power Take-Off Cover)
9418040800	94180-40800	NUT
9418041000	94180-41000	Nut

OEM	Part name	Category
17047-50010	Cable Sub-Assy, Exhaust Pipe Gas Control	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17048-50010	Clamp Sub-Assy, Exhaust Pipe Gas Control Cable	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17410-46080	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17410-46250	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17420-46080	Pipe Assy, Exhaust, Center	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17420-46081	Pipe Assy, Exhaust, Center	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17430-46080	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17430-46081	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17448-46030	Baffle, Tail Pipe	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17450-46050	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17505-46010	Insulator Sub-Assy, Exhaust Pipe Heat No.1	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17506-46020	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17565-63060	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17565-63071	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17572-54100	Bracket, Exhaust Pipe Front (For Center)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17574-42020	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17575-42020	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17575-42021	Bracket, Exhaust Pipe Support, No.5	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17581-46030	Damper, Exhaust Pipe	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
17581-46040	Damper, Exhaust Pipe	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
18436-46040	Protector, Monolithic Converter, No.1	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
18491-63010	Flange, Thermosenser Inlet	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
18495-46010	Retainer, Exhaust Pipe	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90080-43028	Gasket, Exhaust Pipe	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90105-10023	Bolt	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90301-34207	Bolt Or Ring, Exhaust Pipe Front (For Center)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90917-06045	Gasket, Exhaust Pipe	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90917-06049	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90917-06054	Gasket, Exhaust Pipe	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90917-06070	Gasket, Exhaust Pipe	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
90917-06073	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
91512-81035	BOLT	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
91621-60608	New Genuine Part	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
91631-60608	New Genuine Part	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
91632-60608	New Genuine Part	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
91651-60830	Bolt (For Transfer Power Take-Off Cover)	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
91651-B0610	BOLTWWASHER	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
94180-40800	NUT	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)
94180-41000	Nut	Exhaust Pipe ([10.1991 - ] (9110- )2JZGE..JZS143,145)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 224
Collected: 2026-08-03
