Search › Model › JZS141

JZS141

Toyota CROWN-MAJESTA · 1991 · 6,101 parts · 213 categories

6,101 items

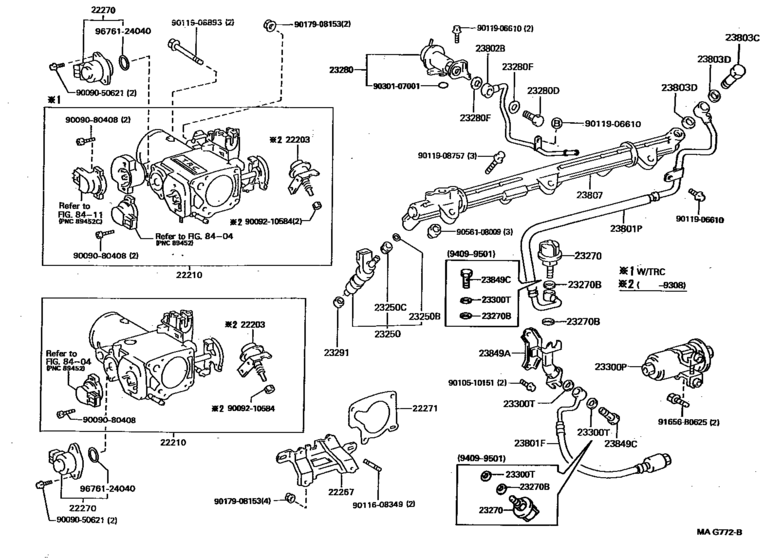

Fuel Injection System ([10.1991 - ] (9110- )1JZGE) 68

#	OEM	Part name
22203	22203-46020	Dash Pot Sub-Assy(For Throttle Body)
22210	22210-46050	Body Assy, Throttle
22210	22210-46072	Body Assy, Throttle
22210	22210-46191	Body Assy, Throttle
22210	22210-46200	Body Assy, Throttle
22210	22210-46070	Body Assy, Throttle
22210	22210-46071	Body Assy, Throttle
22267	22267-46010	Bracket, Throttle Body
22270	22270-46020	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	22270-46010	Valve Assy, Idle Speed Control(For Thlottle Body)
22271	22271-46010	Gasket, Throttle Body
23206	23206-46081	Bracket, Fuel Pump
23206	77169-14010	Gasket, Fuel Pump Bracket
23217	23217-50020	Filter, Fuel Pump
23220	23220-43070	Pump Assy, Fuel
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23233	23239-16010	Hose, Fuel Pump
23233	90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)
23233	96135-51300	Clamp, Hose
23249	23249-74150	Rubber, Cushion(For Fuel Pump)
23250	23209-46010	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23270	23207-46021	Damper Assy, Fuel Pressure Pulsation
23270	90430-12026	Gasket
23270	90430-14008	Gasket(For Water Hole)
23280	23280-46010	Regulator Assy, Fuel Pressure
23280	90401-10038	Bolt, Union(For Fuel Pipe Or Hose Set)
23280	90430-10012	Gasket(For Turbo Oil Inlet Pipe)
23291	23291-41010	Insulator, Injector Vibration
23291	23291-46010	Insulator, Injector Vibration
23300	23300-50030	Filter, Fuel(For Efi)
23801	90923-01389	Hose, Fuel, No.1
23801	90923-01413	Hose, Fuel, No.1
23801	90923-01408	Hose, Fuel, No.1
23801	23801-46060	Pipe Sub-Assy, Fuel, No.1
23801	23801-46050	Pipe Sub-Assy, Fuel, No.1
23802	23802-46020	Pipe Sub-Assy, Fuel, No.2
23803	90401-12023	Bolt, Union(For Fuel Pipe)
23807	23807-46011	Pipe Sub-Assy, Fuel Delivery
23807	23807-46021	Pipe Sub-Assy, Fuel Delivery
23807	23807-46010	Pipe Sub-Assy, Fuel Delivery
23849	23849-46010	Support, Fuel Pipe
23849	90401-12029	Bolt, Union(For Fuel Pipe Or Hose Set)
23849	90401-12035	Bolt, Union(For Fuel Pipe Support)
91656	91656-B0625	New Genuine Part
91656	91651-B0622	New Genuine Part
9009050621	90090-50621	New Genuine Part
9009080408	90090-80408	New Genuine Part
9009210584	90092-10584	New Genuine Part
9010510151	90105-10151	New Genuine Part
9010510151	91512-81016	New Genuine Part
9011306610	90113-06610	New Genuine Part
9011608349	90116-08349	New Genuine Part
9011906610	90119-06610	New Genuine Part
9011906610	90119-06493	BOLT WITH WASHER
9011908757	90119-08757	New Genuine Part
9011908893	90119-08893	New Genuine Part
9017908153	90179-08153	NUT
9056108009	90561-08009	Spacer, No.1(For Delivery Pipe)
9338115010	93381-15010	SCREW
9411540400	94115-40400	NUT
9411540400	90076-01001	NUT
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)
9451100400	94511-00400	WASHERSPRING
9451100500	94511-00500	Washer, Cover Set, No.2
9676124040	96761-24040	Ring, O(For Water Pump)

OEM	Part name	Category
22203-46020	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22210-46050	Body Assy, Throttle	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22210-46070	Body Assy, Throttle	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22210-46071	Body Assy, Throttle	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22210-46072	Body Assy, Throttle	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22210-46191	Body Assy, Throttle	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22210-46200	Body Assy, Throttle	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22267-46010	Bracket, Throttle Body	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22270-46010	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22270-46020	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
22271-46010	Gasket, Throttle Body	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23206-46081	Bracket, Fuel Pump	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23207-46021	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23209-46010	Injector Assy, Fuel	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23217-50020	Filter, Fuel Pump	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23220-43070	Pump Assy, Fuel	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23239-16010	Hose, Fuel Pump	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23249-74150	Rubber, Cushion(For Fuel Pump)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23280-46010	Regulator Assy, Fuel Pressure	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23291-46010	Insulator, Injector Vibration	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23300-50030	Filter, Fuel(For Efi)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23801-46050	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23801-46060	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23802-46020	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23807-46010	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23807-46011	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23807-46021	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
23849-46010	Support, Fuel Pipe	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
77169-14010	Gasket, Fuel Pump Bracket	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90076-01001	NUT	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90090-50621	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90090-80408	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90092-10584	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90105-10151	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90113-06610	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90116-08349	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90119-06493	BOLT WITH WASHER	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90119-06610	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90119-08757	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90119-08893	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90179-08153	NUT	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90401-10038	Bolt, Union(For Fuel Pipe Or Hose Set)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90401-12023	Bolt, Union(For Fuel Pipe)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90401-12029	Bolt, Union(For Fuel Pipe Or Hose Set)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90401-12035	Bolt, Union(For Fuel Pipe Support)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90430-10012	Gasket(For Turbo Oil Inlet Pipe)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90430-12026	Gasket	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90430-14008	Gasket(For Water Hole)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90561-08009	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90923-01389	Hose, Fuel, No.1	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90923-01408	Hose, Fuel, No.1	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
90923-01413	Hose, Fuel, No.1	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
91512-81016	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
91651-B0622	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
91656-B0625	New Genuine Part	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
93381-15010	SCREW	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
94115-40400	NUT	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
94511-00400	WASHERSPRING	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
94511-00500	Washer, Cover Set, No.2	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
96135-51300	Clamp, Hose	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)
96761-24040	Ring, O(For Water Pump)	Fuel Injection System ([10.1991 - ] (9110- )1JZGE)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 213
Collected: 2026-08-03
