Search › Model › JZS141

JZS141

Toyota CROWN-MAJESTA · 1991 · 6,101 parts · 213 categories

6,101 items

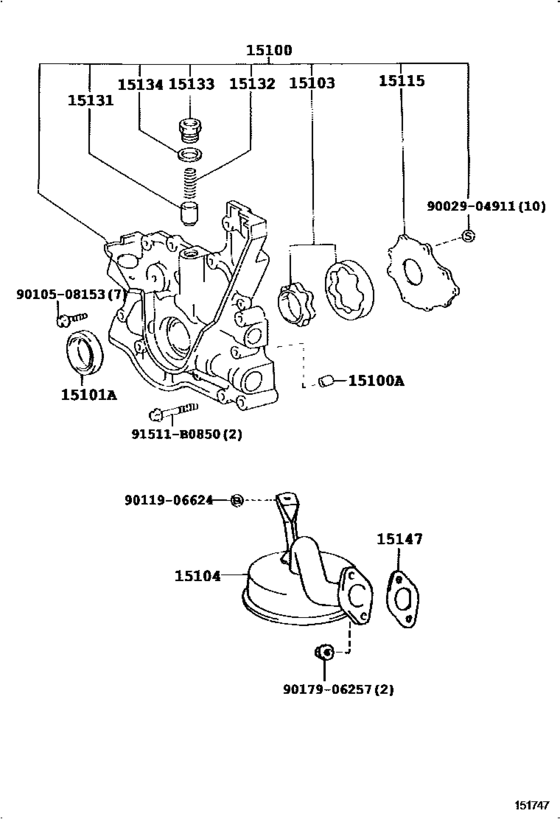

Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145) 21

#	OEM	Part name
15100	15100-46040	Pump Assy, Oil
15100	15100-46042	Pump Assy, Oil
15100	15100-46041	Pump Assy, Oil
15100	90253-11021	Pin, Ring
15101	90311-46001	Seal(For Crankshaft)
15103	15103-46040	Gear Set, Oil Pump
15103	15103-46070	Gear Set, Oil Pump
15104	15104-46020	Strainer Sub-Assy, Oil
15115	15115-46040	Cover, Oil Pump
15131	15131-17010	Valve, Oil Pump Relief
15131	15131-46040	Valve, Oil Pump Relief
15132	15132-46020	Spring, Oil Pump Relief Valve
15133	15133-17010	Plug, Oil Pump Relief Valve
15134	15134-17010	Gasket, Oil Pump Relief Valve
15147	15147-46010	Gasket, Oil Strainer
91511	91511-B0850	Bolt
9002904911	90029-04911	New Genuine Part
9010508153	90105-08153	New Genuine Part
9011906624	90119-06624	New Genuine Part
9011906624	90119-06512	BOLT WWASHER
9017906257	90179-06257	NUT

OEM	Part name	Category
15100-46040	Pump Assy, Oil	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15100-46041	Pump Assy, Oil	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15100-46042	Pump Assy, Oil	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15103-46040	Gear Set, Oil Pump	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15103-46070	Gear Set, Oil Pump	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15104-46020	Strainer Sub-Assy, Oil	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15115-46040	Cover, Oil Pump	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15131-17010	Valve, Oil Pump Relief	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15131-46040	Valve, Oil Pump Relief	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15132-46020	Spring, Oil Pump Relief Valve	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15133-17010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15134-17010	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
15147-46010	Gasket, Oil Strainer	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
90029-04911	New Genuine Part	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
90105-08153	New Genuine Part	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
90119-06512	BOLT WWASHER	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
90119-06624	New Genuine Part	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
90179-06257	NUT	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
90253-11021	Pin, Ring	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
90311-46001	Seal(For Crankshaft)	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)
91511-B0850	Bolt	Engine Oil Pump ([10.1991 - ] (9110- )1JZGE,2JZGE..JZS141,143,145)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 213
Collected: 2026-08-03
