Search › Model › JZS133

JZS133

Toyota CROWN-MAJESTA · 1991 · 5,125 parts · 218 categories

5,125 items

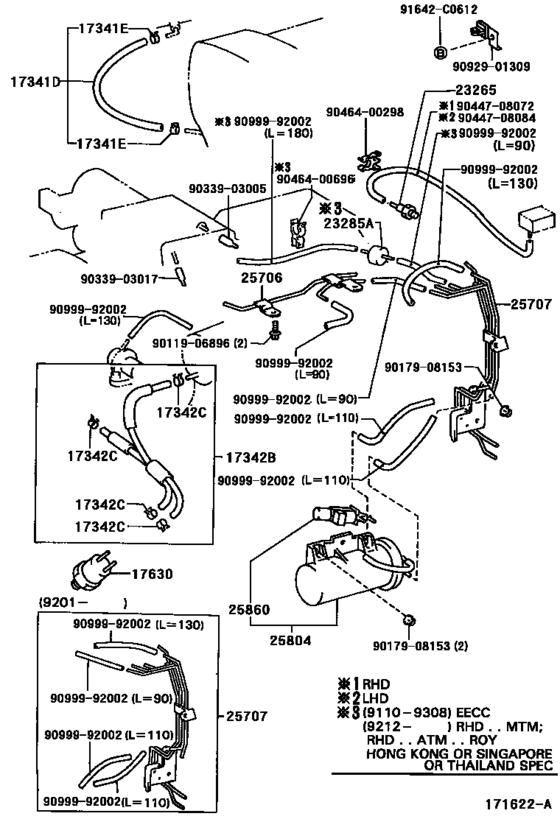

Vacuum Piping ([10.1991 - ] (9110- )2JZGE) 30

#	OEM	Part name
17341	17341-46040	Hose, No.1(For Idle-Up)
17341	90467-10106	Clip, No.1(For Idle-Up Hose)
17341	96132-51000	Clip Or Clamp(For Ventilation Hose)
17342	17342-46040	Hose, No.2(For Idle-Up)
17630	17630-70020	Valve Assy, Air Control
17630	17630-16040	Valve Assy, Air Control
23265	90917-11031	Filter, Gas, No.1
25706	25706-46060	Pipe Sub-Assy, Vacuum Transmitting, No.1
25706	25706-46030	Pipe Sub-Assy, Vacuum Transmitting, No.1
25707	25707-46020	Pipe Sub-Assy, Vacuum Transmitting, No.2
25707	25707-46090	Pipe Sub-Assy, Vacuum Transmitting, No.2
25707	25707-46021	Pipe Sub-Assy, Vacuum Transmitting, No.2
25707	25707-46060	Pipe Sub-Assy, Vacuum Transmitting, No.2
25804	25804-46020	Valve Set, Vacuum Control
25804	25804-46060	Valve Set, Vacuum Control
25860	25860-46010	Valve Assy, Vacuum Switching, No.1
25860	90910-12124	Valve Assy, Vacuum Switching, No.1
91642	91642-C0612	New Genuine Part
91642	91641-C0612	New Genuine Part
9011906896	90119-06896	New Genuine Part
9011906896	90119-06493	BOLT WITH WASHER
9017908153	90179-08153	NUT
9033903005	90339-03005	Plug, No.1
9033903017	90339-03017	Plug
9044708072	90447-08072	New Genuine Part
9044708084	90447-08084	New Genuine Part
9046400298	90464-00298	Clamp, No.2 (For Transfer Vacuum)
9046400696	90464-00696	Clamp, No.2(For Vacuum Hose)
9092901309	90929-01309	New Genuine Part
9099992002	90999-92002	Air Hose (300 mm)

OEM	Part name	Category
17341-46040	Hose, No.1(For Idle-Up)	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
17342-46040	Hose, No.2(For Idle-Up)	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
17630-16040	Valve Assy, Air Control	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
17630-70020	Valve Assy, Air Control	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25706-46030	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25706-46060	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25707-46020	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25707-46021	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25707-46060	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25707-46090	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25804-46020	Valve Set, Vacuum Control	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25804-46060	Valve Set, Vacuum Control	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
25860-46010	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90119-06493	BOLT WITH WASHER	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90119-06896	New Genuine Part	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90179-08153	NUT	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90339-03005	Plug, No.1	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90339-03017	Plug	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90447-08072	New Genuine Part	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90447-08084	New Genuine Part	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90464-00298	Clamp, No.2 (For Transfer Vacuum)	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90464-00696	Clamp, No.2(For Vacuum Hose)	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90467-10106	Clip, No.1(For Idle-Up Hose)	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90910-12124	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90917-11031	Filter, Gas, No.1	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90929-01309	New Genuine Part	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
91641-C0612	New Genuine Part	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
91642-C0612	New Genuine Part	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Vacuum Piping ([10.1991 - ] (9110- )2JZGE)

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 218
Collected: 2026-08-03
