Search › Model › JZS133

JZS133

Toyota CROWN-MAJESTA · 1991 · 5,125 parts · 218 categories

5,125 items

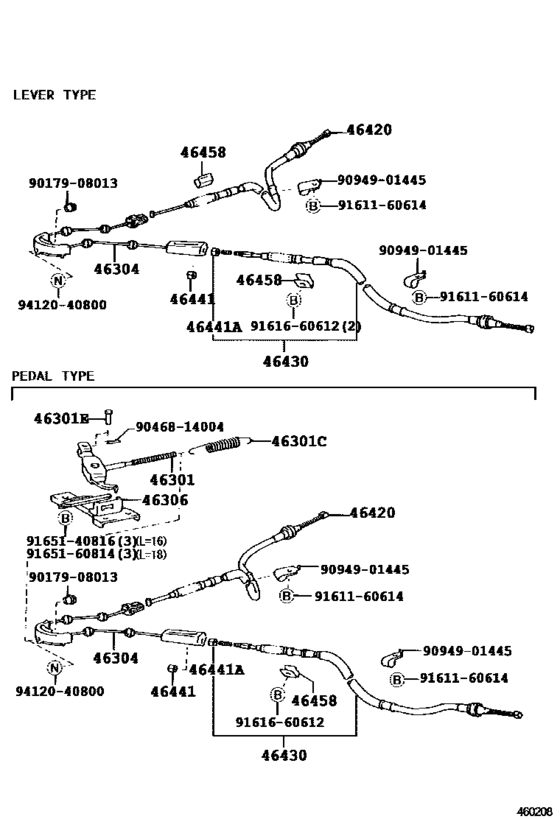

Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133) 51

#	OEM	Part name
46304	46304-30080	Equalizer Sub-Assy, Parking Brake
46420	46420-30430	Cable Assy, Parking Brake, No.2
46430	46430-30070	Cable Assy, Parking Brake, No.3
46441	46441-30030	Nut, Wire Adjusting, No.1
46441	46441-30050	Nut, Wire Adjusting, No.1
46458	46458-30060	Retainer, Cable
46503	46503-30070	Plate Sub-Assy, Parking Brake, Rh
46504	46504-30070	Plate Sub-Assy, Parking Brake, Lh
46540	46540-30030	Shoe Assy, Parking Brake, Rh Or Center No.1
46540	46540-24011	Shoe Assy, Parking Brake, Rh Or Center No.1
46550	46550-30030	Shoe Assy, Parking Brake, Rh Or Center No.2
46550	46550-24011	Shoe Assy, Parking Brake, Rh Or Center No.2
46550	90506-16005	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90506-16007	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90506-12010	Spring, Tension, No.2(For Parking Brake Shoe Return)
46590	46590-30020	Shoe Assy, Parking Brake, Lh No.2
46590	46590-24011	Shoe Assy, Parking Brake, Lh No.2
47405	47405-30040	Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center
47406	47406-30040	Adjuster Sub-Assy, Parking Brake Shoe, Lh
47447	47447-20030	Pin, Shoe Hold Down Spring
47447	47447-22020	Pin, Shoe Hold Down Spring
47447	90501-14049	Spring, Brake Shoe Hold Down
47447	90501-16053	Spring, Brake Shoe Hold Down
47449	47449-30030	Cup, Brake Shoe Hold Down
47449	47449-40010	Cup, Brake Shoe Hold Down
47456	47456-33010	Plate, Shoe Guide(For Parking Brake)
47456	47456-20030	Plate, Shoe Guide(For Parking Brake)
47459	47459-30010	Bolt, Parking Brake Shoe Guide Plate Set
47611	47611-22030	Lever, Parking Brake Shoe, Rh Or Center
47611	90213-07018	Washer, Type C(For Parking Brake Shoe)
47611	90564-09184	Shim(For Parking Brake Shoe)
47611	90564-09185	Shim(For Parking Brake Shoe)
47611	90564-09186	Shim(For Parking Brake Shoe)
47612	47612-22030	Lever, Parking Brake Shoe, Lh
47613	47613-22020	Strut, Parking Brake Shoe Lever
47613	90504-14002	Spring, Compression(For Parking Brake Shoe Strut)
9017908013	90179-08013	Nut, Wire Adjusting, No.1
9046814004	90468-14004	Union, Auxiliary Fuel Band
9094901445	90949-01445	New Genuine Part
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161660612	91616-60612	Bolt (For Transfer Oil Receiver No.1)
9161660612	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9165140816	91651-40816	BOLT
9165160814	91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814	91651-B0814	Bolt with washer
9411551600	94115-51600	Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451101600	94511-01600	New Genuine Part

OEM	Part name	Category
46304-30080	Equalizer Sub-Assy, Parking Brake	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46420-30430	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46430-30070	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46441-30030	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46441-30050	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46458-30060	Retainer, Cable	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46503-30070	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46504-30070	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46540-24011	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46540-30030	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46550-24011	Shoe Assy, Parking Brake, Rh Or Center No.2	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46550-30030	Shoe Assy, Parking Brake, Rh Or Center No.2	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46590-24011	Shoe Assy, Parking Brake, Lh No.2	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
46590-30020	Shoe Assy, Parking Brake, Lh No.2	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47405-30040	Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47406-30040	Adjuster Sub-Assy, Parking Brake Shoe, Lh	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47447-20030	Pin, Shoe Hold Down Spring	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47447-22020	Pin, Shoe Hold Down Spring	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47449-30030	Cup, Brake Shoe Hold Down	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47449-40010	Cup, Brake Shoe Hold Down	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47456-20030	Plate, Shoe Guide(For Parking Brake)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47456-33010	Plate, Shoe Guide(For Parking Brake)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47459-30010	Bolt, Parking Brake Shoe Guide Plate Set	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47611-22030	Lever, Parking Brake Shoe, Rh Or Center	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47612-22030	Lever, Parking Brake Shoe, Lh	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
47613-22020	Strut, Parking Brake Shoe Lever	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90179-08013	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90213-07018	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90468-14004	Union, Auxiliary Fuel Band	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90501-14049	Spring, Brake Shoe Hold Down	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90501-16053	Spring, Brake Shoe Hold Down	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90504-14002	Spring, Compression(For Parking Brake Shoe Strut)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90506-12010	Spring, Tension, No.2(For Parking Brake Shoe Return)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90506-16005	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90506-16007	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90564-09184	Shim(For Parking Brake Shoe)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90564-09185	Shim(For Parking Brake Shoe)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90564-09186	Shim(For Parking Brake Shoe)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
90949-01445	New Genuine Part	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91611-G0612	Bolt	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91616-60612	Bolt (For Transfer Oil Receiver No.1)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91651-40816	BOLT	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
91651-B0814	Bolt with washer	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
94115-51600	Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
94120-40800	Nut(For Clutch Pedal Stopper)	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)
94511-01600	New Genuine Part	Parking Brake & Cable ([10.1991 - ] (9110- )GS131,JZS133)

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 218
Collected: 2026-08-03
