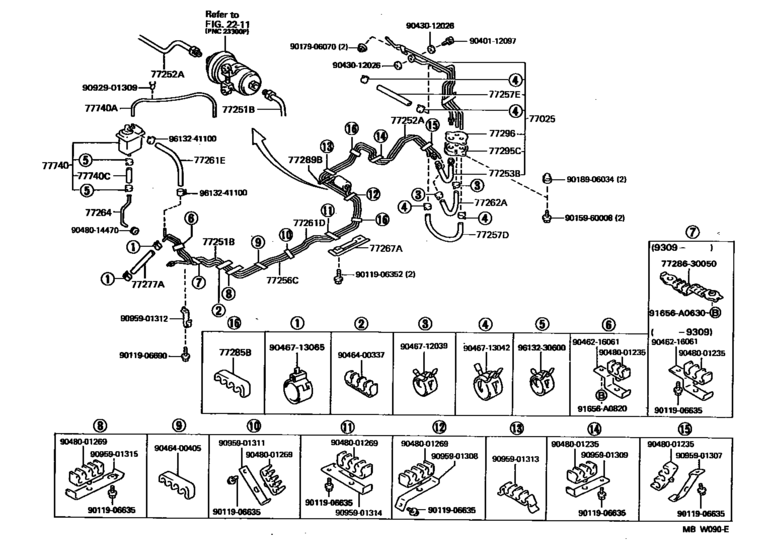

Fuel Tank & Tube ([10.1991 - ] (9110- )JZS131,133,135) 61
#OEMPart name
77025 77025-30160 Tube Sub-Assy, Fuel Main & Return, Rear
77251 77251-30230 Tube, Fuel Main
77252 77252-30290 Tube, Fuel Main, No.2
77253 77259-30100 Hose, Fuel, No.1(For Fuel Main No.3 Tube)
77256 77256-30210 Tube, Fuel Return, No.2
77257 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77257 95333-08020 Hose, Lpg Injector
77257 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77261 77261-30080 Tube, Fuel Tank To Canister
77261 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77261 95337-06020 Hose, Differential Pressure Control
77262 95333-06030 Hose, Fuel
77262 95338-06030 HOSE, FUEL
77264 77264-30020 Tube, Canister To Front Side Member
77267 77267-30050 Protector, Fuel Tube, No.2
77277 23271-46060 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23271-46140 Hose, Fuel, No.1(For Return Tube, No.1)
77285 77285-30160 Clamp, Fuel Tube W/grommet, No.1
77289 77289-30030 Clamp, Fuel Tube, No.3
77295 77295-30020 Grommet, Fuel Tube
77296 77296-30020 Plate, Fuel Tube Grommet Support
77740 77740-30170 Canister Assy, Charcoal
77740 90447-04119 Hose, Fuel, No.1(For Charcoal Canister)
77740 90445-12119 Hose, Fuel, No.1(For Charcoal Canister)
91656 91656-A0630 New Genuine Part
91656 91656-A0820 Bolt, Radiator Side Support Plate
91656 91651-B0820 Bolt, Radiator Side Support Plate
7728630050 77286-30050 Protector, Fuel Tank Inlet Pipe
9011906352 90119-06352 New Genuine Part
9011906352 90119-06430 BOLT WWASHER
9011906635 90119-06635 New Genuine Part
9011906690 90119-06690 BOLT, W/WASHER
9011906690 90119-06375 Bolt (For Transmission Housing & Case Setting)
9015960008 90159-60008 SCREW
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9018906034 90189-06034 GROMMET
9040112097 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
9043012026 90430-12026 Gasket
9046216061 90462-16061 New Genuine Part
9046400337 90464-00337 New Genuine Part
9046400405 90464-00405 New Genuine Part
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9046713065 90467-13065 Clip(For Fuel Pipe Support)
9046713065 96135-51300 Clamp, Hose
9048001235 90480-01235 New Genuine Part
9048001269 90480-01269 New Genuine Part
9048014470 90480-14470 Grommet
9092901309 90929-01309 New Genuine Part
9095901307 90959-01307 New Genuine Part
9095901308 90959-01308 New Genuine Part
9095901309 90959-01309 New Genuine Part
9095901311 90959-01311 New Genuine Part
9095901312 90959-01312 New Genuine Part
9095901313 90959-01313 New Genuine Part
9095901314 90959-01314 New Genuine Part
9095901315 90959-01315 New Genuine Part
9613230600 96132-30600 Clip(For Actuator Hose)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
