Search › Model › JZA80
JZA80

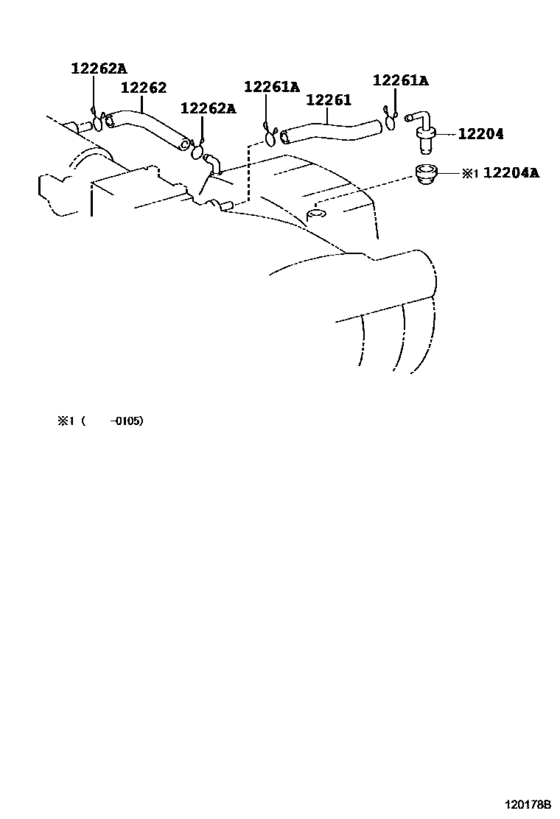

Ventilation Hose ([05.1993 - ] (9305- )2JZGE) 10
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-46030 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-46031 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12261 | 12261-46021 | Hose, Ventilation |
| 12261 | 12261-46022 | Hose, Ventilation |
| 12261 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-46010 | Hose, Ventilation, No.2 |
| 12262 | 12262-46060 | Hose, Ventilation, No.2 |
| 12262 | 90467-18003 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-46030 | Valve Sub-Assy, Ventilation | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 12204-46031 | Valve Sub-Assy, Ventilation | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 12261-46021 | Hose, Ventilation | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 12261-46022 | Hose, Ventilation | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 12262-46010 | Hose, Ventilation, No.2 | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 12262-46060 | Hose, Ventilation, No.2 | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 90467-18003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([05.1993 - ] (9305- )2JZGE) |
