Search › Model › JZA80

JZA80

Toyota SUPRA · 1993 · 5,236 parts · 223 categories

5,236 items

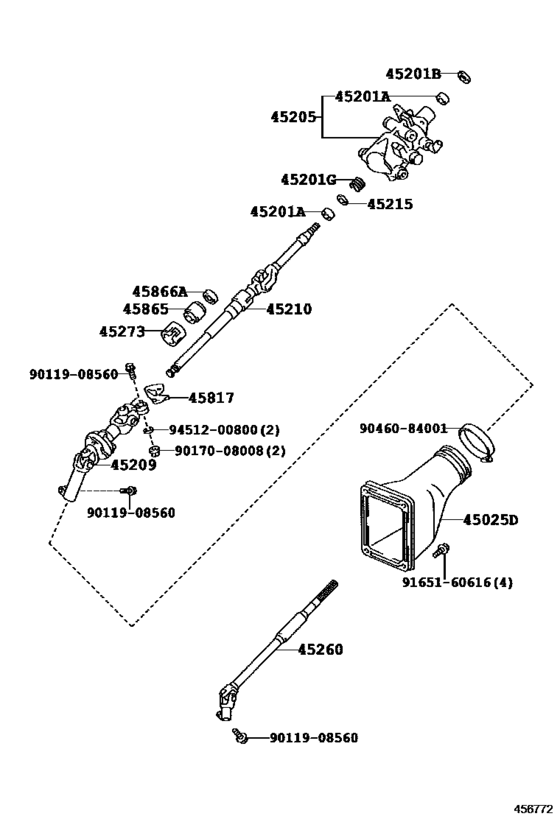

Steering Column & Shaft ([05.1993 - ] (9305- )) 81

#	OEM	Part name
45024	45024-14060	Cover Sub-Assy, Steering Column, Lower
45025	45025-24020	Cover Sub-Assy, Steering Column Hole, No.1
45201	90363-18005	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90501-40017	Spring, Compression(For Steering Main Shaft)
45205	45205-14201	Tube Sub-Assy, Steering Column
45205	45205-14210	Tube Sub-Assy, Steering Column
45209	45209-14040	Yoke Sub-Assy, Steering Sliding
45210	45210-14190	Shaft Assy, Steering Main
45215	45215-12010	Collar, Main Shaft Bearing Thrust
45260	45260-24070	Shaft Assy, Steering Intermediate, No.2
45271	45271-12060	Clamp, Steering Column, Upper
45273	45273-22020	Bush, Steering Main Shaft
45280	45280-14120	Bracket Assy, Steering Column, Upper
45283	45283-22010	Plate, Safety Caution
45286	45286-14938-C0	Cover, Steering Column
45286	45286-14330-C0	Cover, Steering Column, Upr
45287	45287-14300-C0	Cover, Steering Column, Lwr
45292	45292-22100	Seal, Main Shaft Lower Dust
45813	45813-20140	Collar, Tilt Steering Support, No.1
45813	45813-20150	Collar, Tilt Steering Support, No.1
45817	45817-22030	Stopper, Steering Shaft Thrust
45819	45819-14040	Retainer, Tilt Lever
45819	45819-22060	Retainer, Tilt Lever
45820	45820-32020	Spring Assy, Tilt Steering Support
45820	45820-32030	Spring Assy, Tilt Steering Support
45826	45826-22050	Lever, Steering Tilt
45827	45827-22030	Lever, Steering Tilt Sub
45831	90560-10062	Spacer(For Tilt Lever Lock Shaft)
45831	45831-20030	Shaft, Tilt Lever Lock
45831	45831-22020	Bolt, Tilt Lever Lock, No.1
45846	45846-20030	Bolt, Tilt Memory
45856	45856-22010	Bolt, Tilt Steering, No.1
45865	45865-12060	Collar, Steering Main Shaft
45870	45870-14200	Tube Assy, Steering Column
45880	45880-14010	Lever Assy, Steering Tilt
45880	90109-06168	Bolt(For Steering Tilt Lever)
45880	90163-50001	Screw(For Steering Tilt Lever)
45890	45890-20110	Pawl Assy, Tilt Steering
45890	45890-22090	Pawl Assy, Tilt Steering
45890	90507-07003	Spring, Tension W/damper(For Adjuster Memory Cover)
45890	90507-08012	Spring, Tension(For Steering Tilt Lever)
45893	90507-08010	Spring, Tension(For Steering Tilt Lever)
45893	90507-10019	Spring, Tension(For Tilt Steering Pawl Stopper)
45893	90507-12035	Spring, Tension(For Steering Tilt Lever)
45893	45893-24010	Stopper, Tilt Steering Pawl
45893	45893-24020	Stopper, Tilt Steering Pawl
45893	45893-24030	Stopper, Tilt Steering Pawl
45893	45893-24040	Stopper, Tilt Steering Pawl
45893	45893-24050	Stopper, Tilt Steering Pawl
45893	45893-24060	Stopper, Tilt Steering Pawl
45893	45893-24070	Stopper, Tilt Steering Pawl
45893	45893-20260	Stopper, Tilt Steering Pawl
45893	45893-20270	Stopper, Tilt Steering Pawl
45893	45893-20280	Stopper, Tilt Steering Pawl
45893	45893-20290	Stopper, Tilt Steering Pawl
45893	45893-20300	Stopper, Tilt Steering Pawl
45893	45893-20310	Stopper, Tilt Steering Pawl
45893	45893-20320	Stopper, Tilt Steering Pawl
45897	45897-12020	Bolt, Steering Lock Set
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9016450034	90164-50034	Direct
9016450034	93568-55014	Screw
9016855002	90168-55002	Screw(For Steering Column Tube)
9017008008	90170-08008	New Genuine Part
9017308008	90173-08008	New Genuine Part
9017906009	90179-06009	Nut (For Transmission Control Cable)
9017906009	90179-06156	Nut (For Transmission Control Cable)
9017910055	90179-10055	NUT
9017910065	90179-10065	Nut, Master Cylinder Push Rod Clevis Lock
9046084001	90460-84001	New Genuine Part
9165160616	91651-60616	BOLT
9331514010	93315-14010	SCREW
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461410600	94614-10600	Washer (For Primary Regulator Valve)
9461410600	94613-10601	Washer (For Primary Regulator Valve)
9611210360	96112-10360	Clamp, Sub Radiator Inlet Hose
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
45024-14060	Cover Sub-Assy, Steering Column, Lower	Steering Column & Shaft ([05.1993 - ] (9305- ))
45025-24020	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([05.1993 - ] (9305- ))
45205-14201	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1993 - ] (9305- ))
45205-14210	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1993 - ] (9305- ))
45209-14040	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1993 - ] (9305- ))
45210-14190	Shaft Assy, Steering Main	Steering Column & Shaft ([05.1993 - ] (9305- ))
45215-12010	Collar, Main Shaft Bearing Thrust	Steering Column & Shaft ([05.1993 - ] (9305- ))
45260-24070	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([05.1993 - ] (9305- ))
45271-12060	Clamp, Steering Column, Upper	Steering Column & Shaft ([05.1993 - ] (9305- ))
45273-22020	Bush, Steering Main Shaft	Steering Column & Shaft ([05.1993 - ] (9305- ))
45280-14120	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.1993 - ] (9305- ))
45283-22010	Plate, Safety Caution	Steering Column & Shaft ([05.1993 - ] (9305- ))
45286-14330-C0	Cover, Steering Column, Upr	Steering Column & Shaft ([05.1993 - ] (9305- ))
45286-14938-C0	Cover, Steering Column	Steering Column & Shaft ([05.1993 - ] (9305- ))
45287-14300-C0	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.1993 - ] (9305- ))
45292-22100	Seal, Main Shaft Lower Dust	Steering Column & Shaft ([05.1993 - ] (9305- ))
45813-20140	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([05.1993 - ] (9305- ))
45813-20150	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([05.1993 - ] (9305- ))
45817-22030	Stopper, Steering Shaft Thrust	Steering Column & Shaft ([05.1993 - ] (9305- ))
45819-14040	Retainer, Tilt Lever	Steering Column & Shaft ([05.1993 - ] (9305- ))
45819-22060	Retainer, Tilt Lever	Steering Column & Shaft ([05.1993 - ] (9305- ))
45820-32020	Spring Assy, Tilt Steering Support	Steering Column & Shaft ([05.1993 - ] (9305- ))
45820-32030	Spring Assy, Tilt Steering Support	Steering Column & Shaft ([05.1993 - ] (9305- ))
45826-22050	Lever, Steering Tilt	Steering Column & Shaft ([05.1993 - ] (9305- ))
45827-22030	Lever, Steering Tilt Sub	Steering Column & Shaft ([05.1993 - ] (9305- ))
45831-20030	Shaft, Tilt Lever Lock	Steering Column & Shaft ([05.1993 - ] (9305- ))
45831-22020	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([05.1993 - ] (9305- ))
45846-20030	Bolt, Tilt Memory	Steering Column & Shaft ([05.1993 - ] (9305- ))
45856-22010	Bolt, Tilt Steering, No.1	Steering Column & Shaft ([05.1993 - ] (9305- ))
45865-12060	Collar, Steering Main Shaft	Steering Column & Shaft ([05.1993 - ] (9305- ))
45870-14200	Tube Assy, Steering Column	Steering Column & Shaft ([05.1993 - ] (9305- ))
45880-14010	Lever Assy, Steering Tilt	Steering Column & Shaft ([05.1993 - ] (9305- ))
45890-20110	Pawl Assy, Tilt Steering	Steering Column & Shaft ([05.1993 - ] (9305- ))
45890-22090	Pawl Assy, Tilt Steering	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-20260	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-20270	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-20280	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-20290	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-20300	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-20310	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-20320	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-24010	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-24020	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-24030	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-24040	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-24050	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-24060	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45893-24070	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([05.1993 - ] (9305- ))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([05.1993 - ] (9305- ))
90080-11555	Bolt w-washer	Steering Column & Shaft ([05.1993 - ] (9305- ))
90109-06168	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([05.1993 - ] (9305- ))
90163-50001	Screw(For Steering Tilt Lever)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90164-50034	Direct	Steering Column & Shaft ([05.1993 - ] (9305- ))
90168-55002	Screw(For Steering Column Tube)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90170-08008	New Genuine Part	Steering Column & Shaft ([05.1993 - ] (9305- ))
90173-08008	New Genuine Part	Steering Column & Shaft ([05.1993 - ] (9305- ))
90179-06009	Nut (For Transmission Control Cable)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90179-06156	Nut (For Transmission Control Cable)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90179-10055	NUT	Steering Column & Shaft ([05.1993 - ] (9305- ))
90179-10065	Nut, Master Cylinder Push Rod Clevis Lock	Steering Column & Shaft ([05.1993 - ] (9305- ))
90363-18005	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90460-84001	New Genuine Part	Steering Column & Shaft ([05.1993 - ] (9305- ))
90501-40017	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90507-07003	Spring, Tension W/damper(For Adjuster Memory Cover)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90507-08010	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90507-08012	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90507-10019	Spring, Tension(For Tilt Steering Pawl Stopper)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90507-12035	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1993 - ] (9305- ))
90560-10062	Spacer(For Tilt Lever Lock Shaft)	Steering Column & Shaft ([05.1993 - ] (9305- ))
91651-60616	BOLT	Steering Column & Shaft ([05.1993 - ] (9305- ))
93315-14010	SCREW	Steering Column & Shaft ([05.1993 - ] (9305- ))
93568-55014	Screw	Steering Column & Shaft ([05.1993 - ] (9305- ))
94110-40800	Nut(For Steering Damper)	Steering Column & Shaft ([05.1993 - ] (9305- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Steering Column & Shaft ([05.1993 - ] (9305- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([05.1993 - ] (9305- ))
94613-10601	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([05.1993 - ] (9305- ))
94614-10600	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([05.1993 - ] (9305- ))
96112-10360	Clamp, Sub Radiator Inlet Hose	Steering Column & Shaft ([05.1993 - ] (9305- ))
96160-00800	Ring, E(For Counter Weight)	Steering Column & Shaft ([05.1993 - ] (9305- ))

Source: Public OEM parts-catalog data
Variants: 2 / 57
Category: 223
Collected: 2026-08-04
