JZA80

Toyota SUPRA · 1993 · 5,236 parts · 223 categories

5,236 items

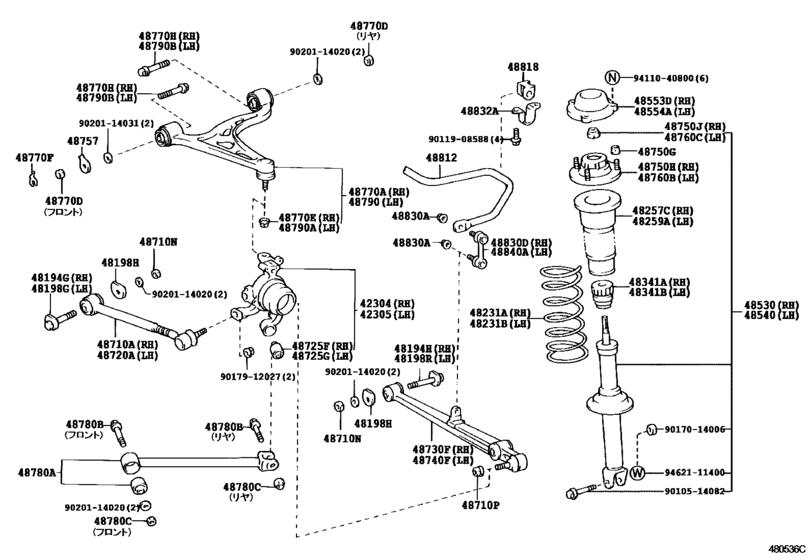

Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605)) 60

#	OEM	Part name
42304	42304-14020	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-14020	Carrier Sub-Assy, Rear Axle, Lh
48194	48190-22021	Cam Assy, Camber Adjust
48194	48190-24030	Cam, Rear Suspension Camber Adjust, No.1
48198	48198-14010	Cam, Front Suspension Camber Adjust, No.2
48198	48198-50011	Cam, Rear Suspension Camber Adjust, No.2
48231	48231-1B110	Spring, Coil, Rear Rh
48231	48231-1B220	Spring, Coil, Rear
48257	48257-24010	Insulator, Rear Coil Spring, Upper
48341	48341-24040	Bumper, Rear Spring, No.1 Rh
48530	48530-09015	Absorber Assy, Shock, Rear
48530	48530-09016	Absorber Assy, Shock, Rear
48530	48530-19515	Absorber Assy, Shock, Rear
48530	48530-19516	Absorber Assy, Shock, Rear
48530	48530-19835	Absorber Assy, Shock, Rear Rh
48553	48553-14050	Cap, Rear Shock Absorber, Rh
48710	48710-14110	Arm Assy, Rear Suspension, No.1
48710	90170-14012	Nut, Rack End Lock
48710	90179-14012	Nut(For Rear Suspension Arm)
48725	48725-14070	Bush, Rear Axle Carrier, Rh
48730	48730-14030	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-14040	Arm Assy, Rear Suspension, No.2 Rh
48740	48740-14060	Arm Assy, Rear Suspension, No.2 Lh
48740	48740-14070	Arm Assy, Rear Suspension, No.2 Lh
48750	90179-08235	Nut(For Rear Suspension Support)
48750	48750-14040	Support Assy, Rear Suspension, Rh
48750	48750-14041	Support Assy, Rear Suspension, Rh
48750	48750-14050	Support Assy, Rear Suspension, Rh
48750	90177-12002	Nut
48750	94187-11200	Nut
48757	48757-24010	Attachment, Rear Suspension Arm
48770	48770-19025	Arm Assy, Upper Control, Rear Rh
48770	90179-14054	Nut(For Rear Upper Control Arm)
48770	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48770	90523-16001	Ring, E(For Rear Upper Control Arm)
48770	90119-14040	Bolt(For Rear Upper Control Arm)
48780	48780-14030	Rod Assy, Strut, Rear
48780	90105-14065	Bolt(For Strut Rod)
48780	90119-14042	Bolt(For Strut Rod)
48780	90179-14045	Nut(For Front Shock Absorber Bracket Lower)
48790	48790-19025	Arm Assy, Upper Control, Rear Lh
48812	48812-14221	Bar, Stabilizer, Rear
48812	48812-14231	Bar, Stabilizer, Rear
48812	48812-14260	Bar, Stabilizer, Rear
48818	48818-14050	Bush, Stabilizer, Rear
48818	48818-14060	Bush, Stabilizer, Rear
48818	48818-14090	Bush, Stabilizer, Rear
48830	90179-10054	Nut, No.1 (For Center Support Bearing)
48830	48830-14050	Link Assy, Rear Stabilizer
48832	48832-14050	Bracket, Rear Stabilizer Bar, No.1
48840	48840-14030	Link Assy, Rear Stabilizer
9010514082	90105-14082	BOLT, WASHER BASED
9011908588	90119-08588	New Genuine Part
9017014006	90170-14006	Nut
9017912027	90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)
9020114020	90201-14020	WASHER
9020114031	90201-14031	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9462111400	94621-11400	WASHER

OEM	Part name	Category
42304-14020	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
42305-14020	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48190-22021	Cam Assy, Camber Adjust	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48190-24030	Cam, Rear Suspension Camber Adjust, No.1	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48198-14010	Cam, Front Suspension Camber Adjust, No.2	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48198-50011	Cam, Rear Suspension Camber Adjust, No.2	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48231-1B110	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48231-1B220	Spring, Coil, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48257-24010	Insulator, Rear Coil Spring, Upper	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48341-24040	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48530-09015	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48530-09016	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48530-19515	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48530-19516	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48530-19835	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48553-14050	Cap, Rear Shock Absorber, Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48710-14110	Arm Assy, Rear Suspension, No.1	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48725-14070	Bush, Rear Axle Carrier, Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48730-14030	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48730-14040	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48740-14060	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48740-14070	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48750-14040	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48750-14041	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48750-14050	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48757-24010	Attachment, Rear Suspension Arm	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48770-19025	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48780-14030	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48790-19025	Arm Assy, Upper Control, Rear Lh	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48812-14221	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48812-14231	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48812-14260	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48818-14050	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48818-14060	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48818-14090	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48830-14050	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48832-14050	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
48840-14030	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90105-14065	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90105-14082	BOLT, WASHER BASED	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90119-08588	New Genuine Part	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90119-14040	Bolt(For Rear Upper Control Arm)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90119-14042	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90170-14006	Nut	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90170-14012	Nut, Rack End Lock	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90177-12002	Nut	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90179-08235	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90179-10054	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90179-14012	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90179-14045	Nut(For Front Shock Absorber Bracket Lower)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90179-14054	Nut(For Rear Upper Control Arm)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90201-14020	WASHER	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90201-14031	New Genuine Part	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
90523-16001	Ring, E(For Rear Upper Control Arm)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
94110-40800	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
94187-11200	Nut	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
94621-11400	WASHER	Rear Spring & Shock Absorber ([05.1993 - 05.1996] (9305-9605))
