JZA80

Toyota SUPRA · 1993 · 5,236 parts · 223 categories
JZA80 ×

← Back to categories

5,236 items

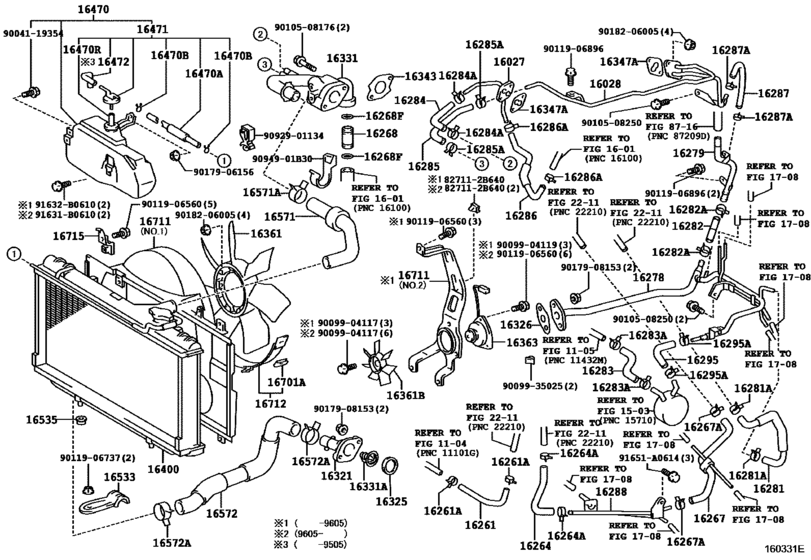

Radiator & Water Outlet ([05.1993 - ] (9305- )2JZGTE) 105
#OEMPart name
16027 16027-46020 Pipe Sub-Assy, Turbo Water, No.1
16028 16028-46020 Pipe Sub-Assy, Turbo Water, No.2
16261 16261-46040 Hose, Water By-Pass
16261 16261-46050 Hose, Water By-Pass
16261 90467-13050 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51300 Clamp, Hose
16264 16264-46030 Hose, Water By-Pass, No.2
16264 16264-46060 Hose, Water By-Pass, No.2
16267 16267-46011 Hose, Water By-Pass, No.3
16268 16268-46020 Pipe, Water By-Pass, No.1
16268 96761-24023 Ring, O(For Water By-Pass Pipe)
16278 16278-46030 Pipe, Water By-Pass, No.2
16278 16278-46090 Pipe, Water By-Pass, No.2
16279 16279-46010 Pipe, Water By-Pass, No.3
16279 16279-46020 Pipe, Water By-Pass, No.3
16281 16281-46020 Hose, Water By-Pass, No.4
16281 16281-46030 Hose, Water By-Pass, No.4
16282 16282-46010 Hose, Water By-Pass, No.5
16282 90467-22003 Clip(For Ventilation Hose No.2)
16282 90467-21010 Clip(For Ventilation Hose No.2)
16283 16283-46030 Hose, Water By-Pass, No.6
16283 16283-46031 Hose, Water By-Pass, No.6
16283 90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2)
16283 96134-41900 Clip Or Clamp(For Ventilation Hose)
16284 16284-46020 Hose, Turbo Water, No.1
16284 90467-15016 Clip Or Clamp(For Ventilation Hose)
16284 96135-41400 Clip(For Water By-Pass Hose No.1)
16286 16286-46010 Hose, Turbo Water, No.3
16287 16287-46010 Hose, Turbo Water, No.4
16288 16288-46011 Pipe, Water By-Pass, No.4
16288 16288-46020 Pipe, Water By-Pass, No.4
16295 16295-46040 Hose, Water By-Pass, No.7
16321 16321-46050 Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16326 16325-46010 Gasket, Water Inlet Housing, No.2
16331 16331-46050 Outlet, Water
16331 16331-46080 Outlet, Water
16331 90916-03093 Thermostat
16343 16343-46030 Gasket, Water Outlet Housing
16347 16347-42020 Gasket, Water By-Pass
16361 16361-46060 Fan
16361 16361-46070 Fan
16363 16363-46060 Motor, Cooling Fan
16363 16363-50021 Motor, Cooling Fan
16400 16400-46320 Radiator Assy
16400 16400-46430 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16401 16401-62100 Cap Sub-Assy, Radiator
16401 16401-31520 Radiator Cap Sub-Assy (108kPa)
16401 16401-36020 Cap Sub-Assy, Radiator
16403 16403-46320 Core Sub-Assy, Radiator
16403 16403-46430 Core Sub-Assy, Radiator
16406 16406-62060 Support(For Oil Cooler)
16442 16442-46090 Ring, O(For Radiator Upper Tank)
16442 16462-46320 Ring, O(For Radiator Upper Tank)
16451 16452-46320 Plate, Radiator Core, Upper
16462 16462-46090 Ring, O(For Radiator Lower Tank)
16470 16470-46130 Tank Assy, Radiator Reserve
16470 90099-33534 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-46120 Cap Sub-Assy, Reserve Tank
16491 16491-46090 Cooler, Oil(For Atm)
16491 16492-50020 Ring, O(For Atm Oil Cooler)
16491 16493-62060 Washer, Plate(For Atm Oil Cooler)
16495 16495-50010 Nut, Flare(For Atm Oil Cooler)
16495 16495-50020 Nut, Flare(For Atm Oil Cooler)
16533 16505-46040 Support, Radiator, Upper
16535 90480-40012 Support, Radiator, Lower
16571 16571-46150 Hose, Radiator, Inlet
16571 16571-46220 Hose, Radiator, Inlet
16571 90467-37005 Clip(For Water Inlet Hose)
16571 90467-37006 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-46160 Hose, Radiator, Outlet
16572 90467-41002 Clamp Or Clip, Hose(For Radiator Inlet)
16572 90466-41008 Clamp, Hose(For Radiator Hose)
16572 90467-41007 Clamp Or Clip, Hose(For Radiator Inlet)
16701 90468-05109 Clip(For Fan Shroud)
16711 16711-46160 Shroud, Fan
16711 16711-46170 Shroud, Fan
16711 16711-46200 Shroud, Fan
16712 16702-46010 Shroud, Fan, No.2
16715 16715-46010 Bracket, Fan Shroud
91631 91631-B0610 BOLTWWASHER
91632 91632-B0610 New Genuine Part
91651 91651-A0614 BOLT WWASHER
91651 91653-A0614 BOLT WWASHER
827112 82711-2B640 Wire, Fuse To Fuse(for Combustion Heater)
9094901 90949-01B30 CLAMP
9004119354 90041-19354 BOLT
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904119 90099-04119 BOLT WASHER HEAD
9009935025 90099-35025 New Genuine Part
9010508176 90105-08176 BOLT
9010508250 90105-08250 Bolt, Flange
9011906560 90119-06560 Bolt
9011906737 90119-06737 BOLT WWASHER
9011906896 90119-06896 New Genuine Part
9011906896 90119-06493 BOLT WITH WASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017908153 90179-08153 NUT
9018206005 90182-06005 NUT W-WASHER
9092901134 90929-01134 Clamp, Radiator Reserve Tank Hose
