Search › Model › JZA80

JZA80

Toyota SUPRA · 1993 · 5,236 parts · 223 categories

5,236 items

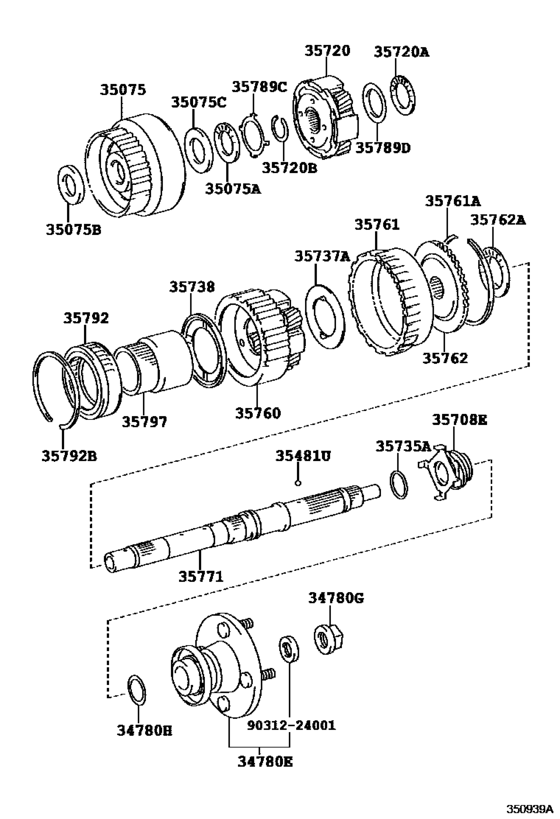

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT) 27

#	OEM	Part name
34780	34780-14020	Yoke Assy, Flange (For Automatic Transmission)
34780	90179-22018	Nut (For Flange Yoke)
34780	90201-30005	Washer, Plate (For Flange Yoke)
35075	35075-30020	Gear Sub-Assy, Front Planetary Ring
35075	90374-49004	Bearing, Thrust Needle Roller (For Front Planetary Ring)
35075	35789-30120	Race, Thrust Bearing (For Front Planetary Ring Gear Front)
35075	35789-30210	Race, Thrust Bearing (For Front Planetary Ring Gear Front)
35708	35708-50020	Gear Sub-Assy, Speedometer Drive
35720	35720-30100	Gear Assy, Front Planetary
35720	90374-35005	Bearing, Thrust Needle Roller (For Front Planetary Gear)
35720	90520-24029	Ring, Shaft Snap (For Front Planetary Gear)
35735	35735-30020	Ring, Planetary Output Shaft Oil Seal
35737	35737-30030	Washer, Planetary Carrier Thrust, No.1
35738	35739-30030	Washer, Planetary Carrier Thrust, No.2
35760	35705-14010	Gear Assy, Rear Planetary
35761	35761-50010	Gear, Rear Planetary Ring
35761	90521-99024	Ring, Hole Snap (For Overdrive Planetary Ring Gear)
35762	35762-50010	Flange, Rear Planetary Ring Gear
35762	90374-38003	Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35762	90374-39001	Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35771	35771-14040	Shaft, Output
35789	35789-30240	Race, Thrust Bearing (For Front Planetary Gear Front)
35789	35789-30200	Race, Thrust Bearing (For Front Planetary Gear Rear)
35792	35792-14020	Clutch, 1 Way, No.2
35792	90521-87001	Ring, Hole Snap (For Rear Planetary Ring Gear)
35797	35797-50010	Race, 1 Way Clutch Inner
9031224001	90312-24001	Ring, O (For Atm Flange Yoke)

OEM	Part name	Category
34780-14020	Yoke Assy, Flange (For Automatic Transmission)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35075-30020	Gear Sub-Assy, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35705-14010	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35708-50020	Gear Sub-Assy, Speedometer Drive	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35720-30100	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35735-30020	Ring, Planetary Output Shaft Oil Seal	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35737-30030	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35739-30030	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35761-50010	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35762-50010	Flange, Rear Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35771-14040	Shaft, Output	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35789-30120	Race, Thrust Bearing (For Front Planetary Ring Gear Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35789-30200	Race, Thrust Bearing (For Front Planetary Gear Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35789-30210	Race, Thrust Bearing (For Front Planetary Ring Gear Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35789-30240	Race, Thrust Bearing (For Front Planetary Gear Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35792-14020	Clutch, 1 Way, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
35797-50010	Race, 1 Way Clutch Inner	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90179-22018	Nut (For Flange Yoke)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90201-30005	Washer, Plate (For Flange Yoke)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90312-24001	Ring, O (For Atm Flange Yoke)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90374-35005	Bearing, Thrust Needle Roller (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90374-38003	Bearing, Thrust Needle Roller (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90374-39001	Bearing, Thrust Needle Roller (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90374-49004	Bearing, Thrust Needle Roller (For Front Planetary Ring)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90520-24029	Ring, Shaft Snap (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90521-87001	Ring, Hole Snap (For Rear Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
90521-99024	Ring, Hole Snap (For Overdrive Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.1993 - ] A340E (9305- )4FC..TWT)
