JZA80

Toyota SUPRA · 1993 · 5,236 parts · 223 categories

← Back to categories

5,236 items

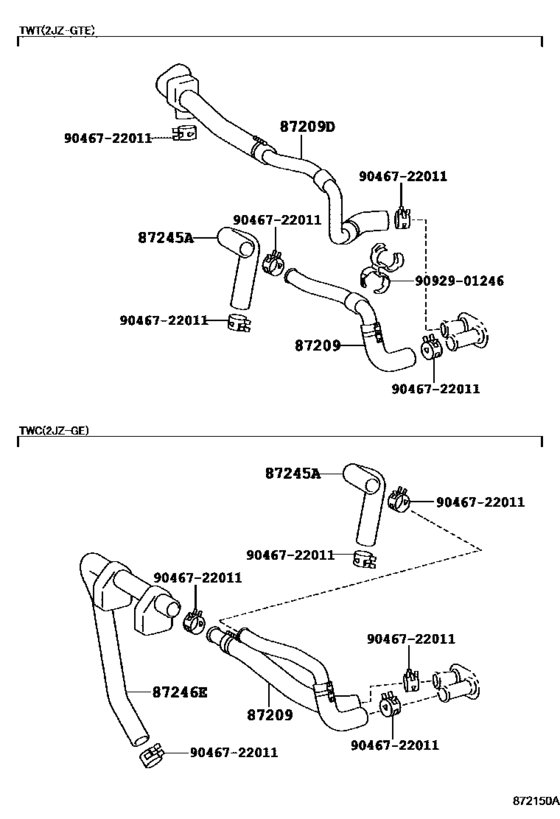

Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- )) 10

#	OEM	Part name
87209	87209-14820	Hose Sub-Assy, Water
87209	87209-14800	Hose Sub-Assy, Water
87209	87209-14880	Hose Sub-Assy, Water
87209	87209-14810	Hose Sub-Assy, Water, D
87209	87209-14870	Hose Sub-Assy, Water, D
87245	87245-1B300	Hose, Heater Water, Inlet A
87245	87245-1B360	Hose, Heater Water, Inlet A
87246	87245-1B350	Hose, Heater Water, Outlet E
9046722011	90467-22011	Clip(For Water By-Pass Hose No.1)
9092901246	90929-01246	Clamp

OEM	Part name	Category
87209-14800	Hose Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
87209-14810	Hose Sub-Assy, Water, D	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
87209-14820	Hose Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
87209-14870	Hose Sub-Assy, Water, D	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
87209-14880	Hose Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
87245-1B300	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
87245-1B350	Hose, Heater Water, Outlet E	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
87245-1B360	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
90467-22011	Clip(For Water By-Pass Hose No.1)	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
90929-01246	Clamp	Heating & Air Conditioning - Water Piping ([05.1993 - ] (9305- ))
