Search › Model › JZA80

JZA80

Toyota SUPRA · 1993 · 5,236 parts · 223 categories

5,236 items

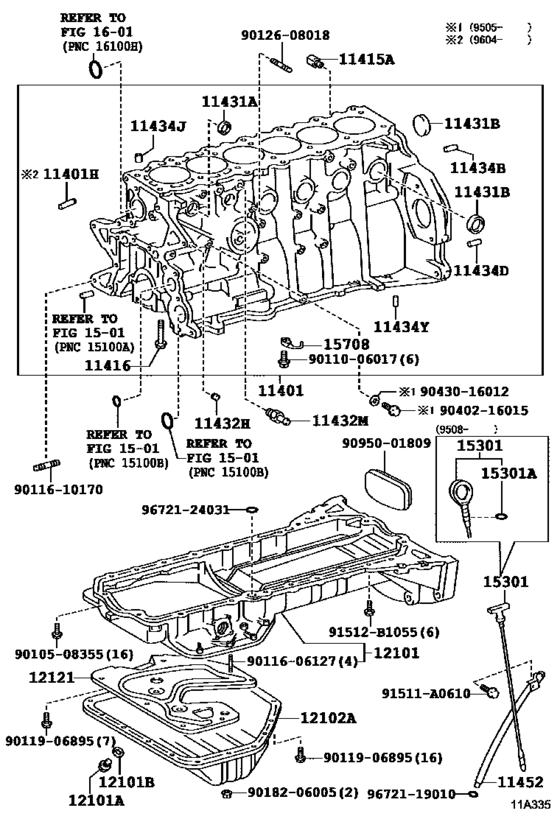

Cylinder Block ([05.1993 - ] (9305- )2JZGTE) 44

#	OEM	Part name
11401	11401-49677	Block Sub-Assy, Cylinder
11401	11401-49715	Block Sub-Assy, Cylinder
11401	11401-49678	Block Sub-Assy, Cylinder
11401	90406-08003	Union(For Cylinder Block Llc Drain)
11415	90910-09102	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02104	Bolt(For Crankshaft Bearing Cap Set)
11431	96411-42500	Plug, Tight, No.1
11431	96411-43500	Plug, Tight, No.1
11432	90344-51005	Plug, W/head Taper Screw, No.1
11432	90404-53001	Union(For Cylinder Block)
11434	90250-10192	Pin, Straight(For Timing Gear Cover Set)
11434	90250-06003	Pin, Straight
11434	90253-14003	Pin, Ring(For Crankshaft Bearing Cap Set)
11452	11452-46060	Guide, Oil Level Gage
12101	12111-46051	Pan Sub-Assy, Oil
12101	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
12101	12111-46052	Pan Sub-Assy, Oil
12101	90341-12026	Plug, Drain
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12102	12102-46030	Pan Sub-Assy, Oil, No.2
12102	12102-46031	Pan Sub-Assy, Oil, No.2
12121	12121-46030	Plate, Oil Pan Baffle, No.1
15301	15301-46022	Gage Sub-Assy, Oil Level
15301	15301-46023	Gage Sub-Assy, Oil Level
15301	96741-19005	O-Ring (For Oil Level Gage)
15708	15790-88401	Nozzle Sub-Assy, Oil, No.1
91511	91511-A0610	Bolt (For Propeller Shaft Heat Insulator)
91511	91531-A0610	Bolt (For Propeller Shaft Heat Insulator)
91512	91512-B1055	BOLT FLANGE
9010508355	90105-08355	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9011006017	90110-06017	BOLT HEXAGON SOCKET
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9011610170	90116-10170	BOLT STUD
9011906895	90119-06895	BOLT WWASHER
9011906895	90119-06755	BOLT WWASHER
9012608018	90126-08018	Bolt, Stud(For Egr Valve)
9018206005	90182-06005	NUT W-WASHER
9040216015	90402-16015	NUT UNION
9043016012	90430-16012	Gasket, W/head Taper Screw Plug
9095001809	90950-01809	Plug, Semi Circular(For Chain Cover No.2)
9672119010	96721-19010	Ring, O(For Oil Level Gage Guide)
9672124031	96721-24031	Ring, O
9672124031	90301-A0032	Ring, O(For Oil Strainer)

OEM	Part name	Category
11401-49677	Block Sub-Assy, Cylinder	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
11401-49678	Block Sub-Assy, Cylinder	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
11401-49715	Block Sub-Assy, Cylinder	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
11452-46060	Guide, Oil Level Gage	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
12102-46030	Pan Sub-Assy, Oil, No.2	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
12102-46031	Pan Sub-Assy, Oil, No.2	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
12111-46051	Pan Sub-Assy, Oil	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
12111-46052	Pan Sub-Assy, Oil	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
12121-46030	Plate, Oil Pan Baffle, No.1	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
15301-46022	Gage Sub-Assy, Oil Level	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
15301-46023	Gage Sub-Assy, Oil Level	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
15790-88401	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90105-08355	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90110-06017	BOLT HEXAGON SOCKET	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90116-06127	Bolt, Stud(For Oil Pan)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90116-10170	BOLT STUD	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90119-06755	BOLT WWASHER	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90119-06895	BOLT WWASHER	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90126-08018	Bolt, Stud(For Egr Valve)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90182-06005	NUT W-WASHER	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90250-06003	Pin, Straight	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90253-14003	Pin, Ring(For Crankshaft Bearing Cap Set)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90301-A0032	Ring, O(For Oil Strainer)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90341-12026	Plug, Drain	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90344-51005	Plug, W/head Taper Screw, No.1	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90402-16015	NUT UNION	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90404-53001	Union(For Cylinder Block)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90406-08003	Union(For Cylinder Block Llc Drain)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90430-16012	Gasket, W/head Taper Screw Plug	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90910-02104	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90910-09102	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
90950-01809	Plug, Semi Circular(For Chain Cover No.2)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
91511-A0610	Bolt (For Propeller Shaft Heat Insulator)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
91512-B1055	BOLT FLANGE	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
91531-A0610	Bolt (For Propeller Shaft Heat Insulator)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
96411-42500	Plug, Tight, No.1	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
96411-43500	Plug, Tight, No.1	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
96721-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
96721-24031	Ring, O	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
96741-19005	O-Ring (For Oil Level Gage)	Cylinder Block ([05.1993 - ] (9305- )2JZGTE)
