Search › Model › JZA80
JZA80

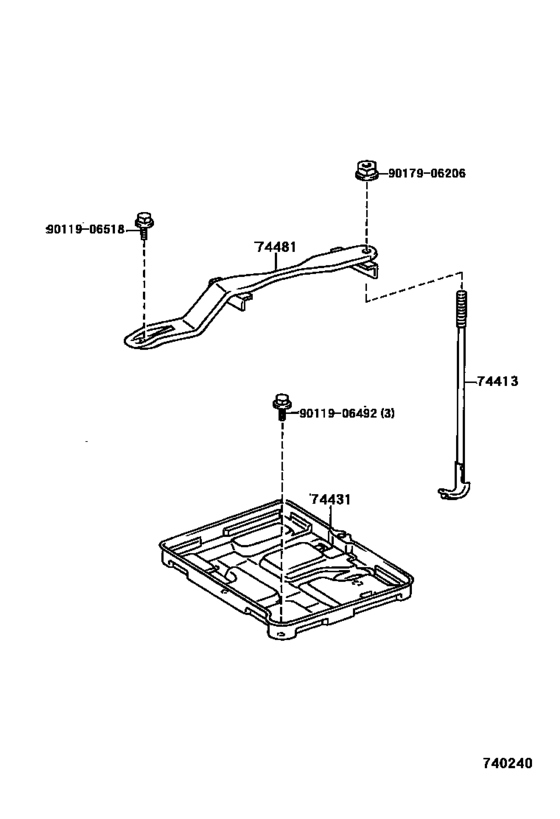

Battery Carrier ([05.1993 - ] (9305- )) 8
| # | OEM | Part name |
|---|---|---|
| 74413 | 74407-14020 | Bolt, Battery Clamp |
| 74431 | 74431-14070 | Tray, Battery |
| 74481 | 74404-14321 | Clamp, Battery Hold Down |
| 74481 | 74404-14330 | Clamp, Battery Hold Down |
| 74481 | 74404-14320 | Clamp, Battery Hold Down |
| 9011906492 | 90119-06492 | BOLT |
| 9011906518 | 90119-06518 | BOLT W-WASHER |
| 9017906206 | 90179-06206 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74404-14320 | Clamp, Battery Hold Down | Battery Carrier ([05.1993 - ] (9305- )) |
| 74404-14321 | Clamp, Battery Hold Down | Battery Carrier ([05.1993 - ] (9305- )) |
| 74404-14330 | Clamp, Battery Hold Down | Battery Carrier ([05.1993 - ] (9305- )) |
| 74407-14020 | Bolt, Battery Clamp | Battery Carrier ([05.1993 - ] (9305- )) |
| 74431-14070 | Tray, Battery | Battery Carrier ([05.1993 - ] (9305- )) |
| 90119-06492 | BOLT | Battery Carrier ([05.1993 - ] (9305- )) |
| 90119-06518 | BOLT W-WASHER | Battery Carrier ([05.1993 - ] (9305- )) |
| 90179-06206 | Nut | Battery Carrier ([05.1993 - ] (9305- )) |
