JZA70

Toyota SUPRA · 1990 · 4,783 parts · 164 categories
JZA70 ×

← Back to categories

4,783 items

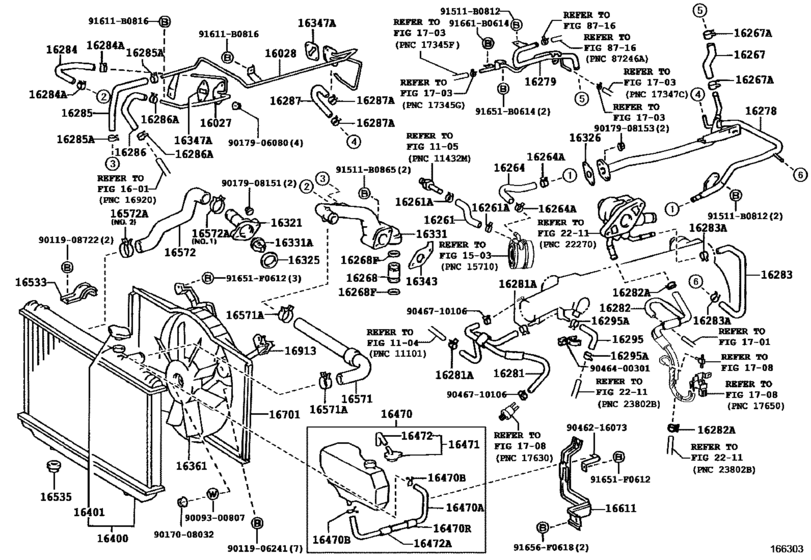

Radiator & Water Outlet ([08.1988 - ] (8808- )1JZGTE) 137
#OEMPart name
16027 16027-88400 Pipe Sub-Assy, Turbo Water, No.1
16028 16028-88400 Pipe Sub-Assy, Turbo Water, No.2
16261 16261-88400 Hose, Water By-Pass
16261 90467-20005 Clip(For Ventilation Hose No.2)
16261 96134-41900 Clip Or Clamp(For Ventilation Hose)
16264 16264-88400 Hose, Water By-Pass, No.2
16267 16267-88400 Hose, Water By-Pass, No.3
16267 90467-22003 Clip(For Ventilation Hose No.2)
16267 90467-21010 Clip(For Ventilation Hose No.2)
16268 16268-88400 Pipe, Water By-Pass, No.1
16268 96761-24023 Ring, O(For Water By-Pass Pipe)
16278 16278-88400 Pipe, Water By-Pass, No.2
16278 16278-88401 Pipe, Water By-Pass, No.2
16278 92122-60816 Bolt, Stud(For Water Pump Set)
16279 16279-88400 Pipe, Water By-Pass, No.3
16281 16281-88400 Hose, Water By-Pass, No.4
16281 90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)
16281 96135-51300 Clamp, Hose
16282 16282-88400 Hose, Water By-Pass, No.5
16283 16283-88400 Hose, Water By-Pass, No.6
16284 16284-88400 Hose, Turbo Water, No.1
16284 90467-15016 Clip Or Clamp(For Ventilation Hose)
16284 96135-41400 Clip(For Water By-Pass Hose No.1)
16285 16285-88400 Hose, Turbo Water, No.2
16286 16286-88400 Hose, Turbo Water, No.3
16287 16287-88400 Hose, Turbo Water, No.4
16295 16295-88400 Hose, Water By-Pass, No.7
16321 16321-88400 Inlet, Water
16321 16321-88401 Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16326 16325-46010 Gasket, Water Inlet Housing, No.2
16331 16304-88400 Outlet, Water
16331 90916-03092 Thermostat
16331 90916-03093 Thermostat
16343 16343-88400 Gasket, Water Outlet Housing
16347 16347-88380 Gasket, Water By-Pass
16361 16911-46010 Fan
16400 16400-46070 Radiator Assy
16400 16400-46220 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16401 16401-62100 Cap Sub-Assy, Radiator
16401 16401-31520 Radiator Cap Sub-Assy (108kPa)
16401 16401-36020 Cap Sub-Assy, Radiator
16401 16401-72090 Cap Sub-Assy, Radiator
16401 16401-20353 Cap Sub-Assy, Radiator
16401 16401-36030 Cap Sub-Assy, Radiator
16403 16403-42240 Core Sub-Assy, Radiator
16403 16403-42241 Core Sub-Assy, Radiator
16406 16406-62060 Support(For Oil Cooler)
16442 16462-42240 Ring, O(For Radiator Upper Tank)
16451 16452-42240 Plate, Radiator Core, Upper
16470 16470-46020 Tank Assy, Radiator Reserve
16470 16477-46020 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 85338-70070 Hose Or Pipe(For Radiator Reserve Tank)
16471 16405-70120 Cap Sub-Assy, Reserve Tank
16472 85338-70100 Hose, Breather
16472 16478-46020 Hose, No.3(For Radiator Reserve Tank)
16491 16491-46070 Cooler, Oil(For Atm)
16491 16492-35080 Ring, O(For Atm Oil Cooler)
16491 16492-62060 Ring, O(For Atm Oil Cooler)
16491 16493-62060 Washer, Plate(For Atm Oil Cooler)
16533 16505-42010 Support, Radiator, Upper
16535 90480-40012 Support, Radiator, Lower
16571 16571-46030 Hose, Radiator, Inlet
16571 90467-37002 Clip(For Water Inlet Hose)
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-46030 Hose, Radiator, Outlet
16572 16572-46100 Hose, Radiator, Outlet
16572 90467-41003 Clamp
16572 90467-41007 Clamp Or Clip, Hose(For Radiator Inlet)
16572 90466-41008 Clamp, Hose(For Radiator Hose)
16611 16402-42040 Bracket, Radiator Reserve Tank
16701 16912-46020 Shroud Sub-Assy, Fan
16906 16906-50010 Gear Set, Hydraulic
16906 16906-50020 Gear Set, Hydraulic
16906 16906-50030 Gear Set, Hydraulic
16907 16907-46020 Pipe Sub-Assy, Hydraulic Gear Motor
16913 16913-46020 Stay, Hydraulic Motor Fan Shroud
16923 16923-46020 Hose, Hydraulic Motor Suction, No.1
16923 90467-21005 Clip(For Suction Hose No.1)
16927 16927-46020 Hose, Hydraulic Motor Pressure
16927 90401-16013 Bolt, Union(For Pressure Hose)
16927 90401-16015 Bolt, Union(For Pressure Hose)
16927 44327-12010 Gasket(For Pressure Hose)
16930 16930-46010 Cooler Assy, Hydraulic Motor Oil
16940 16940-46020 Pipe Assy, Hydraulic Motor Return
16941 16941-46020 Hose, Hydraulic Motor Return, No.1
16941 90467-16013 Clip(For Oil Return Hose)
16941 90467-16022 Clip(For Water Inlet Hose)
16942 16942-46020 Hose, Hydraulic Motor Return, No.2
16943 16943-46020 Hose, Hydraulic Motor Return, No.3
16950 16950-46020 Tank Assy, Hydraulic Motor Reserve
16951 16951-46020 Bracket, Hydralic Motor Reserve Tank
16953 16953-50011 Cap, Hydraulic Motor Reserve Tank
16954 16954-50010 Strainer, Hydraulic Motor Reserve Tank
16960 16960-46020 Motor Assy, Hydraulic Gear
16961 16961-50010 Shaft, Hydraulic Gear Motor
16962 16962-46020 Cover, Hydraulic Gear Motor
91511 91511-B0812 BOLT FLANGE
91511 91511-B0865 New Genuine Part
91611 91611-B0816 Bolt
91651 91651-B0614 BOLT WWASHER
91651 91651-F0612 New Genuine Part
91651 91651-G0612 New Genuine Part
91651 91651-F0614 New Genuine Part
91656 91656-F0618 New Genuine Part
91656 90119-06482 New Genuine Part
91661 91661-B0614 New Genuine Part
9009140616 90091-40616 New Genuine Part
9009300807 90093-00807 New Genuine Part
9009690033 90096-90033 New Genuine Part
9009901093 90099-01093 Washer, Oil Filter Cartridge Guide
9009901551 90099-01551 New Genuine Part
9009904120 90099-04120 New Genuine Part
9009914107 90099-14107 RING
9009914108 90099-14108 New Genuine Part
9009915035 90099-15035 OIL SEAL
9011906089 90119-06089 New Genuine Part
9011906241 90119-06241 New Genuine Part
9011908722 90119-08722 New Genuine Part
9017008032 90170-08032 New Genuine Part
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
9017906080 90179-06080 NUT
9017908151 90179-08151 NUT
9017908153 90179-08153 NUT
9046216073 90462-16073 New Genuine Part
9046220015 90462-20015 New Genuine Part
9046400301 90464-00301 Clamp
9046710106 90467-10106 Clip, No.1(For Idle-Up Hose)
9046710106 96132-51000 Clip Or Clamp(For Ventilation Hose)
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618 91656-40618 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618 91651-60614 Bolt
