JY16

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1972 · 3,297 parts · 136 categories
JY16 ×

← Back to categories

3,297 items

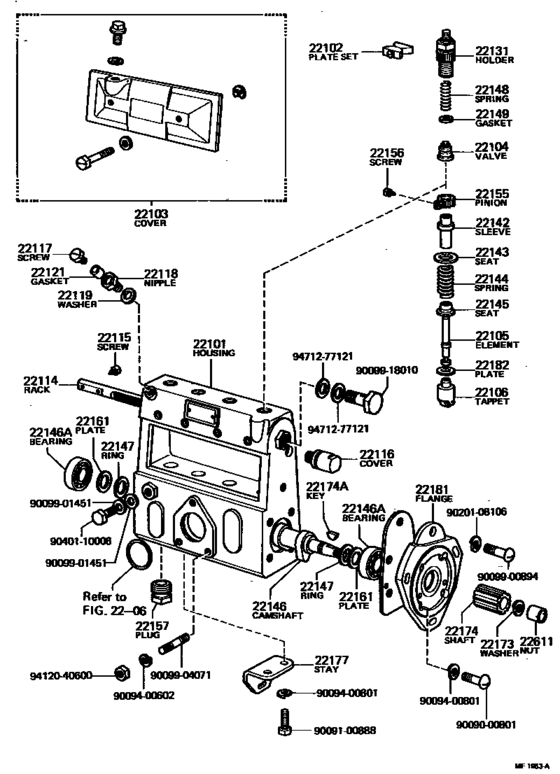

Injection Pump Body ([08.1977 - 02.1979] (7708-7902)2J) 71
#OEMPart name
22101 22190-48032 Housing Sub-Assy, Injection Pump
22102 22102-77021 Plate Set, Valve Holder Lock
22103 22103-46012 Cover Sub-Assy, Injection Pump
22103 22103-48030 Cover Sub-Assy, Injection Pump
22104 22104-77020 Valve Sub-Assy, Injection Pump Delivery
22105 22105-48023 Element Sub-Assy, Injection Pump
22106 22106-46010 Tappet Sub-Assy, Injection Pump
22114 22114-46010 Rack, Control
22114 22114-48030 Rack, Control
22115 22115-77020 Screw, Rack Guide
22115 22115-78140 Screw, Rack Guide
22116 22116-46010 Cover, Control Rack
22117 22117-77020 Screw, Air Bleeder
22118 22118-77020 Nipple, Air Bleeder
22119 22119-77020 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22121 22121-77020 Packing, Air Bleeder Screw
22131 22131-77020 Holder, Delivery Valve
22142 22142-77020 Sleeve, Plunger Control
22142 22142-58230 Sleeve, Plunger Control
22143 22143-77020 Seat, Spring Upper
22144 22144-46010 Spring, Pump Plunger
22145 22145-46010 Seat, Spring, Lower
22146 22146-56010 Camshaft, Injection Pump
22146 90099-10087 Bearing(For Injection Camshaft)
22146 90999-30203 Bearing(For Injection Camshaft)
22146 97600-30203 Bearing(for Injection Camshaft)
22147 22147-77020 Ring, Camshaft Adjust
22148 22148-46010 Spring, Delivery Valve
22149 22149-76010 Gasket, Delivery Valve
22155 22155-76010 Pinion, Plunger Control
22156 22156-76010 Screw, Plunger Control Pinion Clamp
22157 22157-48023 Plug, Injection Pump Felt Plate
22157 22157-76010 Plug, Injection Pump Felt Plate
22161 22161-76010 Plate, Camshaft Shim
22161 22162-76010 Plate, Camshaft Shim
22161 22163-76010 Plate, Camshaft Shim
22161 22164-76010 Plate, Camshaft Shim
22161 22165-76010 Plate, Camshaft Shim
22161 22166-76010 Plate, Camshaft Shim
22173 22173-46010 Washer, Spring
22174 22174-47010 Shaft, Spline
22174 90099-13002 Key(For Spline Shaft)
22177 22177-48030 Stay, Injection Pump Body
22181 22181-48021 Flange, Injection Pump
22181 22181-48031 Flange, Injection Pump
22182 22182-46010 Plate, Tappet Adjusting Shim
22182 22183-46010 Plate, Tappet Adjusting Shim
22182 22184-46010 Plate, Tappet Adjusting Shim
22182 22185-46010 Plate, Tappet Adjusting Shim
22182 22186-46010 Plate, Tappet Adjusting Shim
22182 22187-46010 Plate, Tappet Adjusting Shim
22182 22188-46010 Plate, Tappet Adjusting Shim
22182 22189-46010 Plate, Tappet Adjusting Shim
22611 22611-46010 Nut, Timer Round
9009000801 90090-00801 New Genuine Part
9009000801 90099-00928 New Genuine Part
9009100888 90091-00888 Bolt (for Transmission Control Cable Bracket)
9009100888 91611-B0816 Bolt
9009400602 90094-00602 Washer, Lock, No.2
9009400602 94511-00600 Washer, Lock, No.2
9009400801 90094-00801 New Genuine Part
9009400801 94511-00800 WASHERSPRING
9009900894 90099-00894 New Genuine Part
9009901451 90099-01451 Washer, Injection Pump Drain Union
9009904071 90099-04071 New Genuine Part
9009918010 90099-18010 Screw, Fuel Pipe Follow
9020108106 90201-08106 Washer(For Cap Nut)
9040110006 90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe)
9412040600 94120-40600 Nut, Wire Adjusting, No.1
9471277121 94712-77121 Gasket, Nipple Union(For Fuel)
