Search › Model › JU30
JU30

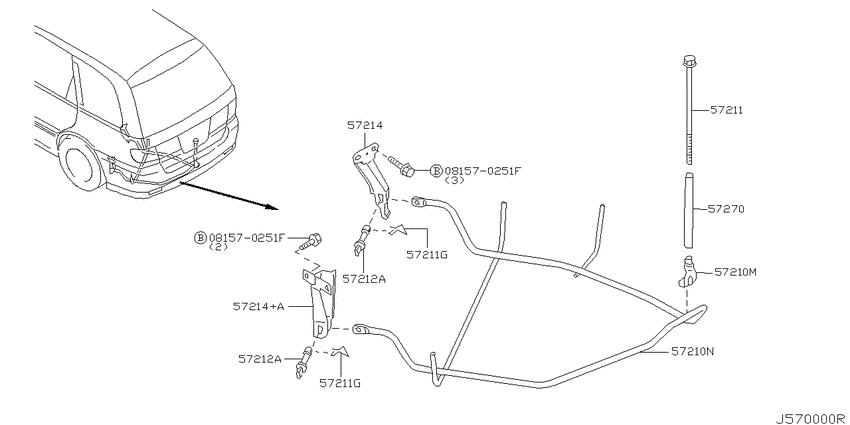

Spare tire hanger (2001-08-01 ~ ; W) 7
| # | OEM | Part name |
|---|---|---|
| 57210 | 57210-AD000 | Hanger-Spare Tire |
| 57211 | 57235-AD000 | Bolt-Clamp |
| 57211 | 17429-5V000 | Pin-Hinge |
| 57212 | 46123-5V000 | Pin-Clevis |
| 57214 | 57208-AD000 | Bracket-Hanger, Spare Tire |
| 57214 | 57208-AD010 | Bracket-Hanger, Spare Tire |
| 57270 | 57220-AD000 | Support-Spare Tire Carrier, Upper |
| OEM | Part name | Category |
|---|---|---|
| 17429-5V000 | Pin-Hinge | Spare tire hanger (2001-08-01 ~ ; W) |
| 46123-5V000 | Pin-Clevis | Spare tire hanger (2001-08-01 ~ ; W) |
| 57208-AD000 | Bracket-Hanger, Spare Tire | Spare tire hanger (2001-08-01 ~ ; W) |
| 57208-AD010 | Bracket-Hanger, Spare Tire | Spare tire hanger (2001-08-01 ~ ; W) |
| 57210-AD000 | Hanger-Spare Tire | Spare tire hanger (2001-08-01 ~ ; W) |
| 57220-AD000 | Support-Spare Tire Carrier, Upper | Spare tire hanger (2001-08-01 ~ ; W) |
| 57235-AD000 | Bolt-Clamp | Spare tire hanger (2001-08-01 ~ ; W) |
